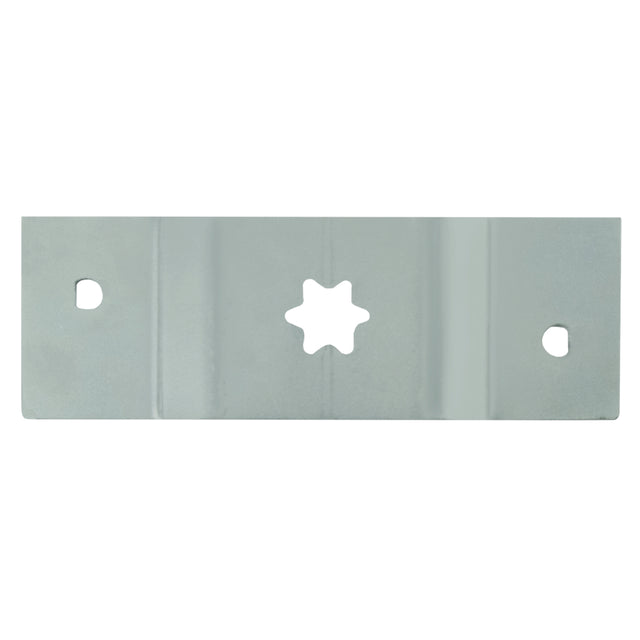

CUB CADET MTD MASSEY FERGUSON & TROY BILT 50"

Description: Non-Genuine Cub Cadet, Massey Ferguson, MTD, Troy Bilt Selected 50" Cut Stepped,

Swing Back Blade Conversion Carrier Bar

Length: (in) 7.244"

Length: (mm) 184 mm

Centre Hole Type: 6-Point Star

Deck (inches) 50"

Deck (mm) 1270 mm

Fits: 50" (1270 mm) cut Cub Cadet (model 17AF9BK330, 20 hp Hydro, year 2008) and i1050

Z-Turn ride-on (model 17AF9BKP330, 20 hp year 2008) ride-on lawn mower models and

RZT50 (model 17A12ACP709, 17 hp year 2007) zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 composite bars required for 50" cut

Fits: 50" (1270 mm) cut Massey Ferguson selected models including MF 50-23 SD ride-on

lawn mower models and MF 50-22 ZT zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 composite bars required for 50" cut

Fits: 50" (1270 mm) cut MTD Yardman deep deck models 2004 onwards including MTD Yardman

(model 13AP604P371, 23 hp Autodrive year 2008) ride-on lawn mower models.

Qty required per unit: 3 composite bars required for 50" cut

Fits: 50" (1270 mm) cut Troy Bilt selected models including Troy Bilt (model

13AP60TP766, 23 hp Autodrive year 2008) ride-on lawn mower models.

Qty required per unit: 3 composite bars required for 50" cut

Australian Made: Yes

Features: • Converts units which came standard off the production line with bar blades and

allows them to be fitted with swing back blades. Please order the swing back blades

separately from the options listed below.

• Step Height: 1/2" (12.7 mm)

• "D" hole to "D" hole: 5.784" (146 mm)

Standard Pack Quantity: 1

Note: All blade carriers are sold as singles, order the quantity required to make up a

set.

Please Note: Use with BRC5543 x 3 qty swing back blade and bolt combo's or BLS3653 x 3 qty swing

back blade sets and BBN3722 x 3 qty bolt sets. For a standard bar blade option use

our BLR7572 x 3 qty, for a Toothed Mulcher bar blade option use our BLR6925 x 3 qty

.

Brand: Cub Cadet - Non Genuine, MTD Non Genuine, Massey Ferguson Non Genuine, Troy Bilt Non Genuine,

Product Line: bar - blade carrier, blade holder bar, composite blade carrier bar, blade carrier

bar, swing back blade carrier bar,
