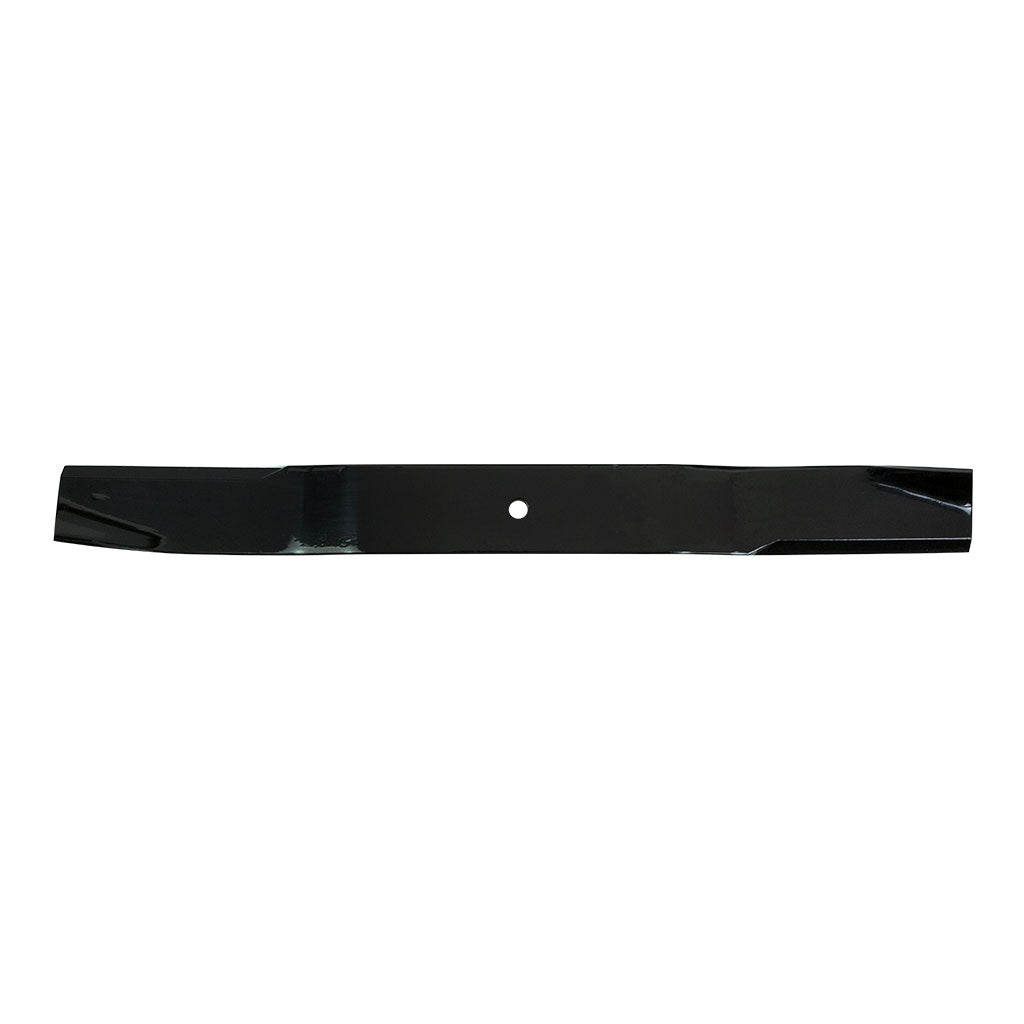

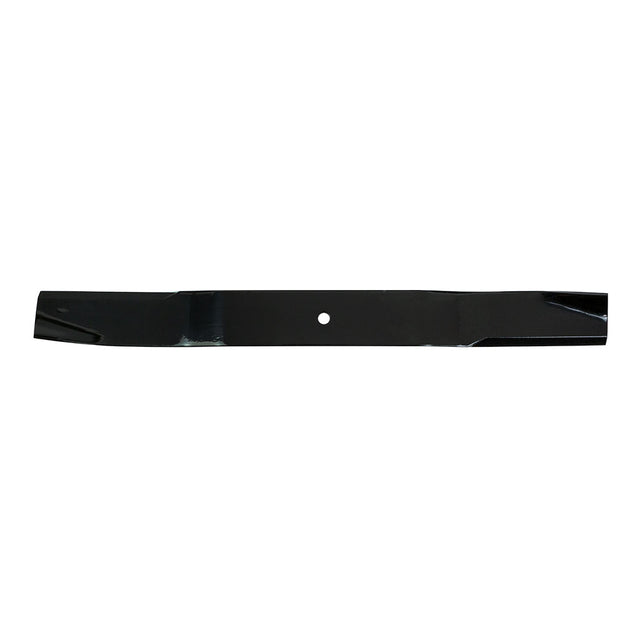

TORO BAR BLADE STD / STEP 3 X 72" CUT , REAR DISCHARGE

GASPARES  |  SKU: 94-073

$45.87
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

TORO BAR BLADE STD / STEP 3 X 72" CUT , REAR DISCHARGE SUITS Z597-D Z MASTER

Specifications

Description: Non-Genuine TORO Standard Type Bar Blade Suits 72" Cut Rear Discharge And Guardian Recycler Decks

Replaces OEM: TORO: 108-1958, 108-1958-03, 121-5347-03,

Centre Hole Diameter: (inches) 1/2"

Centre Hole Diameter: (mm) 12.7 mm

Deck (inches) 72" Cut.

Deck (mm) 1828 mm Cut.

Deck (cm) 182.8 cm Cut.

Length: (in) 25 3/16"

Length: (mm) 639.76 mm

Thickness: (inches) .250"

Thickness: (mm) 6.35 mm

Width: (inches) 2 1/2"

Width: (mm) 63.5 mm

Centre Hole Type: Round

Fits: 72" (1828 mm) cut TORO Groundsmaster 360, 3280-D, 3320, 3400, 7200 and 7210 traction unit models when fitted with model number 31335 Guardian Recycler decks or model numbers 30303 and 30353 rear discharge decks and Z Master Z597-D (model 74281TE) when fitted with a 72" (1828 mm) cut rear discharge deck.

Qty required per unit: 3 blades required for 72" cut.

Features: A standard bar blade, stepped and fluted, right hand cut.

1/2" Step (Offset).

1 3/8" Flute (Lift).

Standard Pack Quantity: 1

Note: All blade bars are sold as singles, order the quantity required to make up a set.

Please Note: 72" cut side discharge decks use a different blade. When fitted with side discharge decks many of these applications including models 3280-D and 3320 use our part number R110-0621-03.

Brand: TORO - Non Genuine,

Product Line: Bar Blade, Blade - Bar,

Installation

We are currently updating all installation instructions so please contact us if you need installation assistance whilst we collate additional information.
