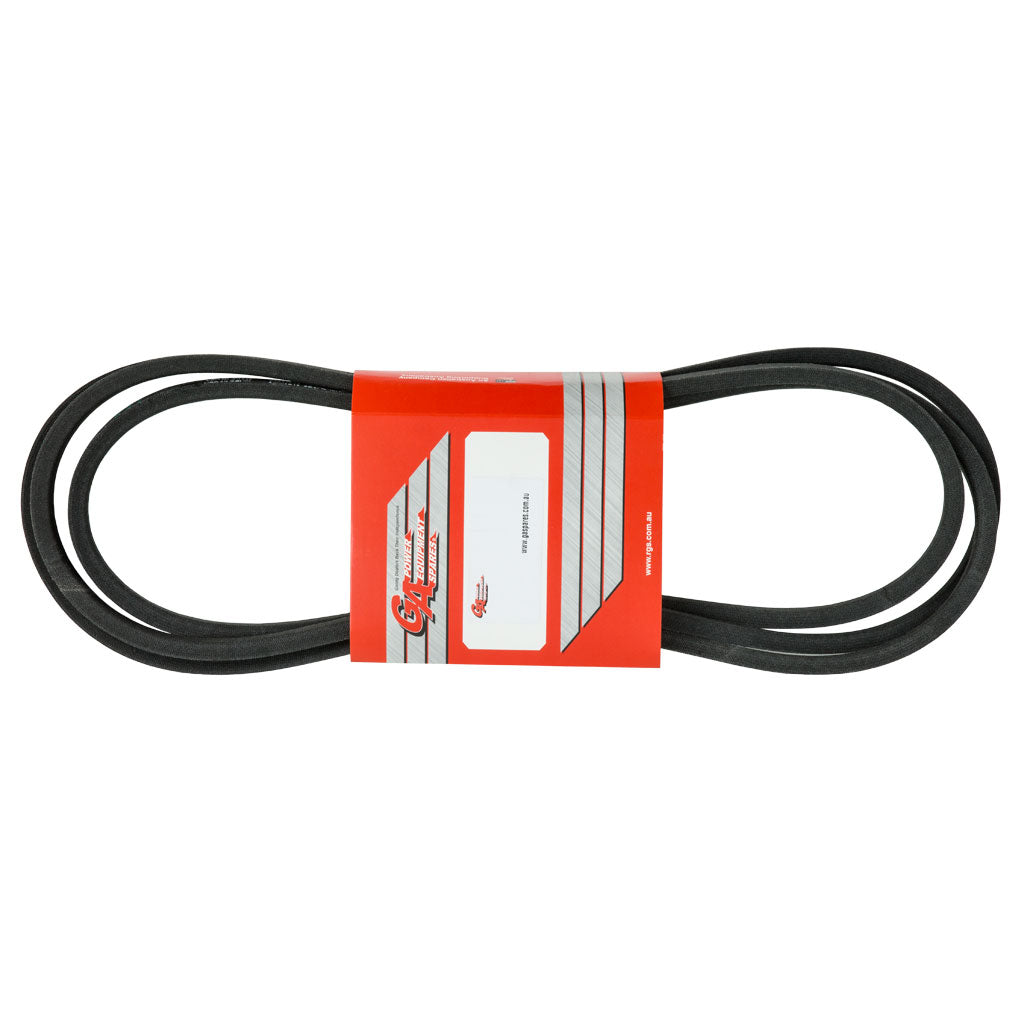

Description: Non-Genuine Cub Cadet, Masport, Rover 48" Cut, Cutter Deck Belt
Replaces OEM: Cub Cadet: 490-501-C093, 754-05012, 754-05012A, 954-05012, 954-05012A,
Masport: 490-501-C093, 754-05012, 754-05012A, 954-05012, 954-05012A,
Rover: 490-501-C093, 754-05012, 754-05012A, 954-05012, 954-05012A,
Deck (inches) 48" Cut.
Deck (mm) 1220 mm Cut.
Deck (cm) 122 cm Cut.
Length Outside Circumference: 136.692"
Length Outside Circumference: 3472 mm
Width: (inches) 1/2" (Top of belt).
Width: (mm) 12.70 mm (Top of belt).
Height: (inches) 0.393".
Height: (mm) 10 mm.
Fits: 48" (1220 mm) cut Cub Cadet Pro Z 100 EFI 148-S [100 48, EFI 148-S, KH 148S , 148S]
(model 53AWEFJF330 years 2016 to 2022), Z-Force LX 48 [LX48 KH FAB] (model
17ASDAUB330 years 2017 to 2020) and Z-Force SX48 [SX 48, SX 48 KH FAB, SX 48 KW
FAB, SX-48] (models 17AIDGJB330 year 2018, 17ASDGJB330 years 2018 to 2020
and47AIDGJB330 years 2021 to 2022) zero turn radius (ZTR) ride-on models as the
cutter deck belt.
Belt Position & Size: Cutter Deck Belt (1/2" Wide x 136.692" O.C).
Qty required per unit: 1 required for 48" cut.
Fits: 48" (1220 mm) cut Masport ZVT 4800 [ZVT4800, 24V/48SD] (model 552905 years 2015 to
2020) zero turn radius (ZTR) ride-on models as the cutter deck belt.
Belt Position & Size: Cutter Deck Belt (1/2" Wide x 136.692" O.C).
Qty required per unit: 1 required for 48" cut.
Fits: 48" (1220 mm) cut Rover Z-Force LZ48 [LZ 48] (models 17AFDAGV333 years 2014 and
17ASDAGV333 year 2014) zero turn radius (ZTR) ride-on models as the cutter deck
belt.
Belt Position & Size: Cutter Deck Belt (1/2" Wide x 136.692" O.C).
Qty required per unit: 1 required for 48" cut.
Standard Pack Quantity: 1
Footnote: Our premium quality belts are manufactured with high-strength Aramid fibre cords
for heavy duty applications and severe duty cycles. These belts have a drier cover
fabric that is designed to increase flexibility and withstand severe clutching
action, bending or twisting, heavy loads and backside idler applications. Oil and
heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.
Brand: Cub Cadet Non-Genuine, Masport Non-Genuine, Rover Non-Genuine,
Product Line: Belt - Cutter Deck, Cutter Deck Belt, Deck Belt, V-Belt,
