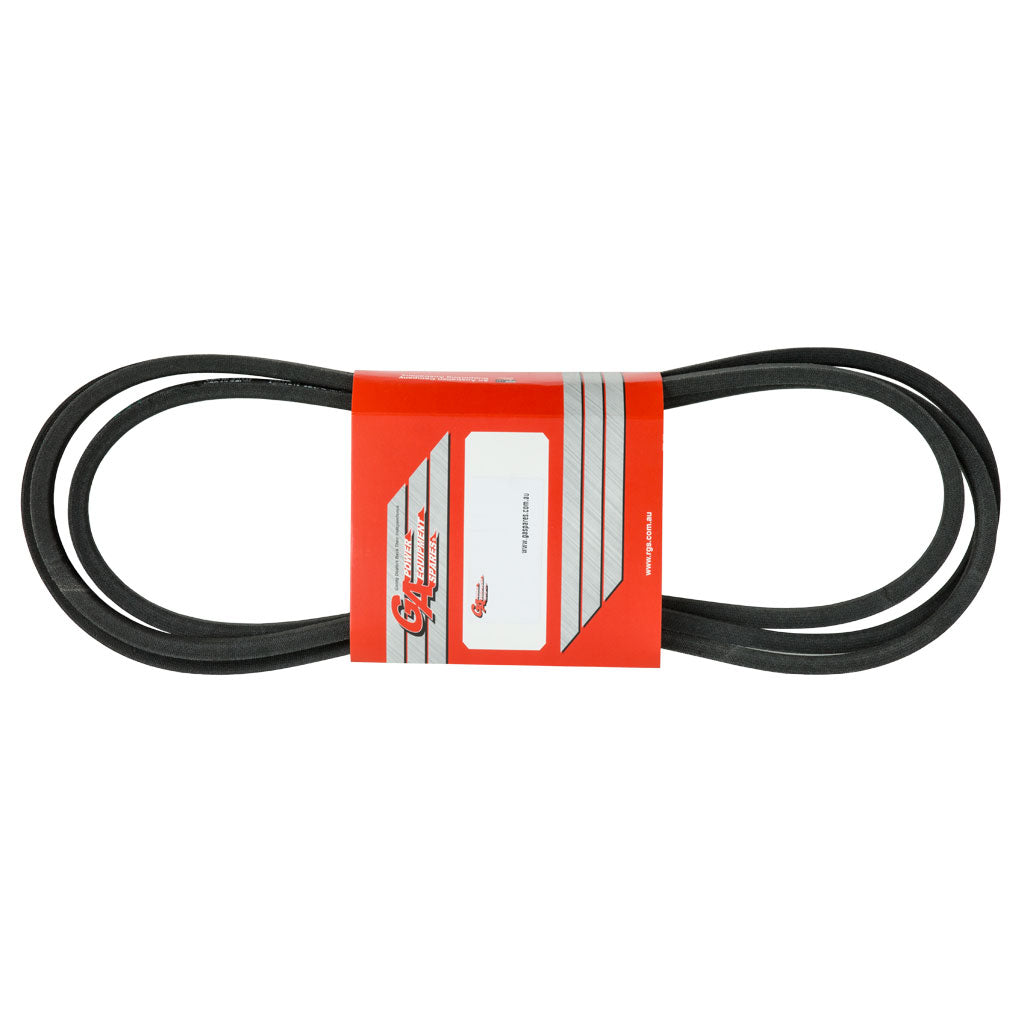

Description: Non-Genuine Rover Rancher 38", 42" & 46" Cut, Troy Bilt Horse XP 46" Cut
Transmission Belt
Replaces OEM: Rover 754-04252, 954-04252
Troy Bilt 754-04252, 954-04252
Deck (inches) 38", 42", 46" Cut
Deck (mm) 965 mm, 1067 mm, 1168 mm Cut
Deck (cm) 96.5 cm, 106.7 cm, 116.8 cm Cut
Length Inside Circumference: ( 82.01" I.C
Length Inside Circumference: ( 2083.05 mm I.C
Length Outside Circumference: 84.01" O.C
Length Outside Circumference: 2134 mm O.C
Width: (inches) 0.511"
Width: (mm) 13 mm
Fits: 38" (965 mm) cut Rover Rancher 547/38 (model 13A879WF333 years 2016 to 2019)
ride-on lawn mower models as the transmission belt.
Belt Position & Size: Transmission Drive Belt (0.511" Wide x 84.01" O.C)
Product Line Notes: For the above model use in conjunction with our cutter deck belt part number
BEL954-04062 (which replaces OEM's: 754-04062 & 954-04062).
Fits: 42" (1067 mm) cut Rover Rancher 547/42 (models 13AX79WS333 year 2016 and
13A879WS333 years 2016 to 2020) ride-on lawn mower models as the transmission belt.
Belt Position & Size: Transmission Drive Belt (0.511" Wide x 84.01" O.C)
Product Line Notes: For the above models use in conjunction with our cutter deck belt part number
BEL954-04060 (which replaces OEM's: 754-04060 & 954-04060).
Fits: 46" (1168 mm) cut Rover (model 13A879WT333 year 2015) ride-on lawn mower models as
the transmission belt.
Product Line Notes: For the above model use in conjunction with our cutter deck belt part number
BEL68103 (which replaces OEM's: 754-04219 & 954-04219).
Fits: 46" (1168 mm) cut Troy Bilt Horse XP (models 13WX79KT011 year 2011 and 13AX79KT309
years 2012 to 2016) ride-on lawn mower models as the transmission belt.
Product Line Notes: For the above models use in conjunction with our cutter deck belt part number
BEL68103 (which replaces OEM's: 754-04219 & 954-04219).
Standard Pack Quantity: 1
Footnote: Our premium quality belts are manufactured with high-strength Aramid fibre cords
for heavy duty applications and severe duty cycles. These belts have a drier cover
fabric that is designed to increase flexibility and withstand severe clutching
action, bending or twisting, heavy loads and backside idler applications. Oil and
heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.
Brand: Rover Non-Genuine, Troy Bilt Non-Genuine,
Product Line: Belt, drive belt, motion drive belt, transmission belt, v-belt,
