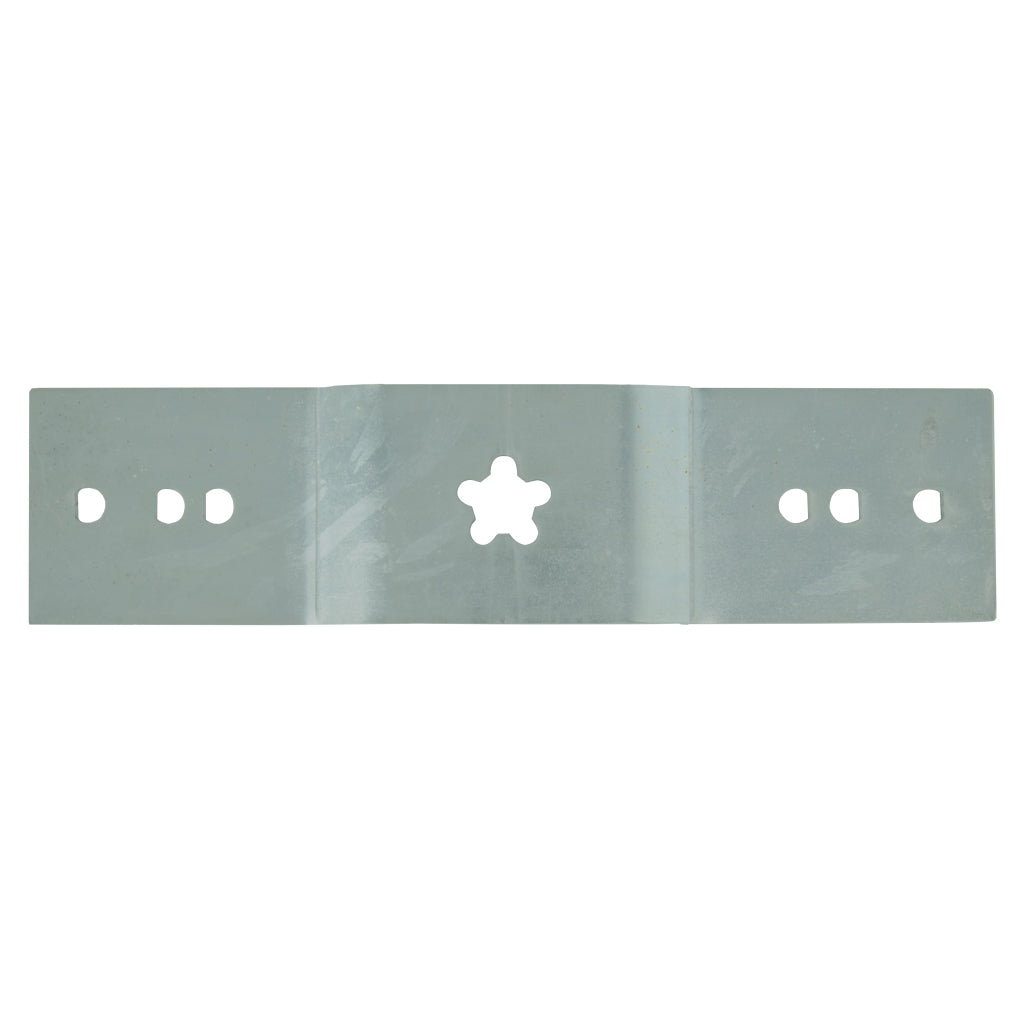

Description: Non-Genuine Husqvarna Selected 36", 38", 42", 46" And 54" Cut Stepped, 5 Point Star
Hole, Swing Back Blade Conversion Carrier Bar
Centre Hole Type: 5-Point Star
Fits: 36" (915 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
centre hole blade.
Qty required per unit: 2 bars required for 36" cut
Fits: 38" (965 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
centre hole blade.
Qty required per unit: 2 bars required for 38" cut
Fits: 42" (1067 mm) cut Husqvarna selected ride-on lawn mower models using a standard
blade system with a 5-point star centre hole blade.
Qty required per unit: 2 bars required for 42" cut
Fits: 42" (1067 mm) cut Husqvarna TS242 (model 96041038400, year 2015) side discharge
lawn tractors as a swing back blade carrier replacement option to the Rapid Release
bar blades (please read the product note below for a full list of components
required).
Qty required per unit: 2 bars required for 42" cut
Fits: 46" cut Husqvarna TS246 (model 96041038500, year 2015) side discharge lawn tractors
as a swing back blade carrier replacement option to the Rapid Release bar blades
(please read the product note below for a full list of components required).
Qty required per unit: 2 bars required for 46" cut
Fits: 54" (1372 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
centre hole blade.
Qty required per unit: 3 bars required for 54" cut
Features: • Converts units which came standard off the production line with bar blades and
allows them to be fitted with swing back blades. Please order the swing back blades
separately from the options listed below.
• Stepped carrier bar
• Inner "D" holes: 6.181" (157 mm)
• Middle "D" holes: 7.283" (185 mm)
• Outer "D" holes: 9.055" (230 mm)
Standard Pack Quantity: 1
Note: All blade carriers are sold as singles, order the quantity required to make up a
set.
Please Note: For standard 36", 38" & 42" cut Lawn Tractor models use with our BLS3653 x 2 qty
blade sets and BBN3722 x 2 qty bolt sets or for a blade and bolt combo option use
our BRC5543 x 2 qty.
Or
For 54" cut: Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets,
or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
Or
For Rapid Release 42" cut models the components required to replace the Rapid
Release bar blade system are -
• Use BLH409 blade carriers x 2 qty
• Use BLH7733 mounting bolt and washer x 2 qty
• Use BLS3653 blade sets x 2 qty
• Use BBN3722 bolt sets x 2 qty
• Or use our blade and bolt combo pack option BRC5543 x 2 qty
(The above components can be used as a swing back blade option to replace Husqvarna
Rapid Release bar blade OEM: 580 92 11-01)
Please Note: For this application please assemble blades and bolts using the
outside blade mounting holes of the blade carrier.
**Please also note: to replace the rapid release bar blade system with the swing
back blade and blade carrier systems above it is necessary to remove the rapid
release mounting system components and return to the conventional bolt on mounting
system for the carrier bar.**
Or
For Rapid Release 46" cut models the components required to replace the Rapid
Release bar blades are -
• Use BLH409 blade carriers x 2 qty
• Use BLH7733 mounting bolt and washer x 2 qty
• Use BLS3817 blade sets x 2 qty
• Use BBN3722 bolt sets x 2 qty
• Or use our blade and bolt combo pack option BRC5544 x 2 qty
(The above components can be used as a swing back blade option to replace Husqvarna
Rapid Release bar blade OEM: 581 04 39-01)
Please Note: For this application please assemble blades and bolts using the middle
blade mounting holes of the blade carrier.
**Please also note: to replace the rapid release bar blade system with the swing
back blade and blade carrier systems above it is necessary to remove the rapid
release mounting system components and return to the conventional bolt on mounting
system for the carrier bar.**
Brand: Husqvarna - Non Genuine
Product Line: Blade, carrier
