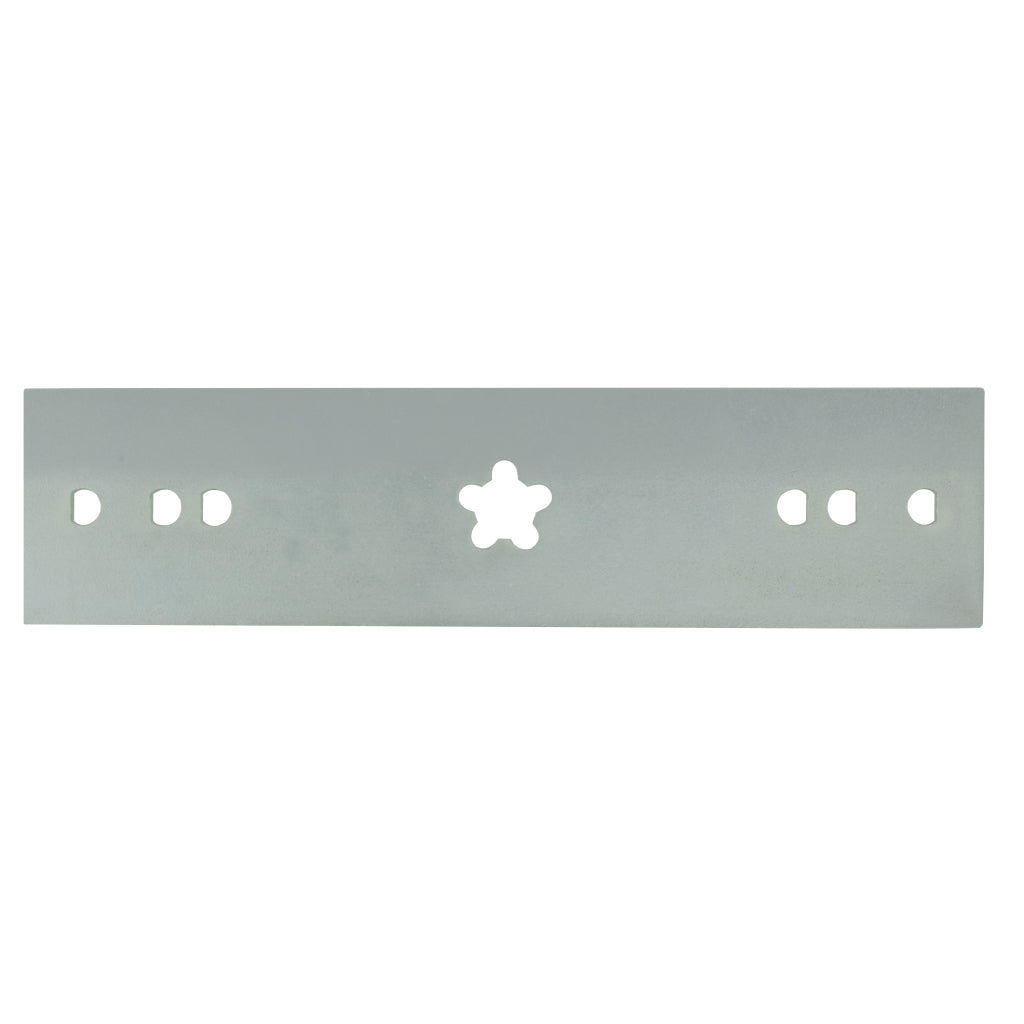

Description: Non-Genuine Craftsman, Husqvarna Selected 36", 38", 42" And 46" Cut Flat, 5 Point
Star Hole, Swing Back Blade Conversion Carrier Bar
Centre Hole Type: 5-Point Star
Fits: 46” (1168 mm) cut Craftsman selected two blade deck models using 5-point star
mounting hole blades, including but not limited to YT3000 (models 28924) and YT4000
(models 28857 and 28928) ride-on lawn mower models.
Qty required per unit: 2 bars required for 46” cut (2 blade deck models)
Fits: 36" (915 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
centre hole blade.
Qty required per unit: 2 bars required for 36” cut
Fits: 38" (965 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
centre hole blade.
Qty required per unit: 2 bars required for 38” cut
Fits: 42" (1067 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
centre hole blade.
Qty required per unit: 2 bars required for 42" cut
Fits: 46" (1168 mm) cut Husqvarna selected two blade deck model ride-on lawn mowers using
a 5-point star centre hole blade including but not limited to YTH2546T (2007
onwards) models.
Qty required per unit: 2 bars required for 46” cut (2 blade deck models)
Features: • Converts units which came standard off the production line with bar blades and
allows them to be fitted with swing back blades. Please order the swing back blades
separately from the options listed below.
• Inner "D" holes: 6.259" (159 mm)
• Middle "D" holes: 7.362" (187 mm)
• Outer "D" holes: 9.133" (232 mm)
Note: All blade carriers are sold as singles, order the quantity required to make up a
set.
Please Note: For 46" cut: For a high flute blade option use with our BLS3817 x 2 qty blade sets
and BBN3722 x 2 qty bolt sets, or for a high flute blade and bolt combo pack option
use our BRC5544 x 2 qty.
For a low fute blade option use with our BLS6590 x 2 qty blade sets and BBN3722
bolt sets, or for a low flute blade and bolt combo pack option use our BRC2089 x 2
qty.
Please note, assemble the blades in the centre of the three mounting hole options.
This blade system provides a slightly lower cut and is exactly the same length as
our bar blades BLR6877 and BLR7490 (Replaces OEM: 405380). Please note, this swing
back blade set up will not fit the 46” cut Craftsman PYT9000 model 28888 which is
a premium featured (Cub Cadet based) Sears manufactured ride on.
Or
For 36", 38" & 42" cut: Use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty
bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty.
Or
For 46" cut: For a high flute blade option use with our BLS3817 x 2 qty blade sets
and BBN3722 x 2 qty bolt sets, or for a high flute blade and bolt combo pack option
use our BRC5544 x 2 qty.
For a low fute blade option use with our BLS6590 x 2 qty blade sets and BBN3722 x 2
qty bolt sets, or for a low flute blade and bolt combo pack option use our BRC2089
x 2 qty.
Please note, assemble the blades in the centre of the three mounting hole options.
This blade system provides a slightly lower cut and is exactly the same length as
our bar blades BLR6877 and BLR7490 (Replaces OEM: 532 40 53-80).
Brand: Craftsman - Non Genuine, Husqvarna - Non Genuine,
Product Line: Blade carrier bar - swing back, swing back blade conversion carrier bar,
