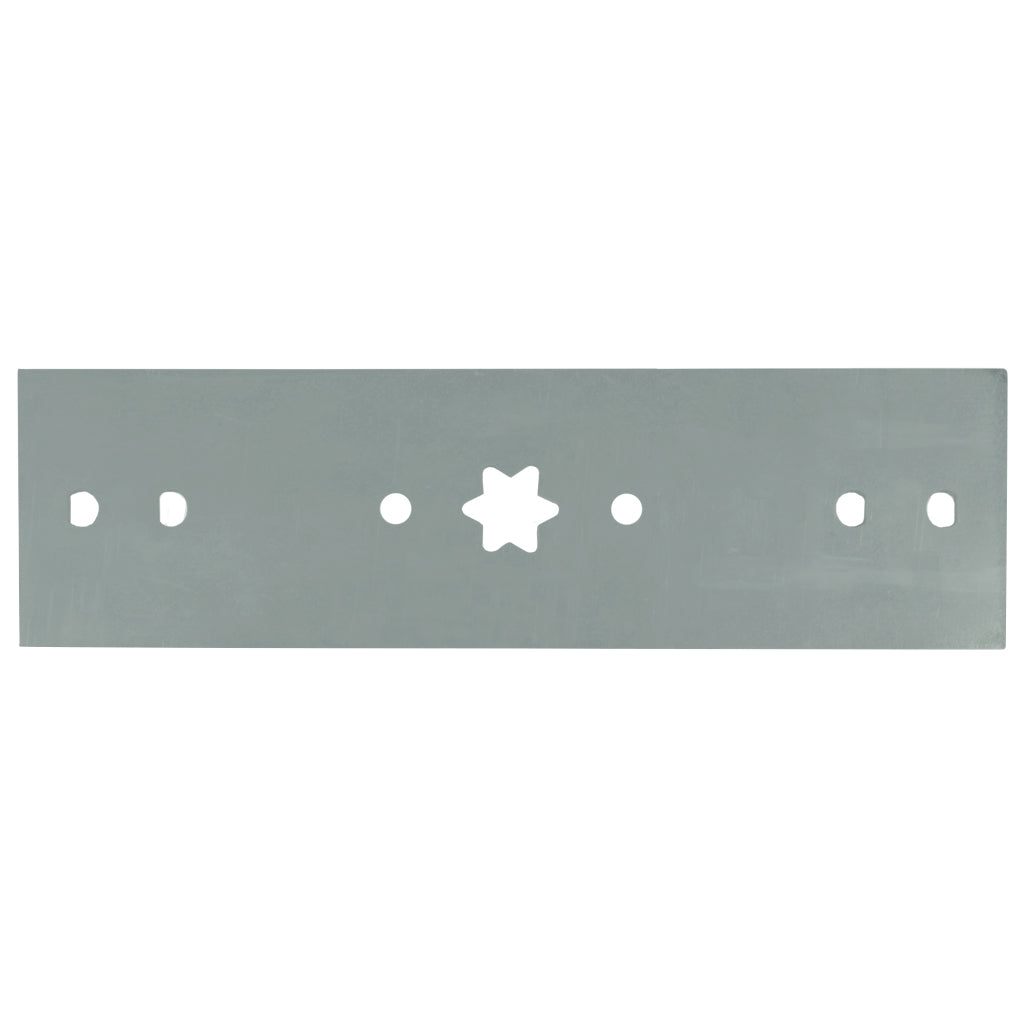

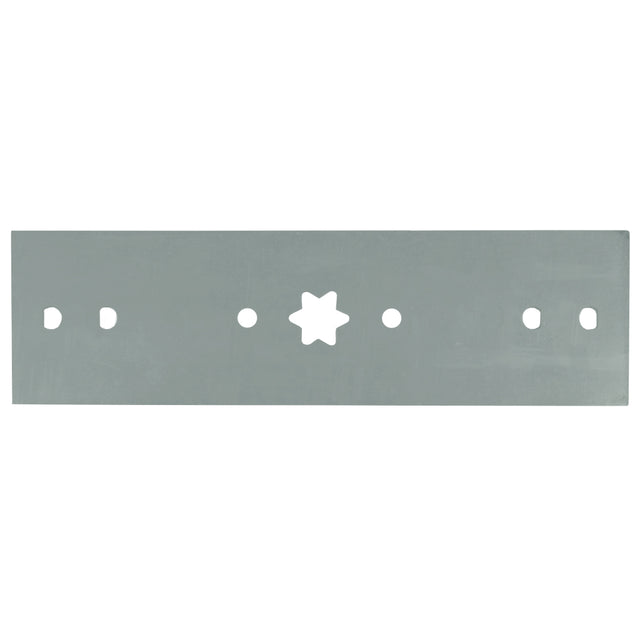

MTD BLADE BAR ADAPTOR 6-POINT STAR HOLE

Description: Non-Genuine MTD Selected 38" And 42" Cut, 6 Point Star Hole, Swing Back Blade

Conversion Carrier Bar

Centre Hole Type: 6-Point Star

Fits: 38" (965 mm) cut MTD selected ride-on lawn mower models using 6-point star centre

hole blades.

Qty required per unit: 2 bars required for 38" cut

Fits: 42" (1067 mm) cut MTD selected ride-on lawn mower models using 6-point star centre

hole blades.

Qty required per unit: 2 bars required for 42" cut

Features: • Converts units which came standard off the production line with bar blades and

allows them to be fitted with swing back blades. Please order the swing back blades

separately from the options listed below.

• Inner "D" holes: 7.362" (187 mm)

• Outside "D" Holes: 9.291" (236 mm)

Standard Pack Quantity: 1

Note: All blade carriers are sold as singles, order the quantity required to make up a

set.

Please Note: Use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty bolt sets, or for a

blade and bolt combo pack option use our BRC5543 x 2 qty.

Brand: MTD - Non Genuine,

Product Line: Blade carrier bar - swing back, swing back blade conversion carrier bar,
