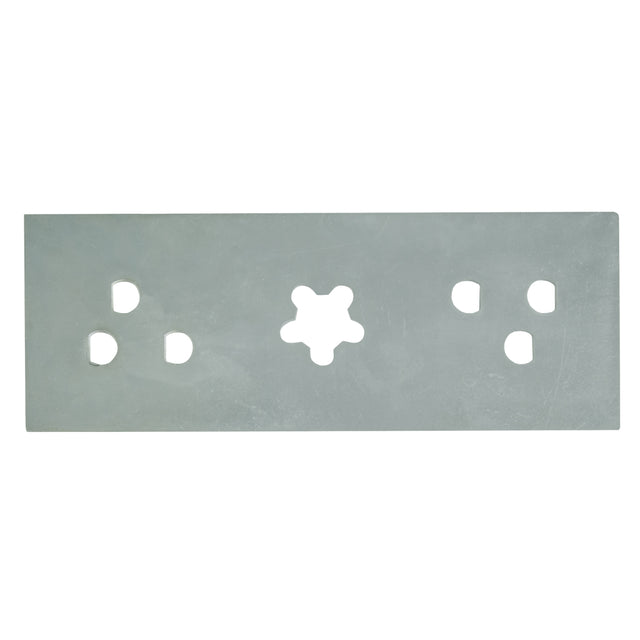

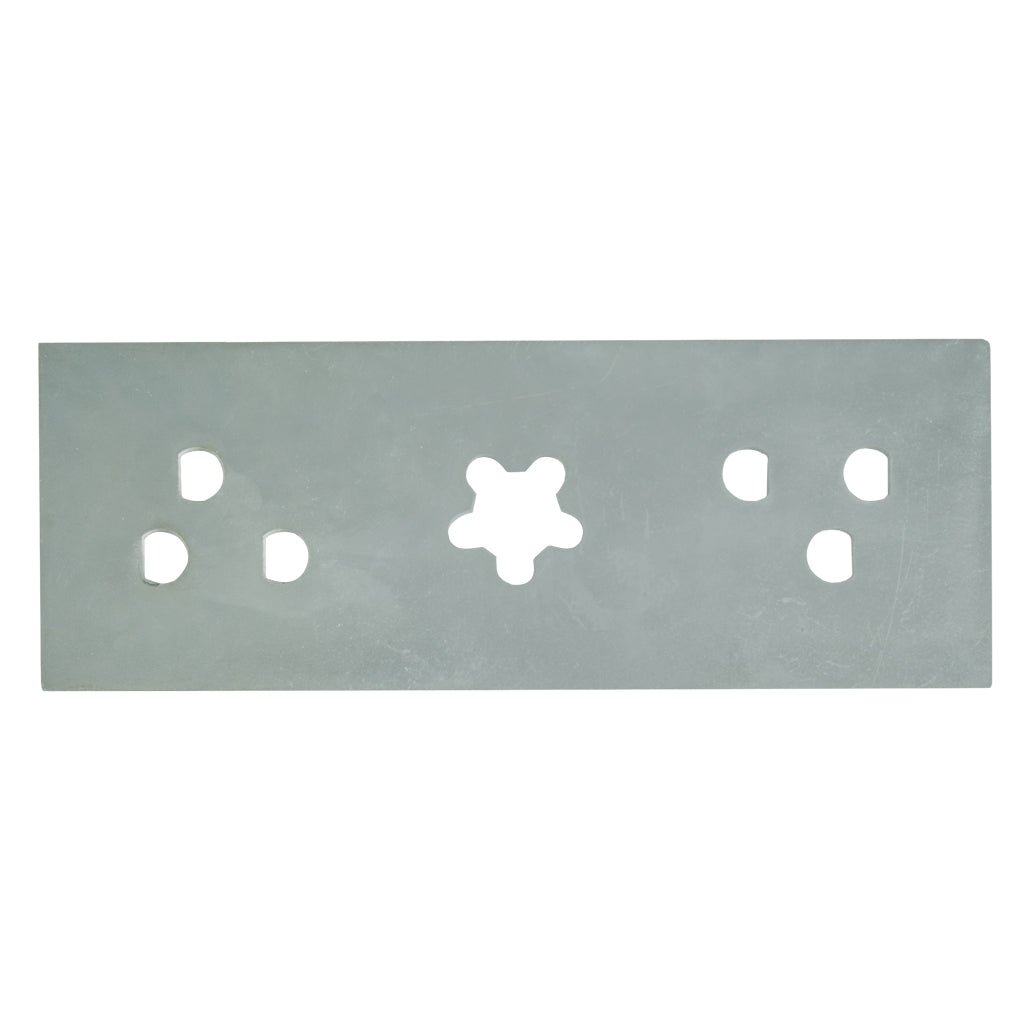

HUSQVARNA COMPOSITE BAR 5-POINT STAR HOLE SUITS

Description: Non-Genuine Husqvarna Selected 46", 48" And 50" Cut, 5 Point Star Hole, Swing Back

Blade Conversion Carrier Bar

Centre Hole Type: 5 point star

Fits: 46" (1168 mm) cut Husqvarna selected models including but not limited to YTH2546T

and YTH2546TD ride-on lawn mower models using a 5-point star centre hole blade.

Qty required per unit: 3 bars required for 46" cut (Fits 3 blade deck models only.)

Fits: 48" (1220 mm) cut Husqvarna selected models including but not limited to GTH2548XP,

YTH1848XP and YTH2148XP ride-on lawn mower models using a 5-point star centre hole

blade.

Qty required per unit: 3 bars required for 48" cut

Fits: 50" (1270 mm) cut Husqvarna selected front engine lawn tractor models.

Qty required per unit: 3 bars required for 50" cut

Features: • Converts units which came standard off the production line with bar blades and

allows them to be fitted with swing back blades. Please order the swing back blades

separately from the options listed below.

• Inner "D" holes: 3.307" (84 mm)

• Middle "D" holes: 4.645" (118 mm)

• Outside "D" holes: 5.196" (132 mm)

Standard Pack Quantity: 1

Note: All blade carriers are sold as singles, order the quantity required to make up a

set.

Please Note: Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets, or for a

blade and bolt combo pack option use our BRC5543 x 3 qty. Use the inside blade

mounting holes for 46” cut, (Fits 3 blade deck models only). Use the middle blade

mounting holes for 48” cut. Use the outer blade mounting holes for 50” cut.

Brand: Husqvarna - Non Genuine,

Product Line: Blade carrier bar - swing back, swing back blade conversion carrier bar,
