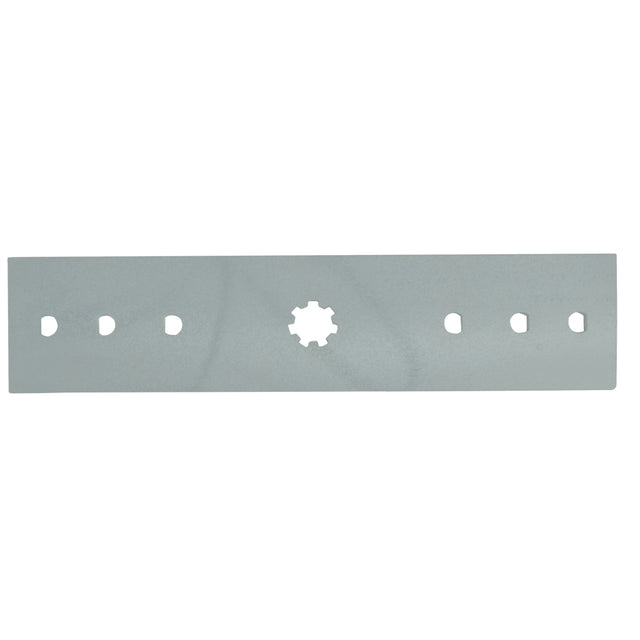

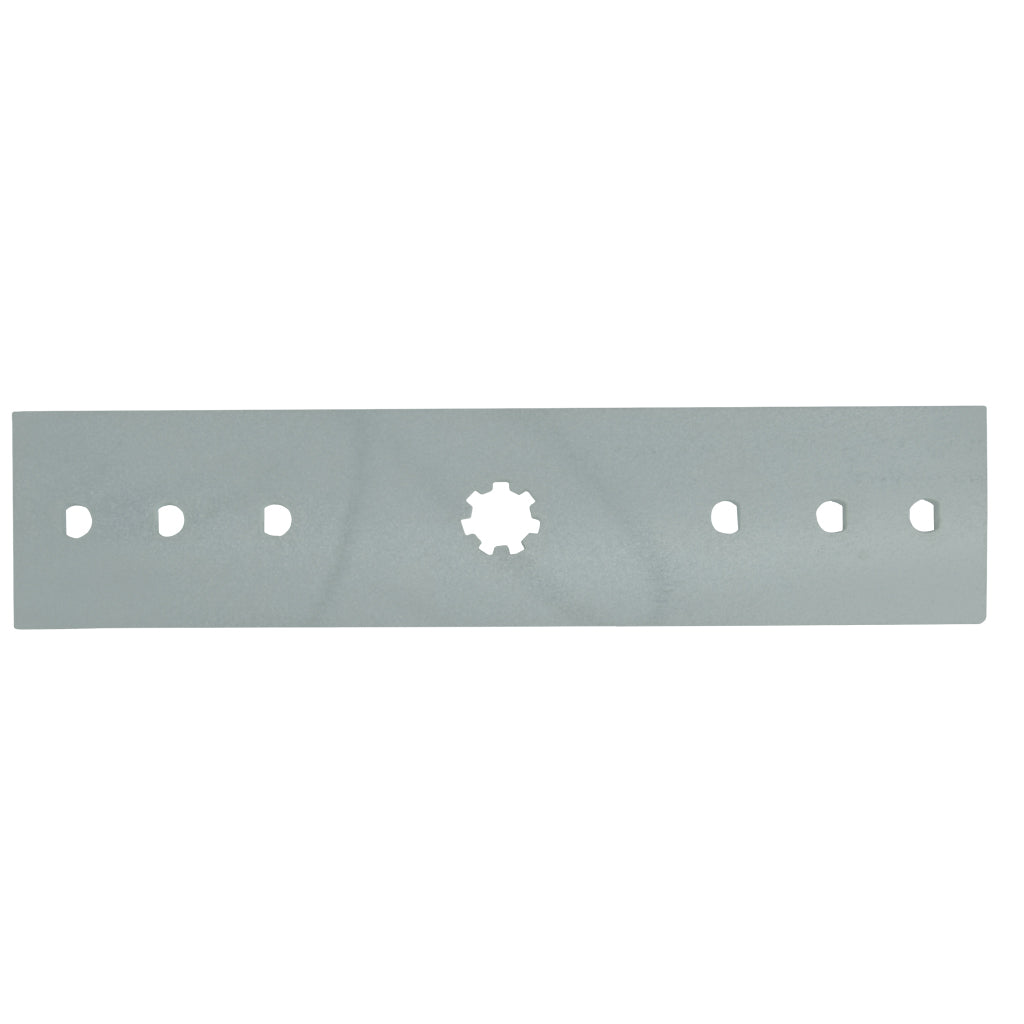

JOHN DEERE 38" 42" & 48" CUT BLADE BAR ADAPTOR

Description: Non-Genuine John Deere Selected 38", 42” And 48” Cut, 7 Point Star Swing Back

Blade Conversion Carrier Bar

Centre Hole Type: 7-Point Star

Fits: 38" (965 mm) cut John Deere selected ride-on lawn mower models including but not

limited to X300 model zero turn radius (ZTR) ride-on models.

Qty required per unit: 2 Bars required for 38" cut

Fits: 42" (1067 mm) cut John Deere selected models including but not limited to 102, 105,

115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models and

Z225 EZtrak™ Residential zero turn radius (ZTR) ride-on models.

Qty required per unit: 2 Bars required for 42" cut

Fits: 48" (1220 mm) cut John Deere selected models including but not limited to 145,

155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak™ Residential

zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 Bars required for 48" cut

Features: • Converts units which came standard off the production line with bar blades and

allows them to be fitted with swing back blades. Please order the swing back blades

separately from the options listed below.

• Inner "D" holes: 5" (127 mm)

• Middle "D" holes: 7.283" (185 mm)

• Outside "D" holes: 9.370" (238 mm)

Standard Pack Quantity: 1

Note: All blade carriers are sold as singles, order the quantity required to make up a

set.

Please Note: For 38” & 42" cut use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty

bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty.

Or

For 48” cut use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt

sets, or for a blade and bolt combo pack option use our BRC5543 x 3 qty.

Brand: John Deere - Non Genuine,

Product Line: Blade carrier bar - swing back, swing back blade conversion carrier bar,
