TORO FLAT COMPOSITE BAR X 2 FOR 42" CUT

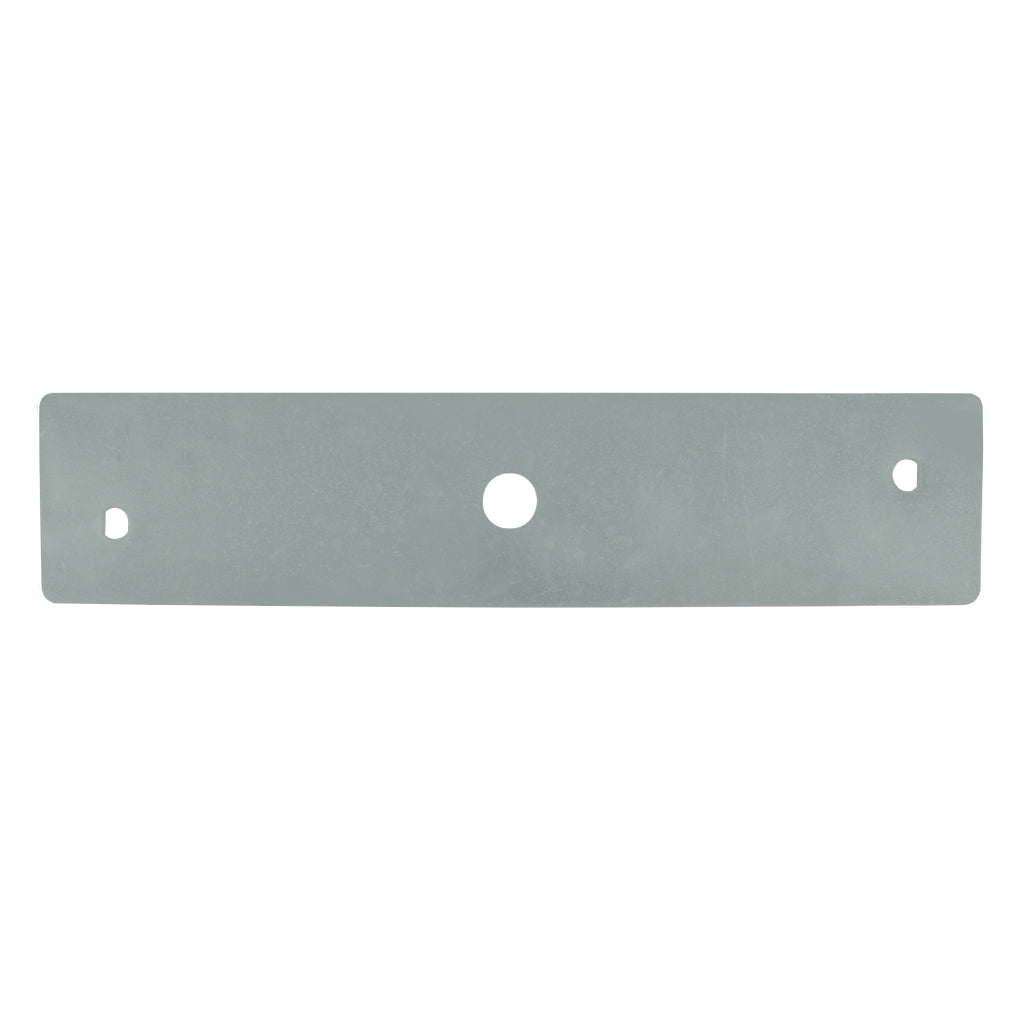

Description: Non-Genuine TORO® Selected 42" Cut Flat, Swing Back Blade Conversion Carrier Bar

Centre Hole Dia. (inches) 5/8"

Centre Hole Dia. (mm) 15.875 mm

Length: (in): 11 7/16"

Length: (mm): 290 mm

Thickness: (inches) 0.1968"

Thickness: (mm) 5 mm

Centre Hole Type: Round

Deck (inches) 42"

Deck (mm) 1067 mm

Fits: 42" (1067 mm) cut TORO® RZT420H (2008 to 2009 models), TimeCutter® Z420 (2005

models), Z4200 (2007 to 2010 models), Z4202 (2009 to 2010 models), Z530 (2006 to

2007 models) zero turn radius (ZTR) ride-on models.

Qty required per unit: 2 composite bars required for 42" cut.

Australian Made: Yes

Features: • Converts units which came standard off the production line with bar blades and

allows them to be fitted with swing back blades. Please order the swing back blades

separately from the options listed below.

• "D" hole to "D" hole: 9.574" (243.17 mm)

Standard Pack Quantity: 1

Note: All blade carriers are sold as singles, order the quantity required to make up a

set.

Please Note: Use with our part numbers BRC5543 x 2 qty swing back blade and bolt combo's or

BLS3653 x 2 qty swing back blade sets and BBN3722 x 2 qty bolt sets.

For a standard bar blade option use our BLR7544 x 2 qty, for a Copperhead™

mulcher bar blade option use our BLR8202 x 2 qty.

Brand: Toro - Non Genuine,

Product Line: bar - blade carrier, blade holder bar, composite blade carrier bar, blade carrier

bar, swing back blade carrier bar,
