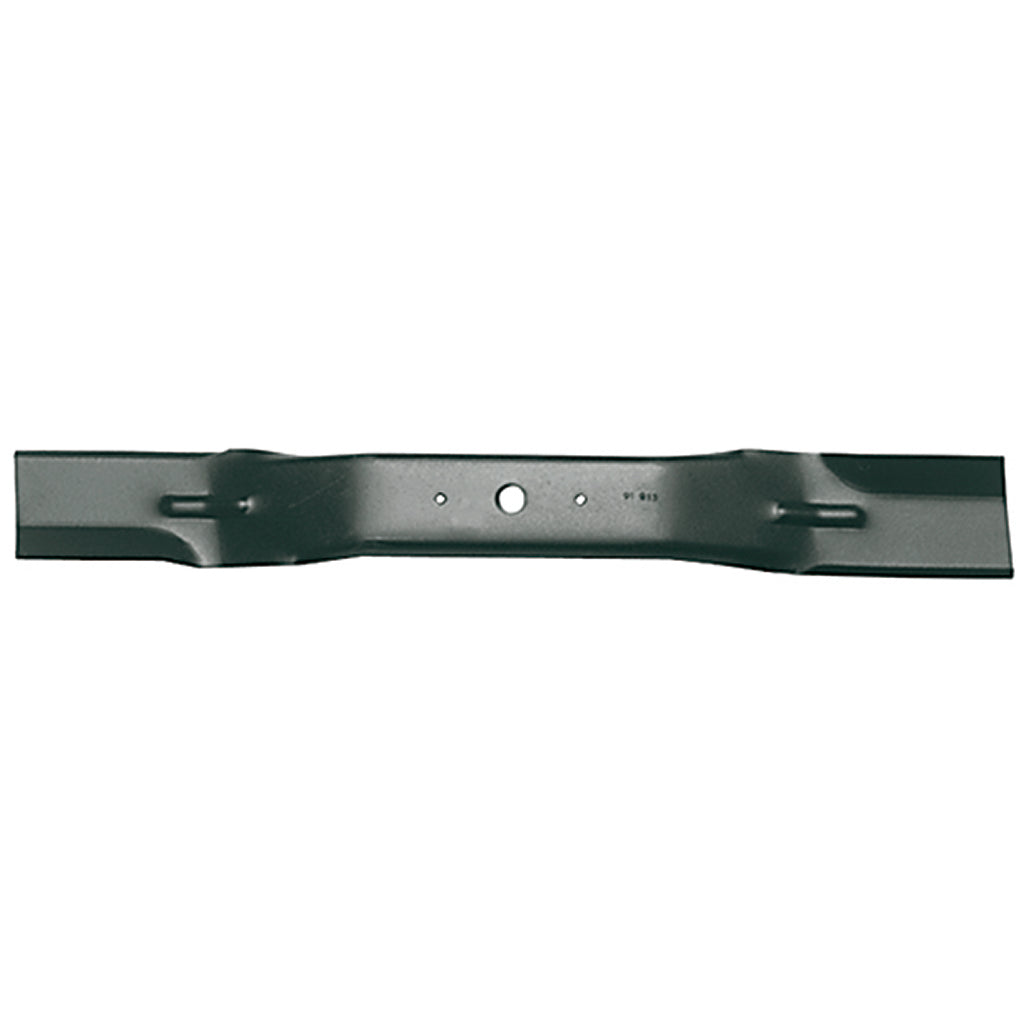

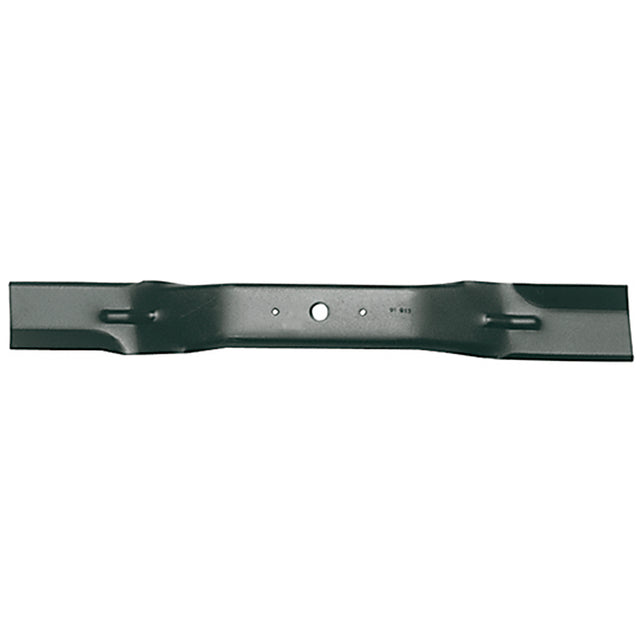

WALKER 22" BAR BLADE RIGHT HAND SUITS 42" & 62"

Description: Walker Bar Blade

Replaces OEM: Walker: 5705-3

Centre Hole Dia. (inches) 5/8

Centre Hole Dia. (mm) 16

Centre to Centre (inches) 3

Centre to Centre (mm) 76

Deck (inches) 42" & 62

Deck (mm) 1068mm & 1575

Deck (cm) 106cm & 157

Length: (in): 22

Length: (mm): 559

Outside Hole Diameter (inches) 3/16

Outside Hole Diameter (mm) 5

Width: (inches) 2 3/4

Width: (mm) 70

Centre Hole Type: Round

Fits: Walker side discharge 42" (1068mm) cutmodels.

Qty required per unit: Use 2 for 42" cut side discharge models.

Fits: Walker rear discharge 42" (1068mm) cut models.

Qty required per unit: Use 1 x BLR5811 & 1 x BLR5810 for 42" rear cut rear discharge models

Fits: Walker 62" (1575mm) cut models.

Qty required per unit: 3 blades required for 62" cut

Features: Stepped & fluted, right hand cut.

Standard Pack Quantity: 1

Note: All bar blades are sold as singles, order the quantity required to make up a set.

Please Note: Left hand side blade on rear discharge deck models.

Brand: Walker - Non Genuine

Product Line: Bar blade, ride-on blade,
