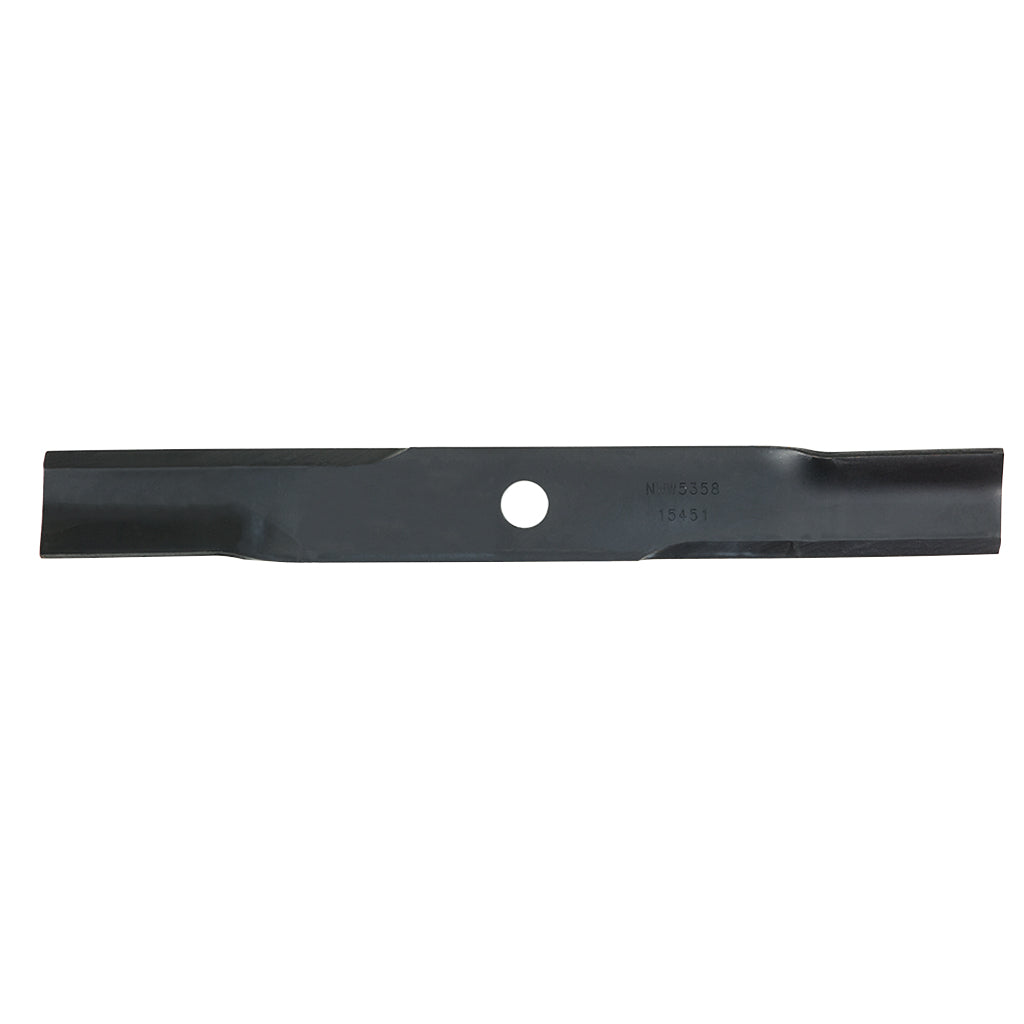

VICTA BLADE SUITS 48" FAB DECK

Description: Non-Genuine Simplicity, Snapper, Victa Standard Bar Blade

Replaces OEM: Simplicity: 1757303, 1757303YP, 1759055, 1759055YP

Snapper: 1757303, 1757303YP, 1759055, 1759055YP

Victa: 1757303YP, 1759055YP

Deck (inches) 48"

Deck (mm) 1220 mm

Hole Size: (inches) .800"

Hole Size: (mm) 20.32 mm

Length: (in): 16 1/2"

Length: (mm): 419.1 mm

Width: (inches) 2"

Width: (mm) 50.8 mm

Fits: 48" (1220 mm) cut Simplicity selected models.

Qty required per unit: 3 blades required for 48" cut

Fits: 48" (1220 mm) cut Snapper selected models.

Qty required per unit: 3 blades required for 48" cut

Fits: 48" (1220 mm) cut Victa side discharge fabricated mower deck models 1696538-00

(year 2014), 1696538-01 (year 2016), 1696661-00 (year 2015), 1696697-00 (year 2016)

and 1696792-00 (year 2016) as fitted to SPX2248 (tractor model 2691233-00 fitted

with fabricated deck model 1696538-00 year 2014) ride-on lawn mower models and VZT

25/48 (also called 300Z, tractor model 2691234-00) and ZTX2348, ZTX2348F (tractor

model 2691381-00) zero turn radius ride-on models.

Qty required per unit: 3 blades required for 48" cut

Features: Flat and fluted, right hand cut.

Standard Pack Quantity: 1

Note: All blade bars are sold as singles, order the quantity required to make up a set.

Brand: Simplicity Non-Genuine, Snapper Non-Genuine, Victa Non-Genuine ,

Product Line: Bar blade, blade bar, ride-on blade, side discharge blade, standard bar blade,
