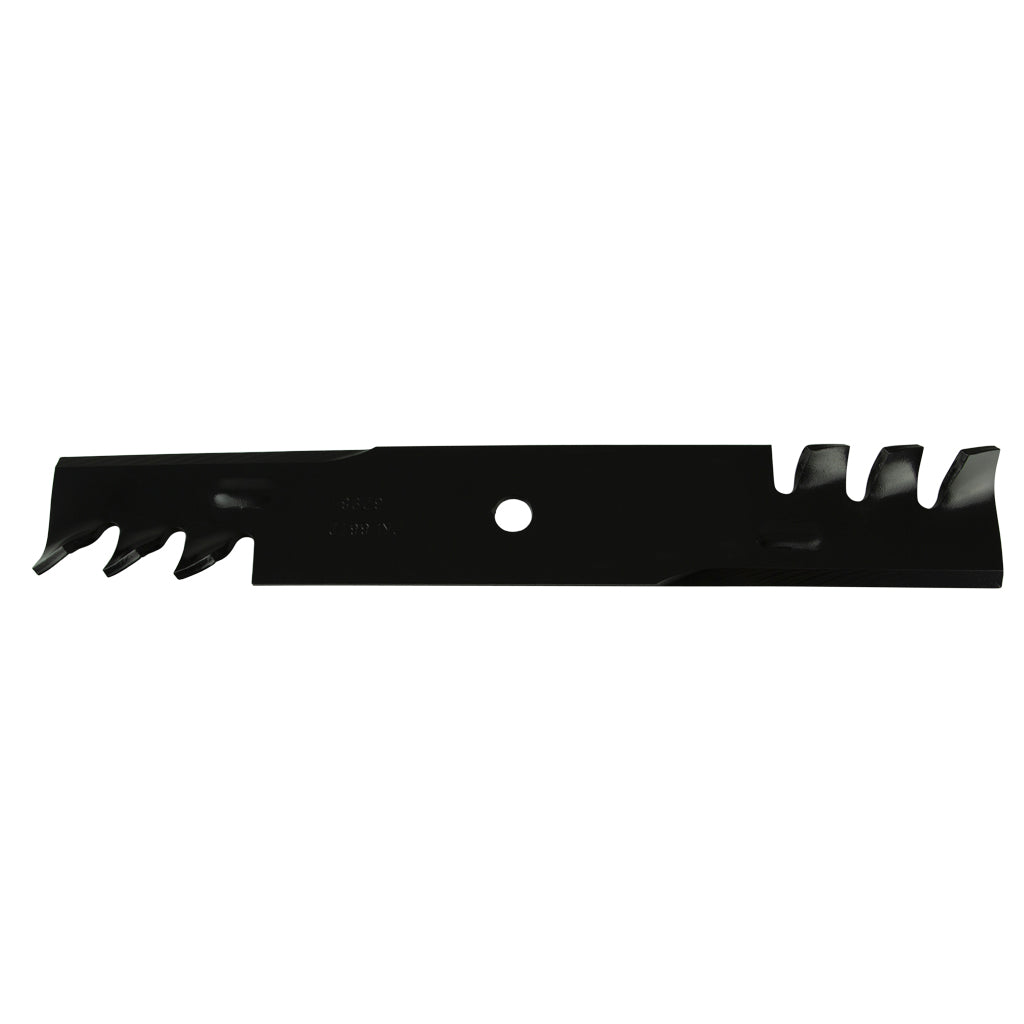

DIXON 17" COPPERHEAD MULCHER BAR BLADE

Description: Non-Genuine Dixon, GRAVELY, TORO 50" Cut Copperhead Mulcher Bar Blade

Replaces OEM: Dixon 539 12 64-31, 9258, 9265

GRAVELY 046998

TORO 113579, 113579-09

Centre Hole Diameter: (inches) 5/8"

Centre Hole Diameter: (mm) 15.875 mm

Length: (in) 17"

Length: (mm) 431.8 mm

Width: (inches) 2 1/2"

Width: (mm) 63.5 mm

Centre Hole Type: Round

Fits: 50” (1270 mm) cut Dixon 502, 503 early model zero turn radius ( ZTR) ride on

models.

Qty required per unit: 3 blades required for 50" cut

Fits: 50" (1270 mm) cut GRAVELY selected models.

Qty required per unit: 3 blades required for 50" cut

Fits: 50" (1270 mm) cut TORO side discharge dedicated deck (models 78445 and 78475 ser #

3900001 and onwards year 1993) as fitted to Proline 700 Series machines.

Qty required per unit: 3 blades required for 50" cut

Features: Copperhead mulcher blade, flat and fluted, right hand cut.

Standard Pack Quantity: 1

Note: All blade bars are sold as singles, order the quantity required to make up a set.

Please Note: Does not fit late model Dixons as the centre hole is different. This blade replaces

our Toothed Mulcher blade part number BLR6773.

Brand: Copperhead

Product Line: Copperhead Mulcher Bar Blade,
