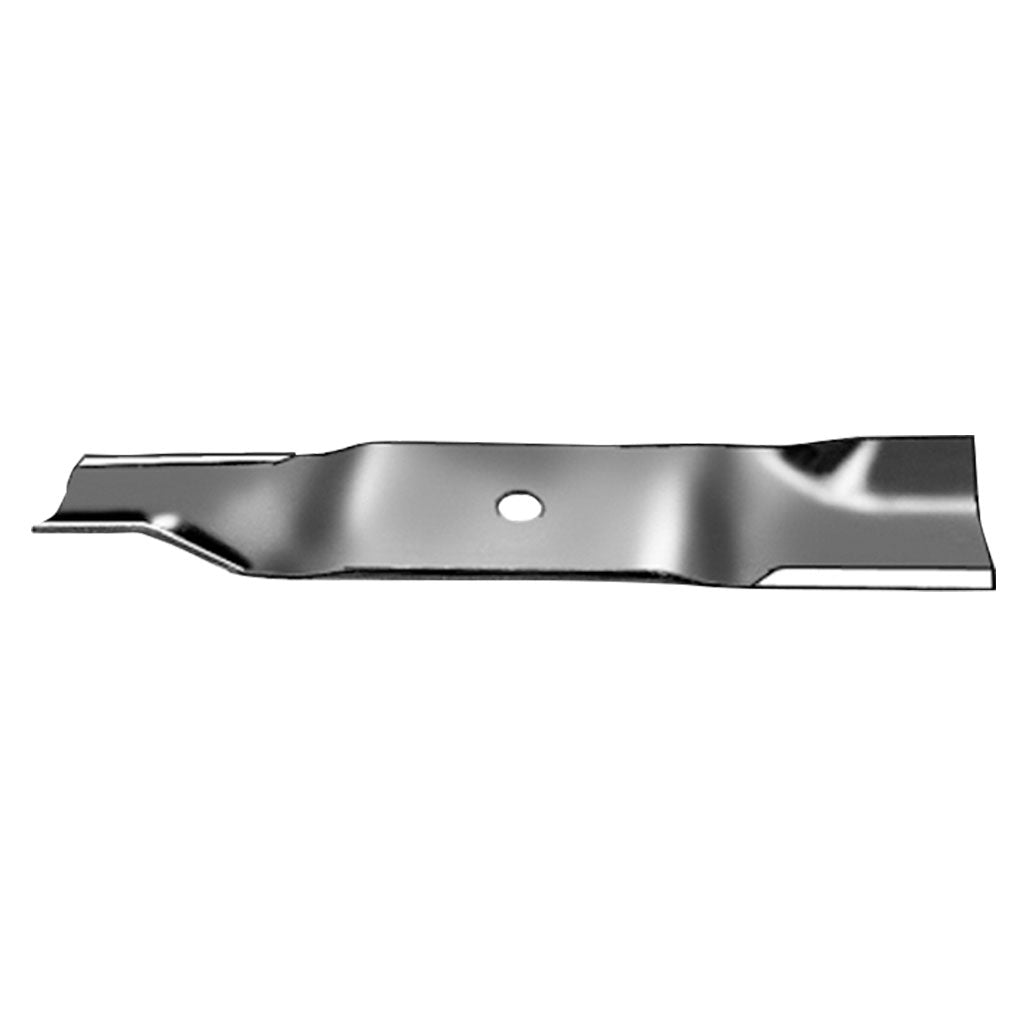

CUB CADET 19" BAR BLADE SUITS Z-FORCE & PRO-Z

Description: Non-Genuine Cub Cadet Pro Z & Z-Force 54" Cut, High Lift, Standard Type Bar Blade

Replaces OEM: Cub Cadet 01005380, 02005018, 1005337, 942-04416

Centre Hole Dia. (inches) 3/4"

Centre Hole Dia. (mm) 19.05 mm

Centre to Centre (inches) N/A

Centre to Centre (mm) N/A

Deck (inches) 54" Cut

Deck (mm) 1372 mm

Deck (cm) 137.2 cm

Length: (in): 19"

Length: (mm): 482.6 mm

Outside Hole Diameter (inches) N/A

Outside Hole Diameter (mm) N/A

Thickness: (inches) .204"

Thickness: (mm) 5.18 mm

Width: (inches) 3"

Width: (mm) 76.2 mm

Centre Hole Type: Round

Fits: 54" (1372 mm) cut Cub Cadet Pro Z 100 L Series [EFI 154-L, Pro Z154L, Z154L, 100

54, Z154L] (model 53AWEHRA330 years 2017 to 2019), Pro Z 100 and Pro Z 100 EFI [100

54, EFI 154-S, KH 154S, 154S, 154 S, 154-S, PRO Z 100 KH 154S] (model 53AWEFJA330

years 2016 to 2021), Pro Z 500 S Series [500 KW 554-S, 554S, Z 554S, Z554S] (model

53AIHJUN330 years 2017 to 2020), Z-Force 54 (model 17AF3AGX330 year 2013), Z-Force

LZ Series LZ54 (model 17ASDAGC330 year 2014), Z-Force SX Series SX54 [SX 54, SX-54,

SX54 KH FAB, SX54 FAB KW] (models 17ASDGJC330 years 2017 to 2020 and 47AIDGJC330

year 2021) and Z-Force SZ Series SZ-54 [SZ 54] (model 17ASDGHC330 year 2015) zero

turn radius (ZTR) ride-on models fitted with side discharge fabricated decks and

fabricated deck only (models 19A40016100 year 2013 and 19B40016100 year 2015).

Qty required per unit: 3 blades required for 54" cut.

Features: Standard type bar blade, stepped and high fluted, right hand cut.

Standard Pack Quantity: 1

Please Note: All bar bades are sold as singles, please order the quantity required to make up a

set.

Brand: Cub Cadet Non Genuine,

Product Line: Bar Blade, Blade - Bar, Ride-On Blade,
