Description: Non-Genuine Cox, Craftsman, Husqvarna, Victa Blade And Bolt Sets - Small Workshop
Pack of 25 Sets
Replaces OEM: Cox SMB198AHD
Length: (in): 7 3/4"
Length: (mm): 196.85 mm
Width: (inches) 1.968"
Width: (mm) 50 mm
Thickness: (inches) 0.118"
Thickness: (mm) 3 mm
Hole Size: (inches) 1/2"
Hole Size: (mm) 12.7 mm
Fits: 32” (813 mm) cut Cox selected models including but not limited to Lawn Boss 9605G
and A10506G, Nova, Orion XL, Stockman and Supa Nova ride-on lawn mower models as a
high flute blade option.
Product Line Notes: For a display packed high flute blade and bolt combo pack option order our part
number BRC5544 or for a display packed low flute blade and bolt combo pack option
order our part number BRC2089.
Fits: 46” (1168 mm) cut *Craftsman selected two blade deck models including but not
limited to Yard Series YT3000 (model 28924, years 2009 to 2011) and Yard Series
YT4000 (models 28857 and 28928, years 2009 to 2011) ride-on lawn mower models when
converting from 5-point star centre hole bar blades to swing back blades, (please
refer to the product note below for a full components required list).
Product Line Notes: *Use the blades and bolts included in this workshop pack x 2 pair qty in
conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back
blade conversion carrier bars.
(Other options that you may already have in stock include using our BLS3817 x 2 qty
swing back blade sets, BBN3722 x 2 qty bolt sets and BLH5788 x 2 qty flat, 5-point
star centre hole swing back blade conversion carrier bars. For a blade and bolt
combo pack option order our part number BRC5544 x 2 qty. For a standard bar blade
option use our BLR6877 x 2 qty, for a Copperhead Mulcher bar blade option use our
BLR8159 x 2 qty). ***Please Note this swing back blade set up will not fit the
46” cut Craftsman PYT9000 (model 28888) which is a premium featured (Cub Cadet
based) Sears manufactured ride on.***
Fits: 46” (1168 mm) cut *Husqvarna two blade deck models 2007 onwards including but not
limited to YTH2546T and YTH2546TD ride-on lawn mower models when converting from
5-point star centre hole bar blades to swing back blades, (please refer to the
product note below for a full components required list).
Product Line Notes: *Use the blades and bolts included in this workshop pack x 2 pair qty in
conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back
blade conversion carrier bars.
(Other options that you may already have in stock include using our BLS3817 x 2 qty
swing back blade sets, BBN3722 x 2 qty bolt sets and BLH5788 x 2 qty flat, 5-point
star centre hole swing back blade conversion carrier bars. For a blade and bolt
combo pack option order our part number BRC5544 x 2 qty. For a standard bar blade
option use our BLR6877 x 2 qty, for a Copperhead Mulcher bar blade option use our
BLR8159 x 2 qty).
Fits: 32” (813 mm) cut Victa Corvette ride-on lawn mower models.
Product Line Notes: For a display packed high flute blade and bolt combo pack option order our part
number BRC5544 or for a display packed low flute blade and bolt combo pack option
order our part number BRC2089.
Australian Made: Yes
Features: Heavy duty 3 mm thick, stepped and high fluted blades, right hand cut,
Includes matching bolt sets,
Supplied in bulk for workshop use in a reusable plastic parts box,
Suits OEM production line machines,
Also suitable for use with nine GA swing back blade conversion carrier bars,

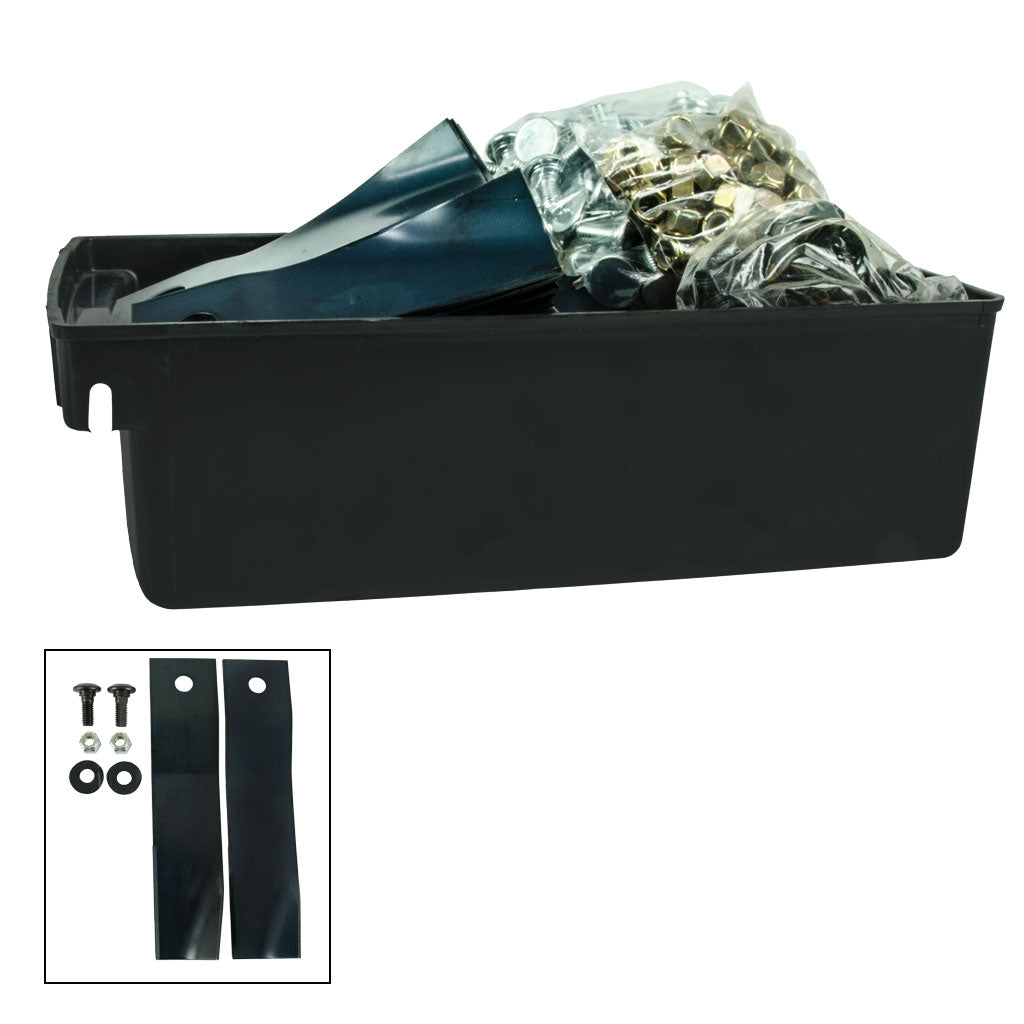

Kit consists of: BLS3817WC x 25 Pairs of blades,
BBN3722W x 25 Pairs of bolt set components,
BSS6844 x 1 Plastic stock box,
Standard Pack Quantity: 1
Footnote: All length measurements are from the centre of bolt hole to end of blade.
Brand: Cox Non-Genuine, Craftsman Non-Genuine, Husqvarna Non-Genuine, Victa Non-Genuine,
Product Line: Blade & bolt sets workshop pack, blade and bolt sets workshop pack, swing back
blades and bolt sets - workshop packs, workshop packs - blades & bolts, workshop
pack - blades and bolts,
