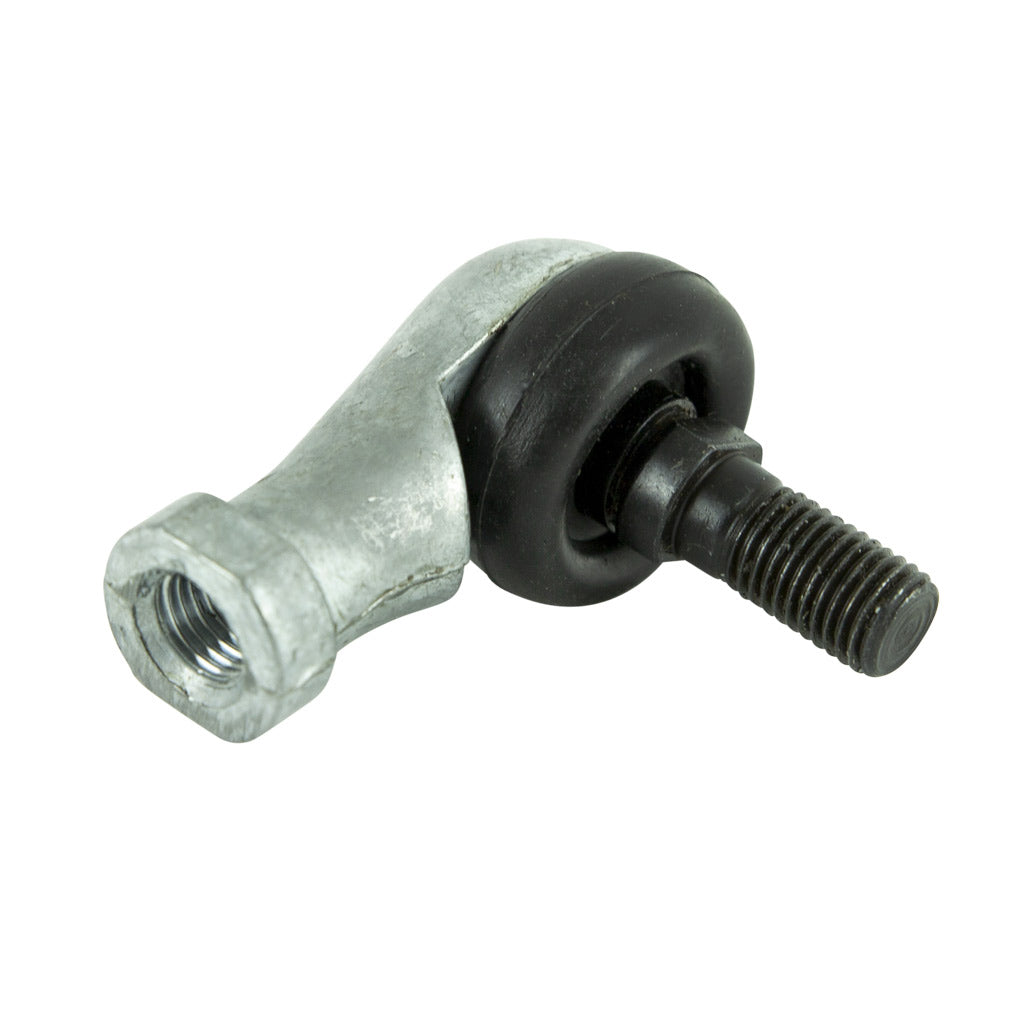

GREENFIELD TIE ROD END L/H

Description: Non-Genuine Greenfield Ball Joint / Tie Rod End, M10 x 1.25 Male Right Hand Thread

x M10 x 1.25 Female Left Hand Thread

Replaces OEM: Greenfield GT 02294, GT02294, GT2294, GT 2294

Height: (inches) 2.086" (Overall Height)

Height: (mm) 53 mm (Overall Height)

Length: (in) 2.303" (Overall Length)

Length: (mm) 58.5 mm (Overall Length)

Thread Size: M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 0.787" (20

mm) Long

Fits: 25” (635 mm) cut Greenfield MiniMow ride-on lawn mower models as the tie rod end

that connects the steering link to the steering transfer shaft.

Fits: 32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32

Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck

(model GT22875SD) ride-on lawn mower models as the tie rod end that connects the

steering link rod to the chain sprocket wheel.

Fits: 32” (813 mm) cut Greenfield Evolution FASTCUT32 (11.5 hp to 18 hp) ride-on lawn

mower models as the tie rod end that connects the steering link rod to the chain

sprocket wheel.

Fits: 34” (864 mm) cut Greenfield Evolution FASTCUT34 (13.5 hp to 26 hp), FASTCUT

17.5/34 Deluxe (model GT228995), 25/34 V-Twin Deluxe (model GT22900) ride-on lawn

mower models as the tie rod end that connects the steering link rod to the chain

sprocket wheel.

Fits: 42” cut Greenfield FASTCUT 25/42 V-Twin Deluxe (model GT22885) ride-on lawn mower

models as the tie rod end that connects the steering link rod to the chain sprocket

wheel.

Features: • Male End: M10 x 1.25 right hand thread

• Female End: M10 x 1.25 left hand thread

• Thread Length: 0.787" (20 mm)

• Overall Length: 2.303" (58.5 mm)

• Overall Height: 2.086" (53 mm)

Standard Pack Quantity: 1

Please Note: For many late model Greenfield ride-on lawn mowers use this left-hand threaded tie

rod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threaded

tie rod end that is used on selected models as the inner and outer tie rod ends for

the steering drag links and is also used as the tie rod end that connects the

steering link rod to the steering crank).

Brand: Greenfield Non-Genuine,

Product Line: Ball joint, drag link end, tie rod end, rod end,
