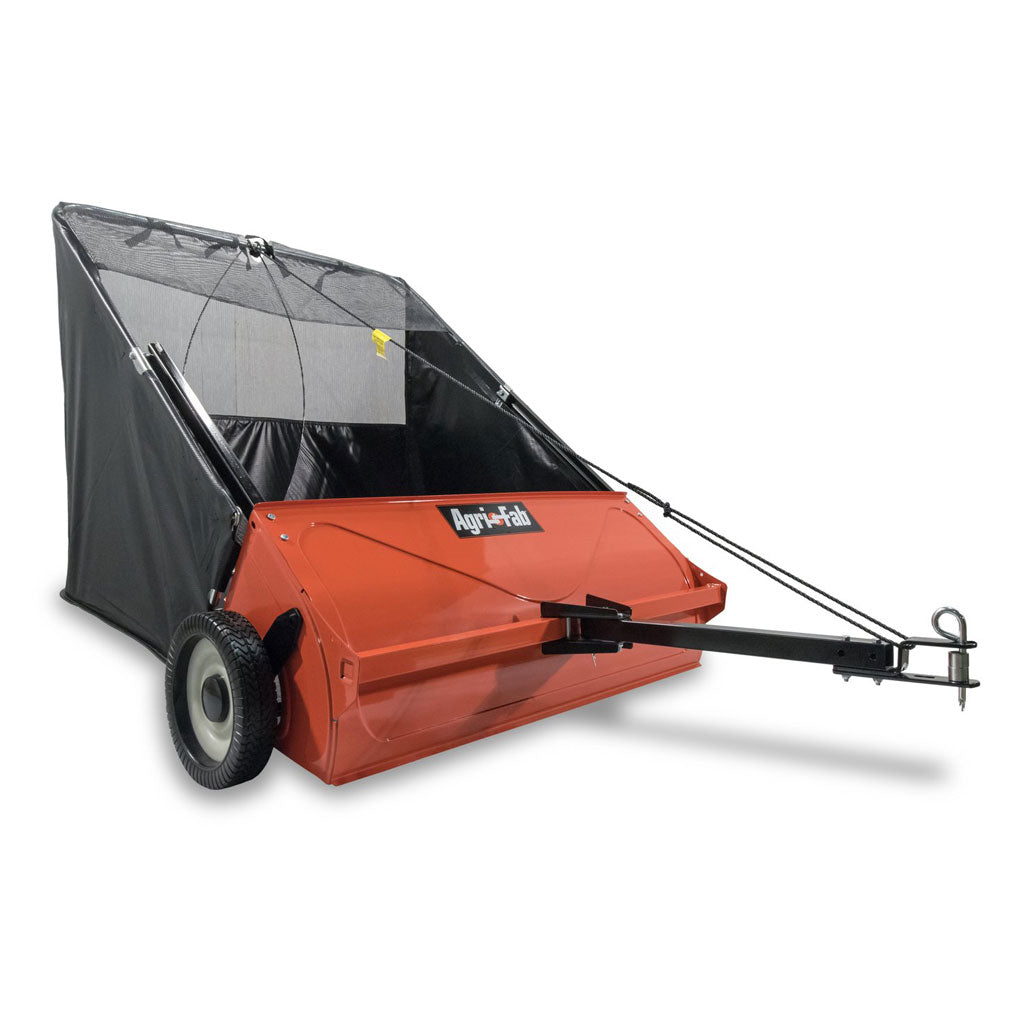

Description: Agri-Fab 42" Tow Behind Lawn Sweeper
Editorial: Sick of raking leaves and grass off your lawn after mowing? Does your ride-on mower
leave grass behind in wind rows leaving an eyesore after all of your hard work? The
Agri-Fab 42" Lawn Sweeper is the answer. With a sweeper, the job becomes much
easier on you and your lawn!
Replaces OEM: Agri-Fab 45-0521
Carton Size: (inches) (L x W x H) L 51.8" x W 12.6" x H 11.5"
Carton Size: (mm) (L x W x H) 1315 mm x 320 mm x 292 mm
Height: (inches) 24"
Height: (mm) 609.6 mm
Length: (in) 67"
Length: (mm) 1701.8 mm
Weight: 85 lbs (38.55 kg)
Width: (inches) 51"
Width: (mm) 1295.4 mm
Fits: Ideal for use with many brands of lawn tractor type ride-on lawn mowers including
but not limited to selected Cox, Craftsman Garden series, Lawn Series, Professional
Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, GTH, LR, LT,
LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X series, Jonsered
GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man series, Murray,
Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn mower.
Features: Versatile - Easily and quickly attaches to most lawn tractors.
Quick to empty - Just pull on the rope to empty the bag.
Offset hitch option, cut and sweep at the same time.
Easy brush height adjustment.
Transport option, for moving across areas you do not wish to sweep.
Easy storage - the sweeper collapses for easy storage.
Large flow through bag so that you don't have to stop as often.
Semi-pneumatic wheels 11" (279.4 mm) x 2.5" (63.5 mm).
Made in the USA.
Standard Pack Quantity: 1
Please Note: Please read the product manual included with your sweeper prior to use to fully
understand the safety requirements and operation instructions.
Required tow hitch height is between 7" to 13" (178 mm to 330 mm).
Due to idle speeds (ground speed) this sweeper is designed for use with lawn
tractors and is not for use with ZTR's or four wheelers.
Working speed 3-4 mph (4.82 kph to 6.43 kph). Do not exceed 6 mph (10 km/h).
Setting the brush height - Best results are achieved if the brushes penetrate the
grass to a depth of 1/2" (1.5 cm).
! Warning - Risk of Overturning
Check the loading capacity of the towing vehicle and only sweep appropriate amounts
of grass and leaves into the grass bag.
On starting off, make sure that the sweeper retains its balance and does not
overturn.
Do not work on slopes greater than 10°.
Do not exceed 6 mph (10 km/h).
Drive slowly and carefully, especially when turning and on uneven ground.
Note: The driving and braking characteristics depend on the towed load.
! Warning - Risk of Fire
Always empty the grass bag before storing the sweeper; otherwise spontaneous
combustion may occur.
Always keep the sweeper away from fire. Excessive heat can damage the brushes and
grass bag and could cause the bag to burn.
Brand: Agri-Fab
Product Line: Lawn Sweeper, Sweeper - Lawn, Tow-Behind Sweeper,
