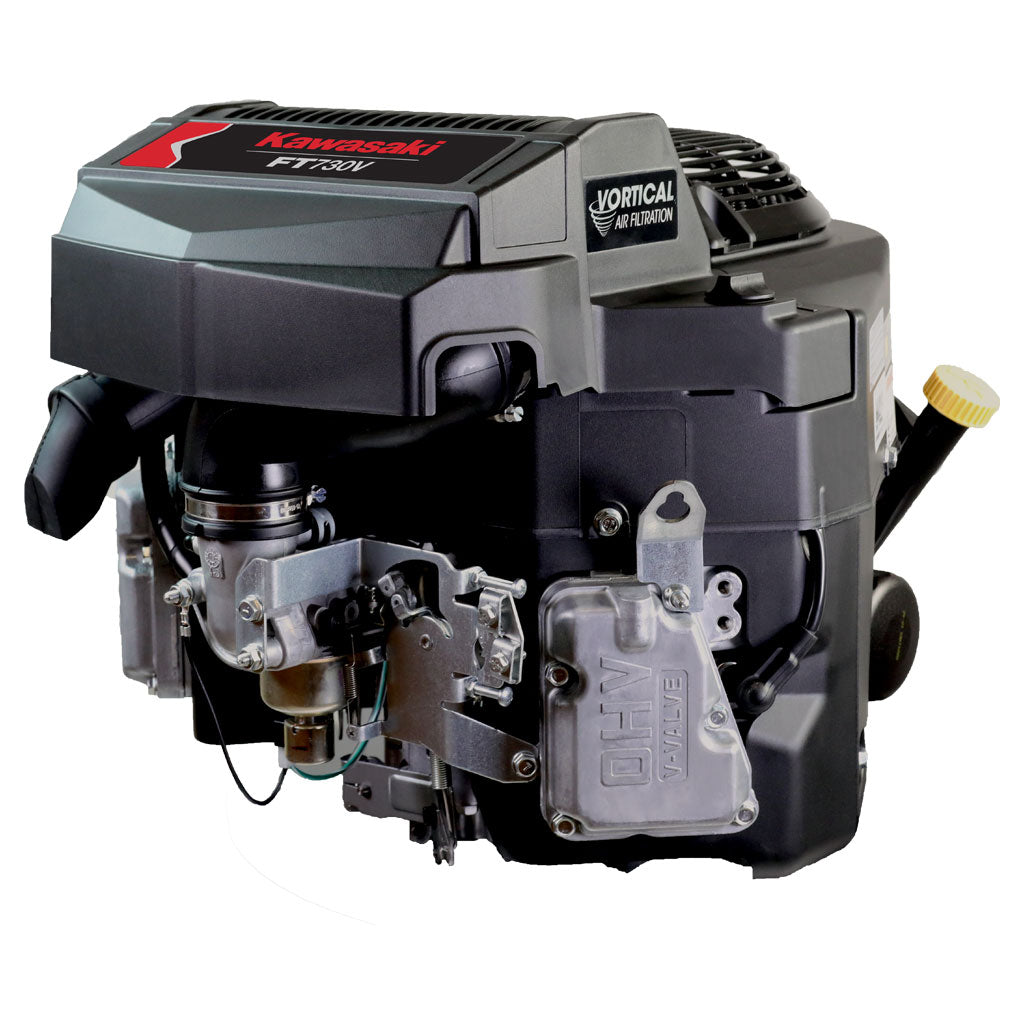

Description: Kawasaki FT730V-AS00-S, 24.0 hp (17.9 kW), 726 cc Vertical Shaft Engine With A 1
1/8" x 108.8 mm Crankshaft
Editorial: The new FT Series engines with Vortical air filtration blaze new trails. Kawasaki
FT Series engines are designed and built to handle heavy loads. The Vortical air
filtration system muscles out grass and debris while large, easy-to-access
integrated clean-out ports amp up your efficiency and keep you cutting.
Features: 90° V-twin.
High-efficiency, centrifugal air intake system.
Vortical air filtration system with cylinder shaped cartridge air filter.
Large, easy-to-access integrated clean-out ports.
Pressurized lubrication system.
Electronic spark ignition.
Automatic compression release.
Internally vented carburetor with fuel shut-off solenoid.
Cast-iron cylinder liners.
Rotating metal grass chopper screen.
Specifications: -
Type: Air cooled, 90 degree V-twin, normally aspirated petrol engine.
Engine (cc): 726 cc
Horsepower (@3,600 rpm): 24.0 hp (17.9 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE
J1995 Standards.)
Cylinder: Two, 90° V-twin.
Cylinder Liner: Cast-iron cylinder liners.
Bore x Stroke: 3.1 x 3.0 in. (78 x 76mm).
Displacement: 726 cc (44.3 cu. in.).
Compression Ratio: 8.2:1
Cooling: Air cooled. Fly-wheel fan.
Net Power: Maximum Power 24.0 hp (17.9 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
Net Torque: Maximum Torque 39.6 ft-lbs (53.7 N·m) at 2,400 RPM.
Decompressor: Automatic compression release.
Ignition: Electronic spark ignition.
Crankshaft Diameter: 1 1/8" x 108.8 mm.
Air Filter: Cartridge air filter.
Charging System: 12-volt.
Starter: 12-volt.
Exhaust/Muffler: No.
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel.
Fuel Filter: Yes, replaceable, automotive-type.
Governor: Mechanical.
Oil Filter: Yes, spin-on engine oil filter.
Oil Capacity: Oil Capacity w/filter 2.2 U.S. qt ( 2.1 litres).
Dry Weight: (lb) 96.3 lbs.
Dry Weight: (kg) 43.7 kg.
Warranty: Kawasaki Commercial Engine Warranty Policy for Australia
GA Power Equipment Spares warrants to the original purchaser of each new Kawasaki
four-cycle engine that such product shall be free, under normal use and
maintenance, from any defect in materials and/or workmanship for a period of
thirty-six (36) months for units purchased on or after 1st September 2017. Any unit
purchased prior to 1st September 2017 will be covered for a period of twenty-four
(24) months after the date of purchase, subject to the following conditions,
exclusions, obligations and limitations for models FR, FS, FX, FD, FJ.
COVERAGE
Any material and/or workmanship in four–cycle engines found to be defective by
Kawasaki within the thirty-six (36) months for units purchased on or after 1st
September 2017. Any unit purchased prior to 1st September 2017 will be covered for
a period of twenty-four (24) month warranty term for models FR, FS, FX, FD, FJ.
Shall be remedied without charge for parts or labour at any authorised Kawasaki
Engine Dealer located in Australia. A Kawasaki part or accessory sold and installed
by an authorised Kawasaki Engine Dealer, which is found defective in material
and/or workmanship, within the three (3) month warranty term, shall be repaired or
replaced (at the option of Kawasaki) without charge for the part or accessory, at
any authorised Kawasaki Engine Dealer located in Australia.
CUSTOMER RESPONSIBILITIES
The following obligations must be fulfilled by the owner to maintain the validity
of Kawasaki Warranty for Australia. Owner must deliver the four-cycle engine to an
Authorised Kawasaki Engine Dealer for inspection, maintenance services and
adjustments as per the Australian periodic maintenance chart attached. The
inspection, maintenance services and adjustments are to be performed at the
owner’s expense. Owner must present proof of initial retail purchase date to an
Authorised Kawasaki Engine dealer at the time warranty repairs are performed on the
four-cycle engine.
LIMITATIONS
This warranty shall not apply to or include any of the following: Repair or
replacement required as a result of accident, misuse or neglect, lack of reasonable
and proper
maintenance, repairs improperly performed or replacements improperly installed, use
of non-genuine Kawasaki+D551 replacement parts or accessories, alterations or
modifications not recommended by Kawasaki, wear and deterioration occasioned by the
by the use of the four-cycle engine, the use of stale or incorrect fuel. Routine
maintenance services, adjustments, cleaning and/or expendables such as spark plugs,
lubricants, oil filters, air filters and fuel filters.
LIMITED LIABILITY
The liability of Kawasaki under the thirty-six (36) months for units purchased on
or after 1st September 2017. Any unit purchased prior to 1st September 2017 will be
covered for a period of twenty-four (24) months warranty for models FR, FS, FX, FD,
FJ is limited solely to the remedying of defects in materials and/or workmanship by
an Authorised Kawasaki Engine Dealer at its place of business during customary
business hours. This warranty does not cover inconvenience or loss of use of the
four-cycle engine or transportation of the four-cycle engine to and from the
Kawasaki Dealer.
AUSTRALIAN CONSUMER LAW (reg.90)
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss of damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
The text above applies not withstanding anything else expressed or implied to the
contrary in this Warranty document.
Standard Pack Quantity: 1
Please Note: Specifications subject to change without notice.
International Standard: *PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.*
Brand: Kawasaki,
Product Line: Engine, Four Stroke Engine, V-Twin Engine,
