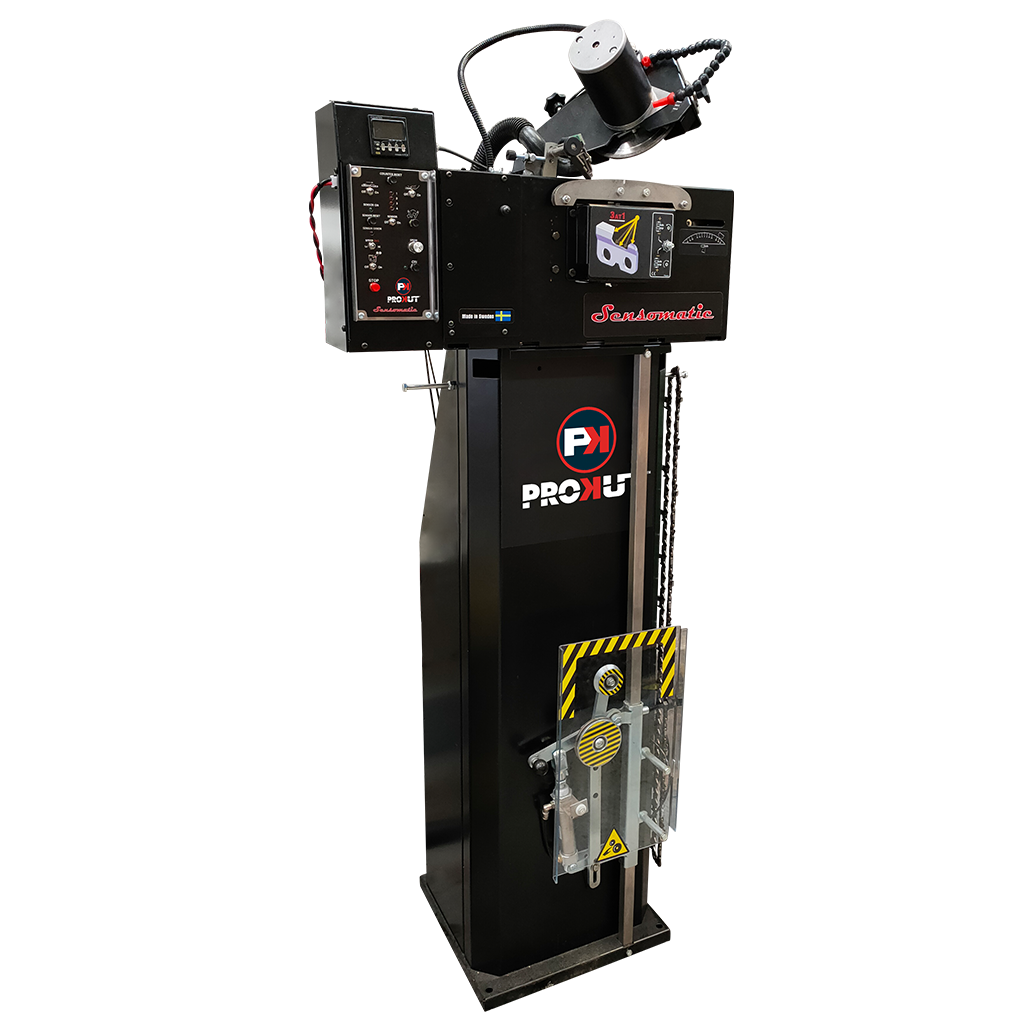

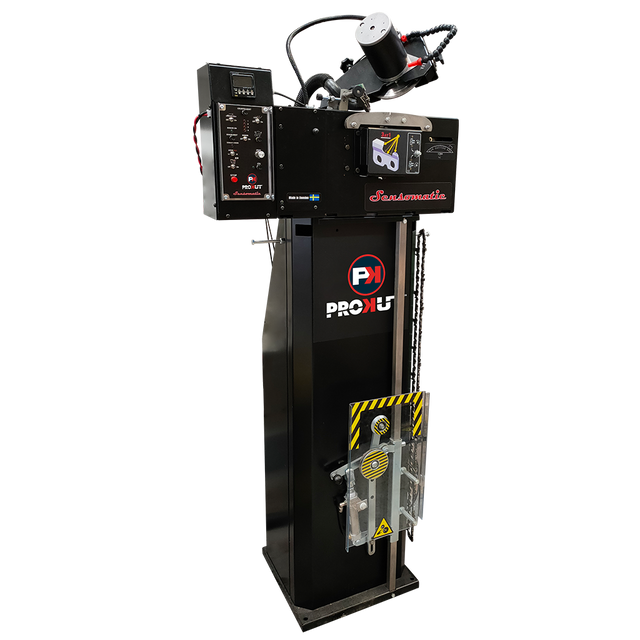

Description: PROKUT Sensomatic 1/4" to .404" Pitch, 240V Automatic Chainsaw Chain Grinder
Editorial: Built to meet the tough standards of forestry cutting and harvesting, the PROKUT
Sensomatic automatic chainsaw chain grinder is easy to transport, mount and set up.
The PROKUT Sensomatic grinder is an automatic sharpening machine which sharpens the
cutting tooth, shapes the gullet and adjusts the raker in one motion. During
sharpening it touches the cutting edge of the tooth three times in the process to
enable razor sharp cutting. The grinder is fully adjustable in accordance with the
size of the cutting link and the length of the saw chains. It takes only a few
manual adjustments and then the grinder will operate all by itself. All angles,
depths and lengths can be adjusted according to the manufacturer’s
recommendations and the speed is stepless. On the digital counter you dial in the
number of cutting links of the saw chain. Then you simply start the grinder and it
will automatically stop when the selected number of cutting links have been ground
and are ready to use.
The grinder can cut up to 4 mm per tooth and can easily be adjusted to cut as is
required, this without any colour change of the cutting link (turning blue) or loss
of the hardening quality. Thanks to a very efficient construction with few moving
parts our grinding machines require a minimum of maintenance. On top of that there
is no need for water cooling which further simplifies operation.
Another time saving feature on the PROKUT Sensomatic automatic chainsaw chain
grinder is the high speed option on the depth gauge grinder. The grinders stand has
two supporting wheels in order to accommodate a wide variety of chain loops from
1/4”, .325, 3/8" and .404” as well as 3/8” Skip tooth. The PROKUT Sensomatic
grinder also includes an exhaust pipe system and air cooling making this grinder a
perfect choice for those who work with many chains pitches in a professional
environment. Equipped with many time saving and clever features including a sensor
attached to the chain pusher or the ability to start the grinding anywhere on the
chain without grinding the wrong cutter, the PROKUT Sensomatic automatic chain
grinder is a must for every busy workshop.
Features: Equipped with a sensor that indicates left or right cutter and skip sequence. This
function is optional and can be disabled.
3-in-1 grinder. Sharpens the cutter, the gullet and the raker in one motion. Allows
more chip space and increases cutting performance.
High and low speed option for depth gauge grinder.
Includes digital counter, exhaust pipe, air cooling kit, machine stand and
pneumatic tensioner.
Two support wheels to accommodate shorter chains.
Chain vise is adjustable to all sizes of drive links.
Grinding angle is easy to adjust 0° – 35°.
Specifications: Supply Voltage: Australian standards 240 volts.
Over-current protection: Automatic fuse type ptc.
Rotation speed (Grinding motor): 3250 rpm (no load).
Peripheral speed: 25 m/s.
Top-plate angle (Grinding angle): 0 – 35° (default 30°).
Head-tilt angle: 50 – 70° (default 60°).
Grinding wheel dimensions: Outer diameter (OD) × Width (W) × Inner diameter (ID):
a) 150 mm x 3.2 mm x 16 mm (5 7/8” x 1/8” x 5/8”) [One is included with
unit].
b) 150 mm x 4.8 mm x 16 mm (5 7/8” x 3/16” x 5/8”) [One is included with
unit].
Max dimensions for the Sensomatic Auto Chain Grinder - Length (L) x Width (W) x
Height (H): 480 mm x 330 mm x 520 mm (18.9” x 12.9” x 20.4”).
Dimensions, stand: Length (L) x Width (W) x Height (H): 345 mm x 360 mm x 1070 mm
(13.5” x 14.1” x 42.1”).
Weight, machine: 20.7 kg.
Weight, stand: 33 kg.
Compressed air supply pressure: 5 – 8 Bar (75 – 116 PSI).
Chain length min: 0.7 m.
Chain length max, with stand and tensioner: 2.3 m.
Chain length max, with Telescopic chain ext. kit (sold separately): 4.5 m.
Standard Pack Quantity: 1
Note: As well as coming supplied with two grinding wheels an adaptor / reducer bush is
also included with the grinder allowing for the following high quality grinding
wheels (which can be purchased separately) to be used -
a) PROKUT *CBN grinding wheel for sharpening 1/4", .325" and 3/8" LP chainsaw
chains part number GAF7742.
b) PROKUT *CBN grinding wheel for sharpening 3/8" Std pitch chainsaw chains part
number GAF7743.
c) PROKUT *CBN grinding wheel for sharpening .404" pitch chainsaw chains part
number GAF7746.
d) PROKUT †Diamond grinding wheel for sharpening .325" and 3/8" LP Tungsten
chainsaw chains part number GAF7789.
e) PROKUT †Diamond grinding wheel for sharpening 3/8" Std and .404" pitch
Tungsten chainsaw chains part number GAF7791.
Please Note: *CBN grinding wheels are made from Cubic Boron Nitride (CBN) and are designed for
grinding hardened steel (standard chainsaw chains). CBN wheels are not designed for
use on Tungsten Carbide chain and doing so will destroy the wheel and void
warranty. †Diamond wheels are designed for sharpening tungsten chainsaw chain
only, Not for use on standard chain and doing so will destroy the wheel and void
warranty.
Optional accessories sold separately include:-
GAF10829024 PROKUT Tecomec VCPRO wet and dry vacuum.
GAFK00112016 Dust extraction suction hose kit for wet and dry vacuum.
GAFK00200430 Telescopic chain extension.
Footnote: For an automatic chain grinder suitable for use with 3/4" pitch chain use our
PROKUT Combimatic grinder part number GAF11609012.
