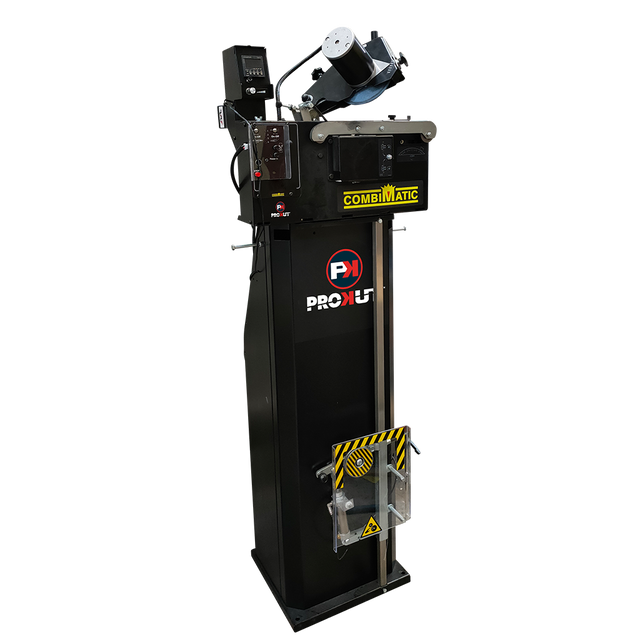

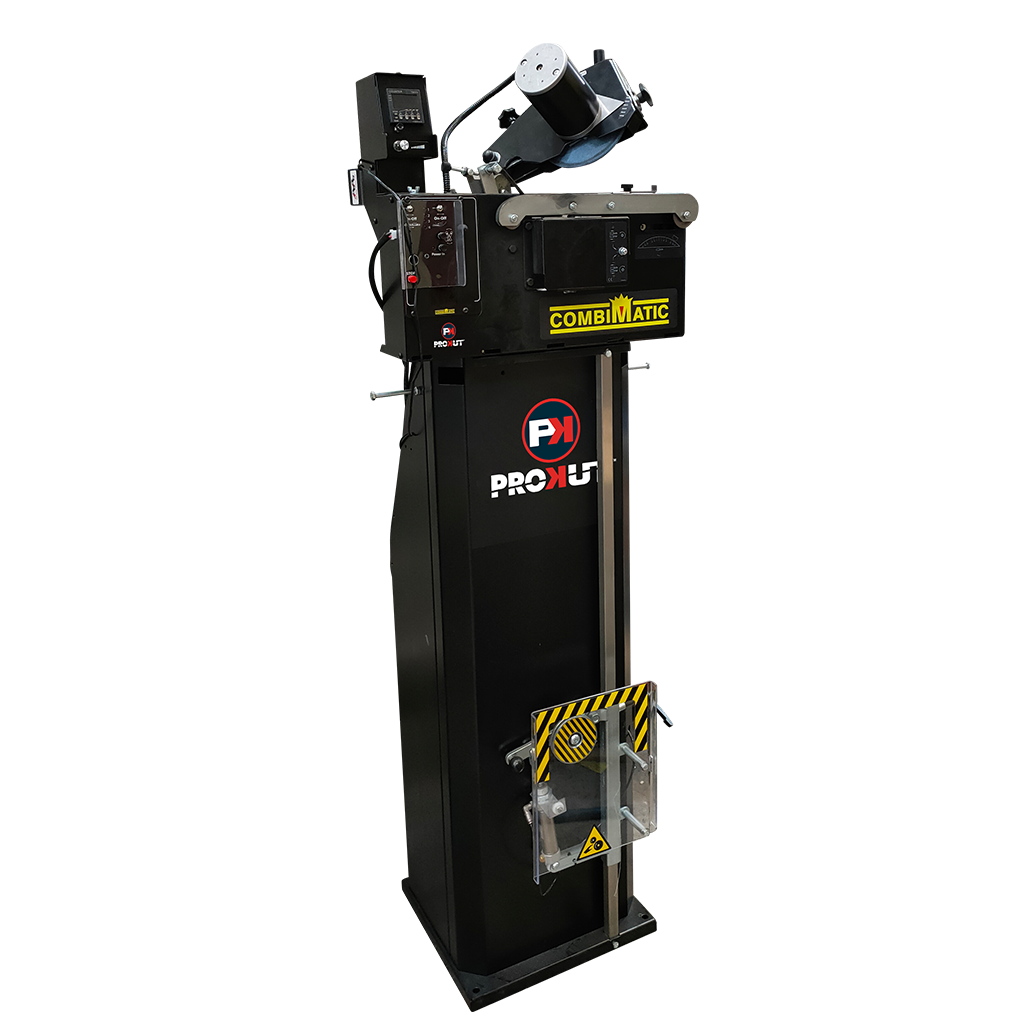

Description: PROKUT Combimatic .325" to 3/4" Pitch, 240V Automatic Chainsaw Chain Grinder
Editorial: Built to meet the tough standards of forestry cutting and harvesting, the PROKUT
Combimatic automatic chainsaw chain grinder is easy to transport, mount and set up.
The grinder is fully adjustable in accordance with the size of the cutting link and
the length of the saw chains. It takes only a few manual adjustments and then the
grinder will operate all by itself. All angles, depths and lengths can be adjusted
according to the manufacturer’s recommendations and the speed is stepless. On the
digital counter you dial in the number of cutting links of the saw chain. Then you
simply start the grinder and it will automatically stop when the selected number of
cutting links have been ground and are ready to use. The grinder can cut up to 4 mm
per tooth and can easily be adjusted to cut as is required, this without any colour
change of the cutting link (turning blue) or loss of the hardening quality. Thanks
to a very efficient construction with few moving parts our grinding machines
require a minimum of maintenance. On top of that there is no need for water cooling
which further simplifies operation.
The PROKUT Combimatic automatic chain grinder is a must for every busy workshop.
Features: Fully automatic sharpening machine for .325", 3/8", .404" and 3/4" pitch chains.
Includes digital counter.
Individually adjustable speed setting to enable grinding a 3/4″ cutting link in
one operation, without turning it blue.
Adjustable depth centering at the grinding head, easily set by a knob.
Very high grinding capacity.
Simple to use and easy to adjust.
Grinding angle is easy to adjust between 0°-35°. Enables easy grinding of, for
example, sawmill chains.
Specifications: Supply Voltage: Australian standards 240 volt.
Over-current protection: Automatic fuse type ptc.
Rotation speed (Grinding motor): 2800 rpm (no load).
Peripheral speed: 22 m/s.
Top-plate angle (Grinding angle): 0 – 35° (default 30°).
Grinding wheel dimensions: Outer diameter (OD) × Width (W) × Inner diameter (ID):
150 mm x 4 mm x 16 mm (5 7/8” x 0.157” x 5/8”) [One is included with unit].
Max dimensions for the Combimatic Auto Chain Grinder - Length (L) x Width (W) x
Height (H): 475 mm x 140 mm x 395 mm (18.70” x 5.51” x 15.55”). [Without
stand.]
Dimensions, stand: Length (L) x Width (W) x Height (H): 400 mm x 460 mm x 1070 mm
(15.74” x 18.11” x 42.12”).
Weight, machine: 15.9 kg. (Without stand).
Compressed air supply pressure: 5 – 8 Bar (75 – 116 PSI).
Standard Pack Quantity: 1
Note: As well as being supplied with a grinding wheel an adaptor / reducer bush is
included with the grinder allowing for the following high quality grinding wheels
(which can be purchased separately) to be used -
a) PROKUT *CBN grinding wheel for sharpening 1/4", .325" and 3/8" LP chainsaw
chains part number GAF7742.
b) PROKUT *CBN grinding wheel for sharpening 3/8" Std pitch chainsaw chains part
number GAF7743.
c) PROKUT *CBN grinding wheel for sharpening .404" pitch chainsaw chains part
number GAF7746.
d) PROKUT †Diamond grinding wheel for sharpening .325" And 3/8" LP Tungsten
chainsaw chains part number GAF7789.
e) PROKUT †Diamond grinding wheel for sharpening 3/8" Std and .404" pitch
Tungsten chainsaw chains part number GAF7791.
f) PROKUT *CBN grinding wheel for sharpening 3/4" pitch chainsaw chains part number
GAF7748.
Please Note: *CBN grinding wheels are made from Cubic Boron Nitride (CBN) and are designed for
grinding hardened steel (standard chainsaw chains). CBN wheels are not designed for
use on Tungsten Carbide chain and doing so will destroy the wheel and void
warranty. †Diamond wheels are designed for sharpening tungsten chainsaw chain
only, Not for use on standard chain and doing so will destroy the wheel and void
warranty.
Optional accessories sold separately include part numbers:
GAF10829024 PROKUT Tecomec VCPRO wet and dry vacuum.
GAFK00112016 Dust extraction suction hose kit for wet and dry vacuum.
GAFK00200437 Flexible hose exhaust tubing.
GAFK00200431 Air cooling kit.
GAFK00200430 Telescopic chain extension.
Footnote: For an automatic chain grinder suitable for use with 1/4" to .404" pitch chains and
3/8" Skip Tooth use our PROKUT Sensomatic grinder part number GAF11609011. The
PROKUT Sensomatic grinder is an automatic sharpening machine which sharpens the
cutter, the gullet and the raker in one motion.
