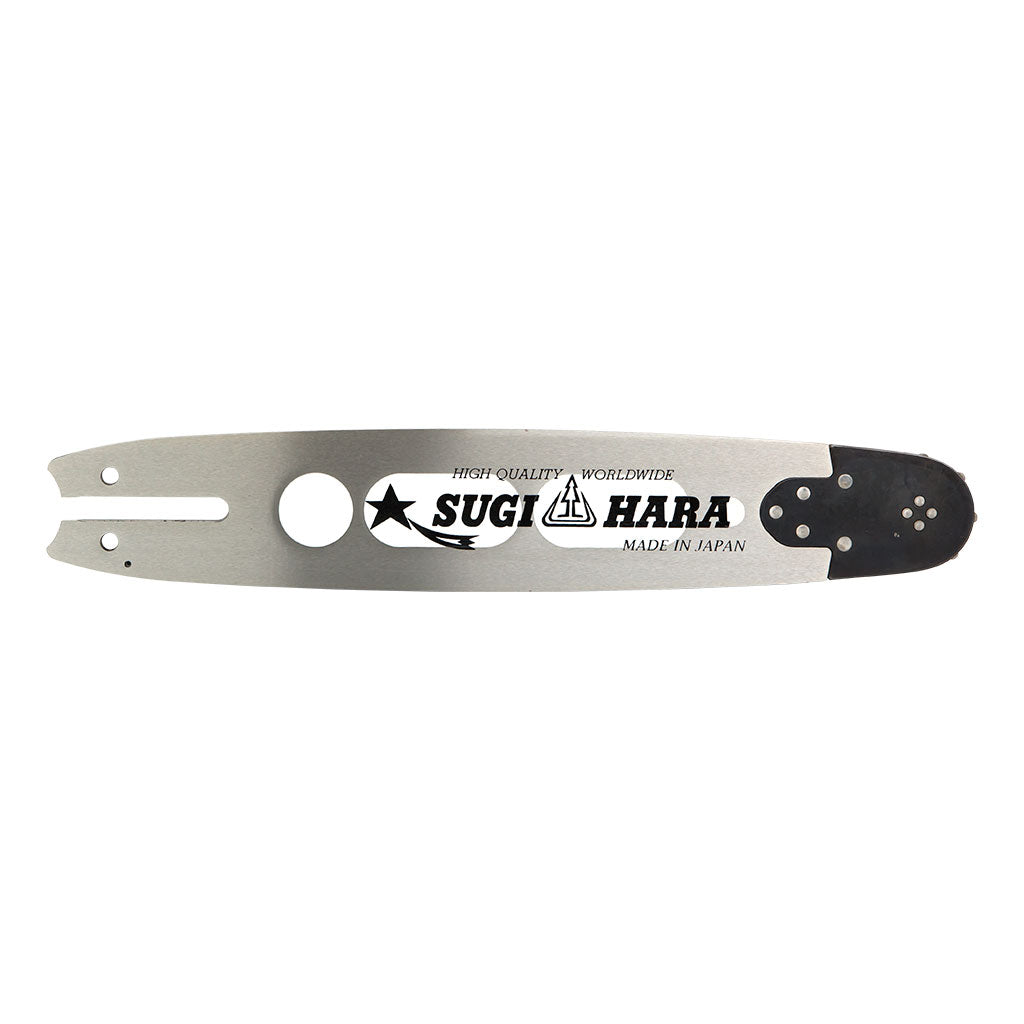

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 12 #20 AD

FORESTRY-G  |  SKU: GAFAD1220RRP

$138.47
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 12 #20 AD LIGHT WEIGHT BAR

Specifications

Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 12" x 3/8" Low Profile x .050" x

44 DL, AD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are

manufactured In Japan from a single piece of steel. Manufactured the same way as

the Sugihara Red Label Pro Solid bars but with sections removed and filled with a

rigid, weight reducing resin. One of the best guide bars in the world today

Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular

version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars

are sought after for their high performance and light-weight. They are easily

recognised by the white resin sections and black label. The most striking looking

bar on the market.

Replaces OEM: Oregon 120SDEA074, 120SPEA074, 120SXEA074.

Sugihara - Diatop SL2U-0N30-A.

Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily

recognised by the white resin sections and black label.

Manufactured the same way as the Sugihara Red Label Pro Solid bars but with

sections removed and filled with a rigid, weight reducing white resin.

This guide bar weighs just 390g.

Professional premium quality, reduced weight replaceable sprocket nose guide bar.

High durability sprocket nose.

Polished lacquered finish.

Nose fastens with three rivets, and is securely held by wide and strong overlapping

ears.

The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body.

Super tough steel, heat treated up to 4 times on different parts of the guide bar,

provides superior bar-body strength and tough rails with excellent resistance to

wear and chipping.

PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.

Made in Japan.

All PROKUT guide bars are reversible for longer life.

Chain Number: 20S

Length: (in): 12"

Length: (cm): 30 cm

Pitch: 3/8" Low Profile.

Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 20S / Semi-Chisel

Bar Mount Type: AD

Drive Link Count: 44

Teeth: 8 Tooth sprocket nose

Recommended Saw Sizes: Up to 3.5 cu. in (57 cc)

Fits: Alpina 361 and 391 model chainsaws.

Fits: OLEO-MAC 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F and OLE 300

model chainsaws.

Fits: STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER,

020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS

171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS

191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 192 T C-E, MS 193, MS 193

T, MS 200, MS 200 T, MS 201 C, MS 201 C-E, MS 201 C-EM, MS 201 T, MS 210, MS 210 C,

MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS 220 Q, MSE 140, MSE 140 C,

MSE 140 C-BQ, MSE 170, MSE 170 C-BQ,

MSE 180, MSE 180 C, MSE 180 C-BQ, MSE 200 and MSE 210 C-BQ model chainsaws. Note:

Please check your saw carefully prior to ordering, some of these saw models were

also released fitted with a .325” pitch chain.

Fits: STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE,

MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 Cmodel

chainsaws as a NARROW Cut option.

Fits: STIHL HT 70, HT 73, HT 75, HT 100, HT 101, HT 130, HT 131, HT 250 pole saw / pole

pruner models and HT-KM pole saw / pole pruner Kombi Tool. Note: Please check your

saw carefully prior to ordering, some of these saw models were also released fitted

with a 1/4" pitch chain.

Standard Pack Quantity: 1

Note: Use with our semi-chisel chain loop part number GAF20S044DL.

Other PROKUT bar options to fit the above models Include: - For a PROKUT

semi-professional laminated multi-rivet sprocket nose guide bar option use our part

number GAFAD1220EL. For a PROKUT consumer laminated single rivet sprocket nose

guide bar option use our part number GAFAD1220DL.

Please Note: Replaces our part numbers OMK120SDEA074, OMK120SPEA074, OMK120SXEA074,

Brand: PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,

Product Line: Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,

sprocket nose guide bar,

Installation

We are currently updating all installation instructions so please contact us if you need installation assistance whilst we collate additional information.
