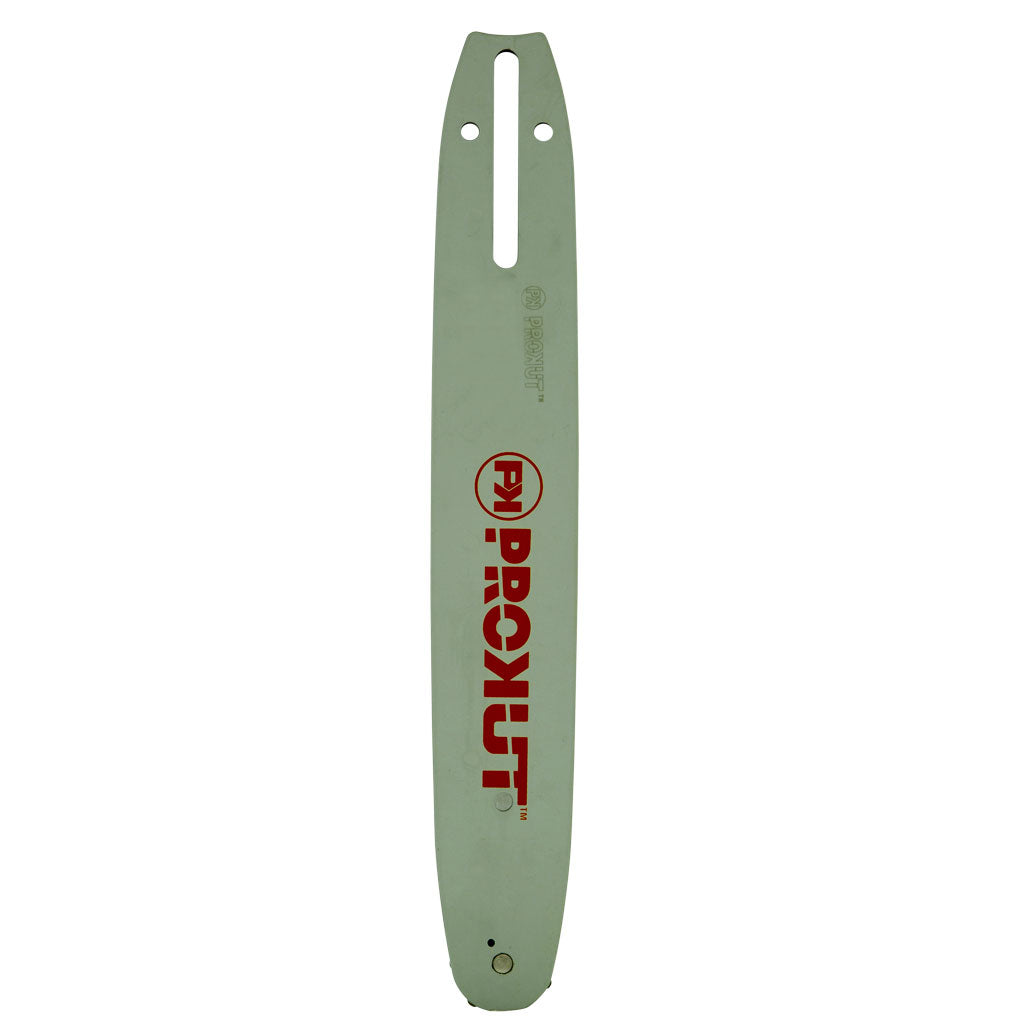

Description: PROKUT 12" x 3/8" LP (Low Profile) x .043" x 44 DL, AD Mount, Consumer Laminated
Single Rivet Sprocket Nose Guide Bar
Replaces OEM: OREGON 124MLEA074
Replaces OEM: OREGON 124MLEA074
STIHL 3005 000 3905
Features: • Consumer Laminated single rivet sprocket nose guide bar
• Small radius nose helps reduce kickback
• Excellent rail strength for long life
• Light-weight slim contour, for excellent manoeuvrability
• Narrow cut (kerf) cutting systems require less power from the saw than standard
cutting systems
• All PROKUT guide bars are reversible for longer life
Features: Consumer Laminated single rivet sprocket nose guide bar,
Small radius nose helps reduce kickback,
Excellent rail strength for long life
Light-weight slim contour, for excellent manoeuvrability,
Narrow cut (kerf) cutting systems require less power from the saw than standard
cutting systems,
All PROKUT guide bars are reversible for longer life.
Length: (in): 12"
Length: (in): 12"
Length: (cm): 30 cm
Pitch: 3/8" Low Profile
Bar Type: Consumer Laminated single rivet sprocket nose guide bar
Chain / Cutter Type: 24STN - semi-chisel chain with anti-kickback tie straps or 24SN - semi-chisel chain
with ramp-shaped depth gauges.
Bar Mount Type: AD
Gauge: .043"
Drive Link Count: 44
Teeth: 7 Tooth sprocket nose
Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
Fits: Oleo-Mac 1500 models as a Narrow Cut option.
as a Narrow Cut option.
180 C, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T,
MS 191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201
C, MS 201 T, MS210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220,
MS 220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180
C-BQ, MSE 200 models as a Narrow Cut option. Note: Please check your saw carefully
prior to ordering, some of the above saw models were also released fitted with a
.325" pitch chain.
Fits: Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F, OLE 300 models
as a Narrow Cut option.
Fits: STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER,
020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS
171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS
191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 192 T C-E, MS 193, MS 193
T, MS 200, MS 200 T, MS 201 C, MS 201 C-E, MS 201 C-EM, MS 201 T, MS 201 TC-M,
MS210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS 220 Q, MSE
140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 170 C-BQ, MSE 180, MSE 180 C, MSE 180
C-BQ, MSE 200 and MSE 210 C-BQ models as a Narrow Cut option. Note: Please check
your saw carefully prior to ordering, some of the above saw models were also
released fitted with a .325" pitch chain.
Fits: STIHL Pole pruner models: HT 70, HT 73, HT 75, HT 100, HT 101, HT 130, HT 131, HT
250 and HT-KM as a Narrow Cut option. Note: Please check your saw carefully prior
to ordering, some of the above saw models were also released fitted with a 1/4"
pitch chain.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF24STN044DL. Replaces our part
number OMK124MLEA074.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF24SN044DL or our semi-chisel
safety anti-kickback chain loop part number GAF24STN044DL. Replaces our part number
OMK124MLEA074.
Brand: PROKUT, GA Forestry Accessories
Product Line: Bar, guide bar, laminated guide bar, sprocket nose guide bar,
