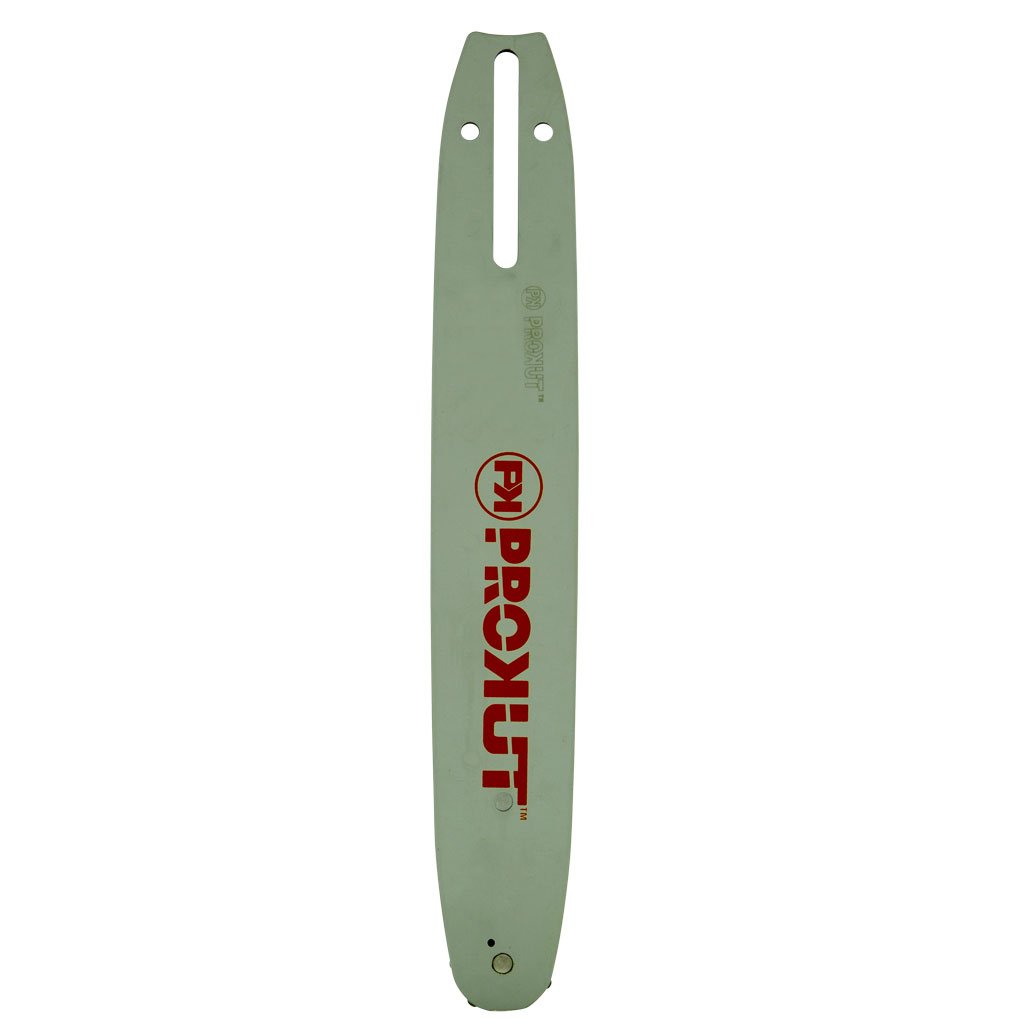

PROKUT SPROCKET NOSE GUIDE BAR 16 #20 AD

FORESTRY-G  |  SKU: GAFAD1620DL

$50.09
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

PROKUT SPROCKET NOSE GUIDE BAR 16 #20 AD

Specifications

Description: PROKUT 16" x 3/8" Low Pro x .050" x 55 DL Or 56 DL, AD Mount, Consumer Laminated

Single Rivet Sprocket Nose Guide Bar

Replaces OEM: OREGON 160SDEA074

Replaces OEM: OREGON 160SDEA074

Features: • Consumer Laminated single rivet sprocket nose guide bar

• Small radius nose helps reduce kickback

• Excellent rail strength for long life

• Light-weight slim contour, for excellent manoeuvrability

• Narrow cut (kerf) cutting systems require less power from the saw than standard

cutting systems

• All PROKUT guide bars are reversible for longer life

Features: • Consumer Laminated single rivet sprocket nose guide bar

• Small radius nose helps reduce kickback

• Excellent rail strength for long life

• Light-weight slim contour, for excellent manoeuvrability

• Narrow cut (kerf) cutting systems require less power from the saw than standard

cutting systems

• All PROKUT guide bars are reversible for longer life

Length: (in): 16"

Length: (in): 16"

Length: (cm): 40 cm

Pitch: 3/8" Low Profile

Bar Type: Laminated single rivet sprocket nose guide bar

Chain / Cutter Type: 20S / Semi-Chisel

Bar Mount Type: AD

Gauge: .050"

Drive Link Count: 55 (most) Or 56 (Some)

Teeth: 7 Tooth sprocket nose

Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)

Fits: Alpina 361, 391 models. (These models use a 56 drive link chain).

models. (These models use a 55 drive link chain).

171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181C, MS 181C-BE, MS 190 T, MS

191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 C,

MS 201 T, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS

220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ,

MSE 200 models. (These models use a 55 drive link chain). Note: Please check your

saw carefully prior to ordering, some of the above saw models were also released

fitted with a .325” pitch chain.

Fits: Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, Blitz, E1900, OLE 140F, OLE 300

models. (These models use a 55 drive link chain).

Fits: STIHL 009, 009L, 010, 011, 012, 015, 017, 018, 018C, 019, 019 T, 020, 020 Super,

020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180C, MS 170, MS

171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181C, MS 181C-BE, MS 190 T, MS

191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 C,

MS 201 T, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS

220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ,

MSE 200 models. (These models use a 55 drive link chain). Note: Please check your

saw carefully prior to ordering, some of the above saw models were also released

fitted with a .325” pitch chain.

Fits: STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE,

MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 C models

as a NARROW CUT option. (These models use a 55 drive link chain).

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF20S055DL for 55 drive link

applications or GAF20S056DL for 56 drive link applications. For a semi-professional

laminated multi-rivet sprocket nose version of this guide bar use our part number

GAFAD1620EL. For a 55 drive link bar and chain combo option use our part number

GAF105703. Replaces our part number OMK160SDEA074.

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF20S055DL for 55 drive link

applications or GAF20S056DL for 56 drive link applications. For a semi-professional

laminated multi-rivet sprocket nose version of this guide bar use our part number

GAFAD1620EL. For a 55 drive link bar and chain combo option use our part number

GAF105703. Replaces our part number OMK160SDEA074.

Brand: PROKUT, GA Forestry Accessories

Product Line: Bar, guide bar, laminated guide bar, sprocket nose guide bar,

Installation

We are currently updating all installation instructions so please contact us if you need installation assistance whilst we collate additional information.
