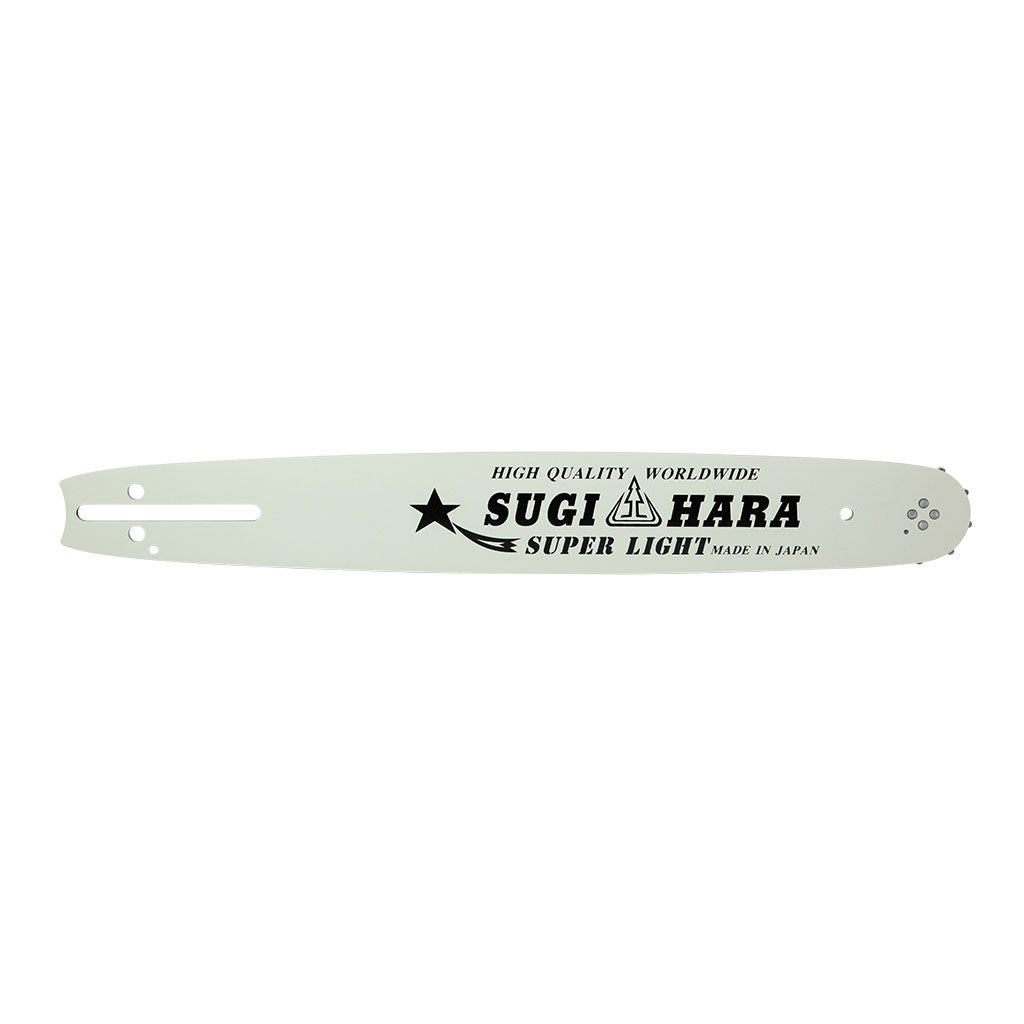

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 16 #20 AD

Description: PROKUT PLATINUM SUGIHARA Super Light, 16" x 3/8" Low Pro x .050" x 55 DL Or 56 DL, AD Mount - Pro Laminated Multi-Rivet Sprocket Nose Guide Bar - Made In Japan

Editorial: PROKUT Sugihara Pro Laminated multi-rivet sprocket nose guide bars are super light to use but are still one of the the strongest and longest wearing laminated bars on the market.

Features: Pro Laminated multi-rivet sprocket nose guide bar.

Small radius nose helps reduce kickback.

Excellent rail strength for long life.

Light-weight slim contour, for excellent manoeuvrability.

Narrow cut (kerf) cutting systems require less power from the saw than standard cutting systems.

All PROKUT guide bars are reversible for longer life.

Length: (in) 16"

Length: (cm) 40 cm

Pitch: 3/8" Low Pro.

Bar Type: Pro Laminated Multi-Rivet Sprocket Nose Guide Bar

Chain / Cutter Type: 20S / Semi-Chisel.

Bar Mount Type: AD

Gauge: .050"

Drive Link Count: 55 (most) or 56 (some).

Teeth: 9 Tooth sprocket nose.

Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)

Fits: Alpina 361, 391 models. (These models use a 56 drive link chain).

Fits: Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F, OLE 300 models. (These models use a 55 drive link chain).

Fits: STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER, 020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS 171,MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS 191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 C, MS 201 T, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS 220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ, MSE 200. (The

Fits: STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE, MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 C as a NARROW CUT option. (These models use a 55 drive link chain).

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part numbers GAF20S055DL for 55 drive link applications or GAF20S056DL for 56 drive link applications. For a consumer laminated single rivet sprocket nose guide bar option use our part number GAFAD1620DL. For a semi-professional laminated multi-rivet sprocket nose guide bar option use our part number GAFAD1620EL. For a 55 drive link bar and chain combo option containing a semi-professional multi-rivet sprocket nose laminated bar use our part number GAF105703.

Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories,

Product Line: Bar, Guide Bar, Laminated Guide Bar, Sprocket Nose Guide Bar,
