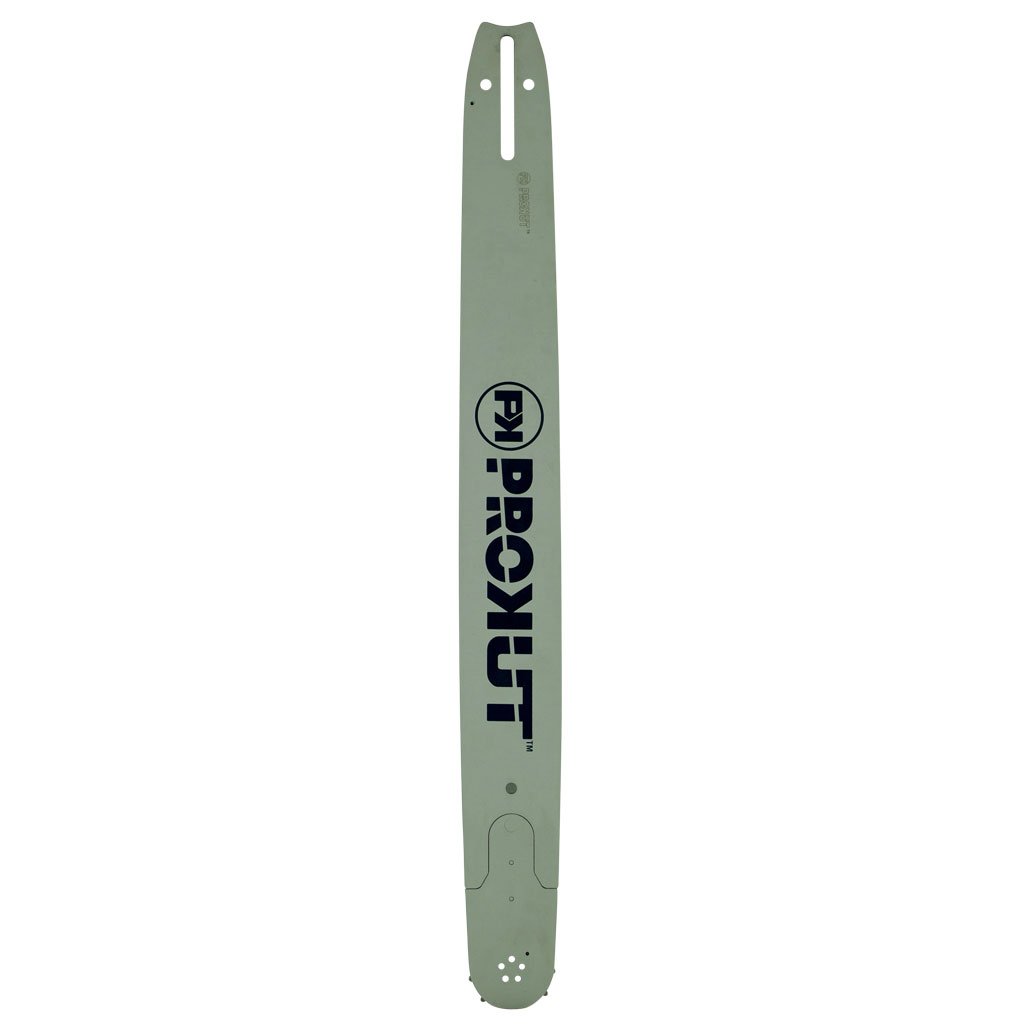

Description: PROKUT™ 16" x .325" x .050" x 66 DL, BA Mount, Solid Professional Replaceable
Sprocket Nose Guide Bar
Replaces OEM: OREGON® 160RNBK041
Replaces OEM: OREGON® 160RNBK041
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT™ guide bars are reversible for longer life
Features: • Solid professional replaceable sprocket nose guide bar
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT™ guide bars are reversible for longer life
Length: (in): 16"
Length: (in): 16"
Length: (cm): 40 cm
Pitch: .325"
Bar Type: Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 30S / Semi-Chisel or 30F / Full-Chisel
Bar Mount Type: BA
Gauge: .050"
Drive Link Count: 66
Teeth: 12 Tooth sprocket nose
Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
CS-3600, CS-3700ES, CS-3900, CS-4000, CS-4100, CS-4200ES, CS-4400, CS-4500,
CS-4600, CS-5000 and CS-5100 models.
Fits: Echo 400, 440, 4000, 4500, CS-400, CS-400EVL, CS-440, CS-440EVL, CS-510, CS-520,
CS-3600, CS-3700ES, CS-3900, CS-4000, CS-4100, CS-4200ES, CS-4400, CS-4500,
CS-4600, CS-5000 and CS-5100 models.
models. Note: Please check your saw carefully prior to ordering, some of the above
saw models were also released fitted with a 3/8" pitch chain.
Fits: Homelite 25, 27, 4100, 4150, 4500, 4550, CSP4518, CSP4520, d4550b, i3850b, i4150b,
i4550b, SUPER 240, TIMBERMAN, UT10518, UT10519, UT10520, UT10522, UT10526, UT10550,
UT10552, UT10896, UT10910, UT10927A, UT10942A, UT10946A, ZR10520 and ZR10522
models. Note: Please check your saw carefully prior to ordering, some of the above
saw models were also released fitted with a 3/8" pitch chain.
some of the above saw models were also released fitted with a 3/8" pitch chain.
Fits: John Deere 45EV, 46EV, 300CS and 450V models.
500, 502S. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a 3/8" pitch chain.
Fits: Jonsered 2014, 2016, 2036, 2036 Turbo, 2040, 2040 Turbo, 2041, 2141 and CS 2141
models. Note: Please check your saw carefully prior to ordering, some of these saw
models were also released fitted with a 3/8" pitch chain.
Fits: Poulan / Poulan Pro 285, 295, 305, 306SA, 310, 315, 335 PREDATOR, 336, 2700, 2750,
2775, 2800, 2900, 2900 FARM HAND, 2900FH, 3000, 3050, 3100, 3300, 4600, 4620,
4620AV and 4620AVX models. Note: Please check your saw carefully prior to ordering,
some of the above saw models were also released fitted with a 3/8" pitch chain.
Fits: Ryobi PCN4040, PCN4040KB, PCN4545, PCN4545KB and PCN4550 models.
Fits: Shindaiwa 360, 366, 377, 400, 415, 416, 446, 446S, 450, 451, 488, 488PI, 488S, 490,
500, 502S. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a 3/8" pitch chain.
Fits: Tanaka ECS-415, ECS-4000, ECS-4000B, ECV-3801, ECV-4501, TCS40EA and TCS51EAP
models.
Fits: Zenoah G415 and GZ4000 models.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF30S066DL or our full-chisel
chain loop part number GAF30F066DL. For a semi-professional laminated multi-rivet
sprocket nose guide bar option use our part number GAFBA1630PL. For a bar and chain
combo option containing a semi-professional laminated multi-rivet sprocket nose
guide bar use our part number GAF105711. Replaces our part number OMK160RNBK041
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF30S066DL or our full-chisel
chain loop part number GAF30F066DL. For a semi-professional laminated multi-rivet
sprocket nose guide bar option use our part number GAFBA1630PL. For a bar and chain
combo option containing a semi-professional laminated multi-rivet sprocket nose
guide bar use our part number GAF105711. Replaces our part number OMK160RNBK041
Brand: PROKUT™, GA Forestry Accessories™
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
