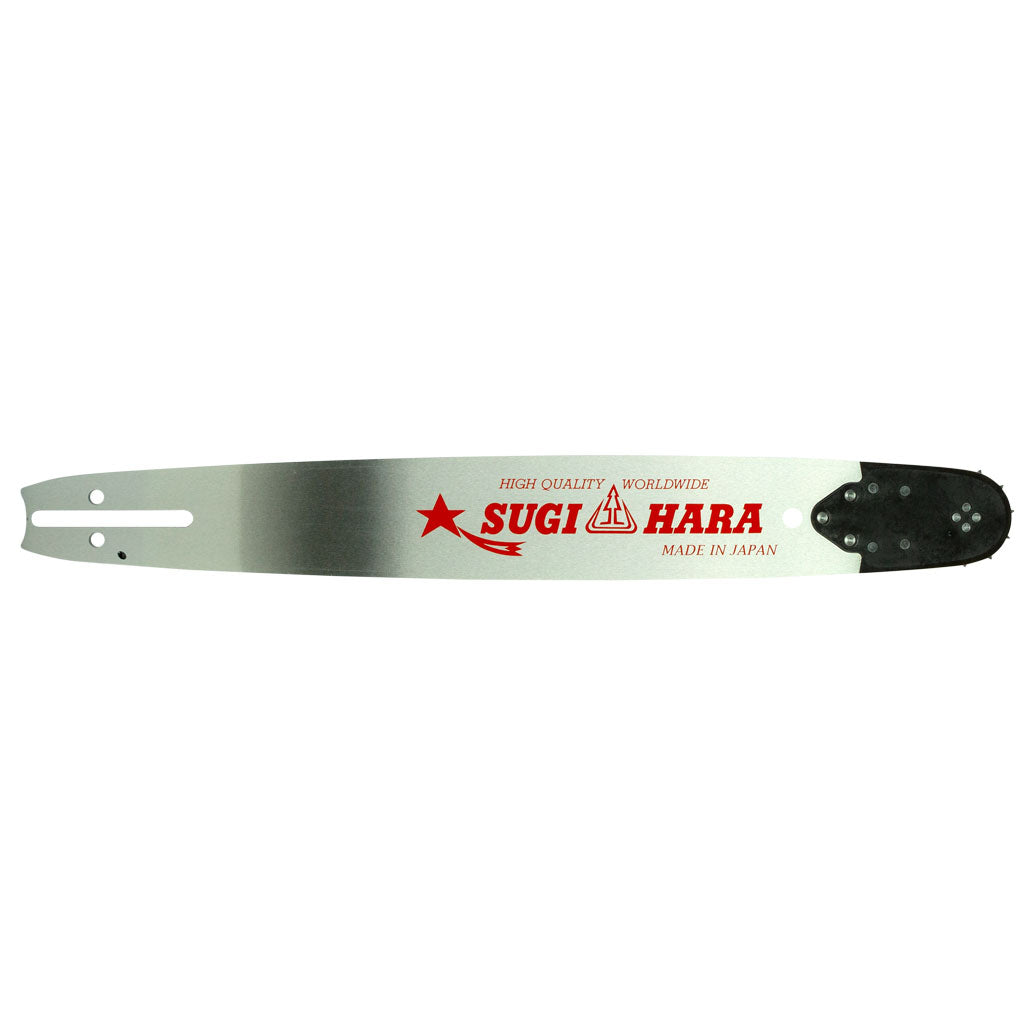

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 16 #38 BB

FORESTRY-G  |  SKU: GAFBB1638RSP

$151.45
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 16 #38 BB

Specifications

Description: PROKUT PLATINUM SUGIHARA 16" x .325" x .058" x 66 DL, 67DL Or 68DL BB Mount, Solid

Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

Replaces OEM: Oregon 168RNBK095

Sugihara - Diatop BC3T-8J40-A

Features: Professional premium quality, solid, replaceable sprocket nose guide bar.

Replaces OEM: Oregon 168RNBK095

Sugihara - Diatop BC3T-8J40-A

High durability sprocket nose.

Polished lacquered finish.

Nose fastens with three rivets, and is securely held by wide and strong overlapping

ears.

The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body.

Super tough steel, heat treated up to 4 times on different parts of the guide bar,

provides superior bar-body strength and tough rails with excellent resistance to

wear and chipping.

PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.

Made in Japan.

All PROKUT guide bars are reversible for longer life.

Features: Professional premium quality, solid, replaceable sprocket nose guide bar.

Manufactured from a single piece of steel, featuring superior durability and

stiffness characteristics.

High durability sprocket nose.

Polished lacquered finish.

Nose fastens with three rivets, and is securely held by wide and strong overlapping

ears.

The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body.

Super tough steel, heat treated up to 4 times on different parts of the guide bar,

provides superior bar-body strength and tough rails with excellent resistance to

wear and chipping.

PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.

Made in Japan.

All PROKUT guide bars are reversible for longer life.

Length: (in): 16"

Length: (in): 16"

Length: (cm): 40 cm

Pitch: .325"

Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 38S / Semi-Chisel or 38F / Full-Chisel

Bar Mount Type: BB

Gauge: .058"

Drive Link Count: 66 (mostly), 67 (Some) Or 68 DL (some), [as detailed in model fitment]

Teeth: 11 Tooth sprocket nose

Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)

chain).

Fits: Alpina 460, 510, 540 and 550 model chainsaws (These models use a 66 drive link

chain).

use a 66 drive link chain). Note: Please check your saw carefully prior to

ordering, some of the above saw models were also released fitted with a 3/8" pitch

chain. PS410 After Serial # 34576 & PS411 After Serial # 33571 use NARROW CUT only.

Fits: Dolmar 109, 109HS, 110, 110i, 111, 111i, 115, 115i, PS-410, PS-411, PS-460, PS-510,

PS-540, PS-5000 D, PS-5100 S, PS-5105 and PS-5105 H model chainsaws (These models

use a 66 drive link chain). Note: Please check your saw carefully prior to

ordering, some of the above saw models were also released fitted with a 3/8" pitch

chain. PS410 After Serial # 34576 & PS411 After Serial # 33571 use NARROW CUT only.

340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,

353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,

435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e

RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,

555, 560 XP, 560 XPG, 1200 Electric, 1400 Electric, 1500 Electric, 1600 Electric,

1800 Electric and H318 model chainsaws (These models use a 66 drive link chain).

Fits: Efco 141SP, 147, 152, 156, 165 and MT 5200 model chainsaws (These models use a 66

drive link chain).

Fits: Fairmont Hydraulic 38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513 and

LIMBLOPPER model chainsaws (These models use a 66 drive link chain).

SILVER EAGLE: 2818, 3020 and TIMBER BEAR 20 (later models) model chainsaws [These

models use a 66 drive link chain].

Fits: Husqvarna 33, 40, 41, 42, 44, 45, 49, 50, 51, 55, 55 RANCHER, 57, 133, 140, 154,

234, 238, 240, 242, 242 XP, 246, 254, 254 XP, 257, 261, 262, 262 XP, 336, 339 XP,

340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,

353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,

435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e

RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,

555, 560 XP, 560 XPG, 1200 Electric, 1400 Electric, 1500 Electric, 1600 Electric,

1800 Electric and H318 model chainsaws (These models use a 66 drive link chain).

and 962 model chainsaws (These models use a 66 drive link chain).

Fits: Jonsered 45, 49, 50, 51, 52, 370, 410, 420, 425, 435, 450, 451, 455, 510, 521, 525,

535, 2050, 2050 TURBO, 2051, 2054, 2055, 2149, 2149 TURBO, CS2141, CS2141S, CS2145,

CS2145S, CS2149 TURBO, CS2150, CS2152 W, CS2153, CS2156, CS2159, CS2159C, CS2159WH,

CS2163, CS2240, CS2245, CS2250, CS2250S and CS2255 model chainsaws (These models

use a 66 drive link chain). Note: Please check your saw carefully prior to

ordering, some of the above saw models were also released fitted with a 3/8" pitch

chain.

Fits: Makita DCS 430, DCS 431, DCS 460, DCS 510, DCS 520i, DCS 540, DCS5121 and DCS 5200i

model chainsaws (These models use a 66 drive link chain). Note: Please check your

saw carefully prior to ordering, some of the above saw models were also released

fitted with a 3/8" pitch chain.

Fits: Makita DCS410, DCS411, DCS430 model chainsaws (These models use a 66 drive link

chain). Note: DCS410 After Serial # 34576 & DCS411 After Serial # 33661 use NARROW

CUT only.

Fits: McCulloch 1849 AV, 2046 AV, 2049 AV, 4600, 4700, 4900, 5000, 5500, MAC 2818 AV, MS

1846 AV, MS 1849 AV, MS 1850, MS 2046 AV, MS 2046 AVCC, MS 2049, MS 2049 AV, MS

2049 AVCC, MS2050, PM 1845 AV, Pro Mac: 40, 46. PM4300, PM4700, PM5000, PM5200,

SILVER EAGLE: 2818, 3020 and TIMBER BEAR 20 (later models) model chainsaws [These

models use a 66 drive link chain].

Fits: MTD 152 model chainsaws (These models use a 68 drive link chain).

654, 656 and 656 SP model chainsaws (These models use a 67 drive link chain).

models were also released fitted with a 3/8" pitch chain.

Fits: Oleo-Mac 925F, 938, 940C, 941, 941 CX, 942, 945, 946, 947, 947F, 950, 951, 952, 956

and 962 model chainsaws (These models use a 66 drive link chain).

Fits: Opem K1 and K2 model chainsaws (These models use a 66 drive link chain).

Fits: Parklander GL4500M-18 model chainsaws (These models use a 66 drive link chain).

Fits: Partner 360, 400, P-360, P-400, P-450, P-500 and P-5000 model chainsaws (These

models use a 66 drive link chain).

Fits: Pioneer 1074, P-21, P-26 and P-28 model chainsaws (These models use a 66 drive link

chain).

Fits: Poulan / Poulan Pro 325, PP5118 model chainsaws (These models use a 66 drive link

chain).

Fits: Redmax G390, G450AVS, G455AVS, G5000, G5000AVS and G5300 model chainsaws (These

models use a 66 drive link chain).

Please Note: Use with our semi-chisel chain loop part number GAF38S066DL or our full-chisel

chain loop part number GAF38F066DL for 66 drive link applications. Use with our

semi-chisel chain loop part number GAF38S067DL or our full-chisel chain loop part

number GAF38F067DL for 67 drive link applications. Use with our semi-chisel chain

loop part number GAF38S068DL or our full-chisel chain loop part number GAF38F068DL

for 68 drive link applications. For a standard solid professional replaceable

sprocket nose guide bar option use our part number GAFBB1638RS. For a

semi-professional laminated multi-rivet sprocket nose guide bar option use our part

number GAFBB1638PL. For a bar and chain combo option containing a semi-professional

laminated multi-rivet sprocket nose guide bar and a 66 DL chain use our part number

GAF105712.

Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories

Fits: Ryobi RFS4518 and RFS5418 model chainsaws (These models use a 66 drive link chain).

Fits: Sina SCS4500I model chainsaws (These models use a 66 drive link chain).

Fits: Solo 613, 614, 631, 632, 634, 638, 639, 641, 644, 645, 647, 650, 651, 651 SP, 652,

654, 656 and 656 SP model chainsaws (These models use a 67 drive link chain).

Fits: Stanley Hydraulic CS05 and CS06 model chainsaws (These models use a 66 drive link

chain). Note: Please check your saw carefully prior to ordering, some of these saw

models were also released fitted with a 3/8" pitch chain.

Fits: Tanaka ECV 5601 model chainsaws (These models use a 66 drive link chain).

Fits: Zenoah G390, G450AVS, G455, G455AVS, G500, G5000, G5000AVS and G5300 model

chainsaws (These models use a 66 drive link chain).

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF38S066DL or our full-chisel

chain loop part number GAF38F066DL for 66 drive link applications. Use with our

semi-chisel chain loop part number GAF38S067DL or our full-chisel chain loop part

number GAF38F067DL for 67 drive link applications. Use with our semi-chisel chain

loop part number GAF38S068DL or our full-chisel chain loop part number GAF38F068DL

for 68 drive link applications. For a standard solid professional replaceable

sprocket nose guide bar option use our part number GAFBB1638RS. For a

semi-professional laminated multi-rivet sprocket nose guide bar option use our part

number GAFBB1638PL. For a bar and chain combo option containing a semi-professional

laminated multi-rivet sprocket nose guide bar and a 66 DL chain use our part number

GAF105712.

Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories

Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket

nose guide bar,
