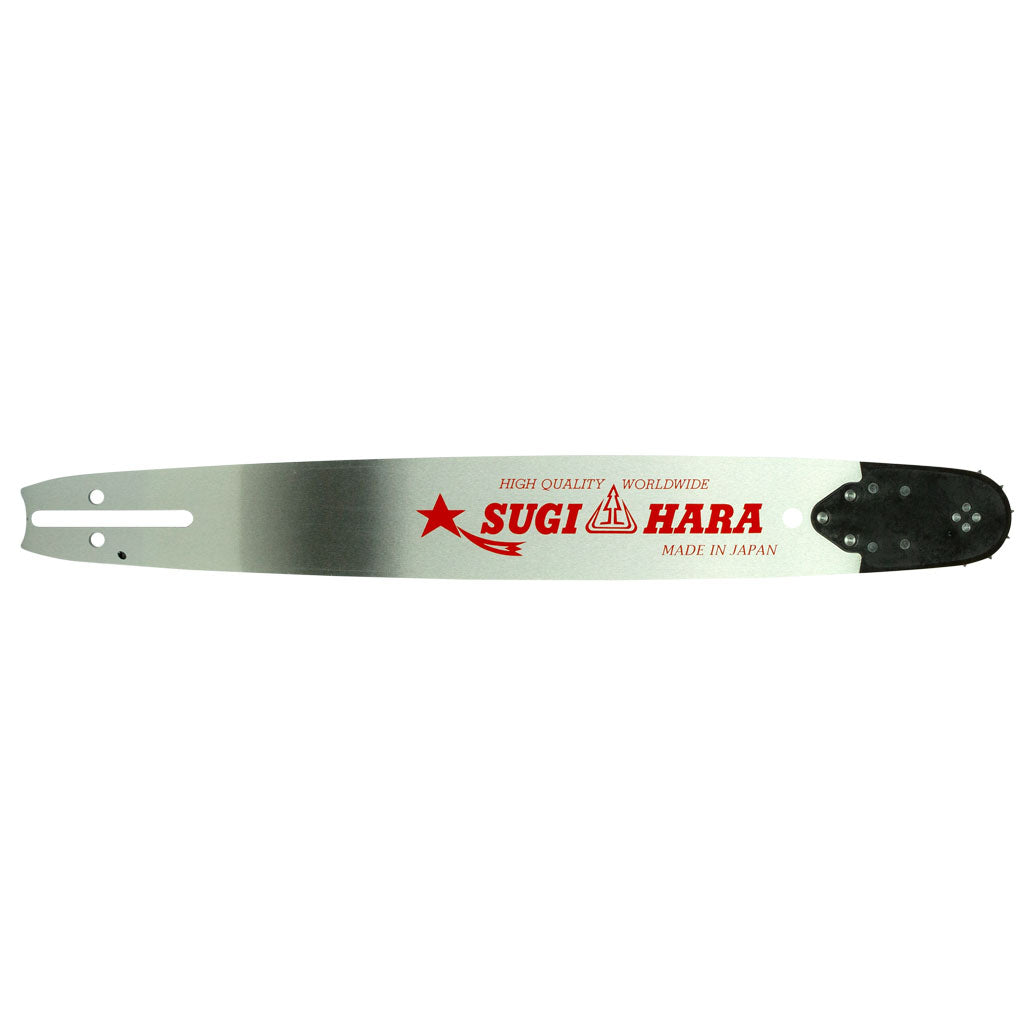

Description: PROKUT PLATINUM SUGIHARA 18" x .325" x .058" x 72 DL, BB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 188RNBK095
Sugihara - Diatop BC3T-8J45-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Replaces OEM: Husqvarna 582 08 69-72,
Oregon 188RNBK095,
Sugihara - Diatop BC3T-8J45-A,
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 18"
Length: (in): 18"
Length: (cm): 45 cm
Pitch: .325"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 38S / Semi-Chisel or 38F / Full-Chisel
Bar Mount Type: BB
Gauge: .058"
Drive Link Count: 72
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
Fits: Alpina 460, 510, 540 and 550 model chainsaws.
PS-540, PS-5000 D, PS-5100 S, PS-5105 and PS-5105 H model chainsaws. Note: Please
check your saw carefully prior to ordering, some of the above saw models were also
released fitted with a 3/8" pitch chain. PS410 After Serial # 34576 & PS411 After
Serial # 33571 use NARROW CUT only.
Fits: BUSHRANGER CS5210 model chainsaws.
LIMBLOPPER model chainsaws.
Fits: Dolmar 109, 109HS, 110, 110i, 111, 111i, 115, 115i, PS-410, PS-411, PS-460, PS-510,
PS-540, PS-5000 D, PS-5100 S, PS-5105 and PS-5105 H model chainsaws. Note: Please
check your saw carefully prior to ordering, some of the above saw models were also
released fitted with a 3/8" pitch chain. PS410 After Serial # 34576 & PS411 After
Serial # 33571 use NARROW CUT only.
RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,
555, 560 XP, 560 XPG, 1200 Electric, 1400 Electric, 1500 Electric, 1600 Electric,
1800 Electric and H318 model chainsaws.
Fits: Efco 141SP, 147, 152, 156, 165 and MT 5200 model chainsaws.
Fits: Fairmont Hydraulic 38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513 and
LIMBLOPPER model chainsaws.
2049 AVCC, MS2050, PM 1845 AV, Pro Mac: 40, 46. PM4300, PM4700, PM5000, PM5200,
SILVER EAGLE: 2818, 3020 and TIMBER BEAR 20 (later models) model chainsaws.
Fits: Husqvarna 33, 40, 41, 42, 44, 45, 49, 50, 51, 55, 55 RANCHER, 57, 133, 140, 154,
234, 238, 240, 242, 242 XP, 246, 254, 254 XP, 257, 261, 262, 262 XP, 336, 339 XP,
340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,
353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,
435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e
RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,
555, 560 XP, 560 XPG, 1200 Electric, 1400 Electric, 1500 Electric, 1600 Electric,
1800 Electric and H318 model chainsaws.
Fits: Jonsered 45, 49, 50, 51, 52, 370, 410, 420, 425, 435, 450, 451, 455, 510, 521, 525,
535, 2050, 2050 TURBO, 2051, 2054, 2055, 2149, 2149 TURBO, CS2141, CS2141S, CS2145,
CS2145S, CS2149 TURBO, CS2150, CS2152 W, CS2153, CS2156, CS2159, CS2159C, CS2159WH,
CS2163, CS2240, CS2245, CS2250, CS2250S and CS2255 model chainsaws. Note: Please
check your saw carefully prior to ordering, some of the above saw models were also
released fitted with a 3/8" pitch chain.
Fits: Makita DCS 430, DCS 431, DCS 460, DCS 510, DCS 520i, DCS 540, DCS5121 and DCS 5200i
model chainsaws. Note: Please check your saw carefully prior to ordering, some of
the above saw models were also released fitted with a 3/8" pitch chain.
Fits: Makita DCS410, DCS411, DCS430 model chainsaws. Note: DCS410 After Serial # 34576 &
DCS411 After Serial # 33661 use NARROW CUT only.
Fits: McCulloch 1849 AV, 2046 AV, 2049 AV, 4600, 4700, 4900, 5000, 5500, MAC 2818 AV, MS
1846 AV, MS 1849 AV, MS 1850, MS 2046 AV, MS 2046 AVCC, MS 2049, MS 2049 AV, MS
2049 AVCC, MS2050, PM 1845 AV, Pro Mac: 40, 46. PM4300, PM4700, PM5000, PM5200,
SILVER EAGLE: 2818, 3020 and TIMBER BEAR 20 (later models) model chainsaws.
654, 656 and 656 SP model chainsaws.
Fits: MTD 152 model chainsaws.
with a 3/8" pitch chain.
Fits: Oleo-Mac 925F, 938, 940C, 941, 941 CX, 942, 945, 946, 947, 947F, 950, 951, 952, 956
and 962 model chainsaws.
Fits: Opem K1 and K2 model chainsaws.
Fits: Parklander GL4500M-18 model chainsaws.
Fits: Partner 360, 400, P-360, P-400, P-450, P-500 and P-5000 model chainsaws.
Fits: Pioneer 1074, P-21, P-26 and P-28 model chainsaws.
Fits: Poulan / Poulan Pro 325 and PP5118 model chainsaws.
chain loop part number GAF38F072DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFBB1838RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFBB1838PL. For a bar and chain combo option containing a semi-professional
laminated multi-rivet sprocket nose guide bar use our part number GAF105713.
Fits: Redmax G390, G450AVS, G455AVS, G5000, G5000AVS and G5300 model chainsaws.
nose guide bar,
Fits: Ryobi RFS4518 and RFS5418 model chainsaws.
Fits: Sina SCS4500I model chainsaws.
Fits: Solo 613, 614, 631, 632, 634, 638, 639, 641, 644, 645, 647, 650, 651, 651 SP, 652,
654, 656 and 656 SP model chainsaws.
Fits: Stanley Hydraulic CS05 and CS06 model chainsaws. Note: Please check your saw
carefully prior to ordering, some of these saw models were also released fitted
with a 3/8" pitch chain.
Fits: Tanaka ECV 5601 model chainsaws.
Fits: Zenoah G390, G450AVS, G455, G455AVS, G500, G5000, G5000AVS and G5300 model
chainsaws.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF38S072DL or our full-chisel
chain loop part number GAF38F072DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFBB1838RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFBB1838PL. For a bar and chain combo option containing a semi-professional
laminated multi-rivet sprocket nose guide bar use our part number GAF105713.
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
