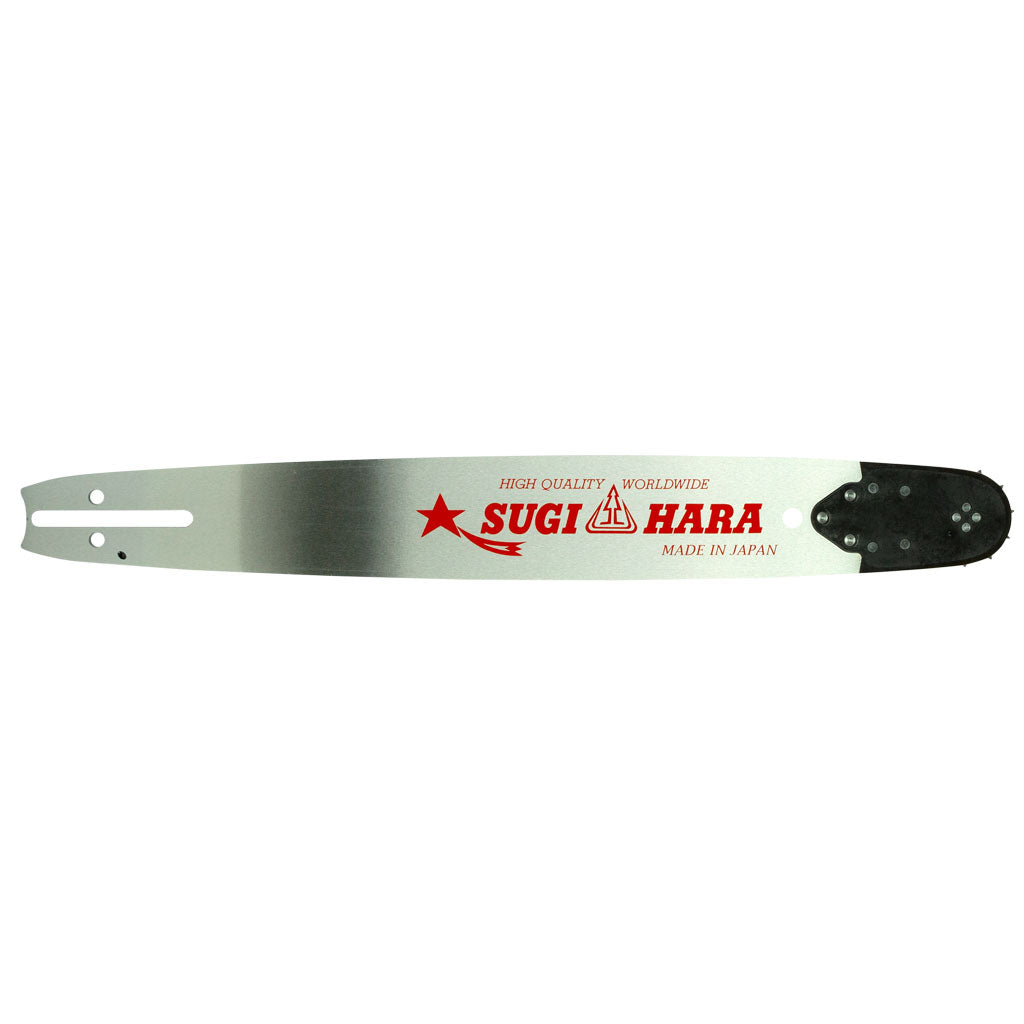

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 20 #38 BB

Description: PROKUT PLATINUM SUGIHARA 20 x .325" x .058" x *80 DL, BB Mount, Solid Professional

Replaceable Sprocket Nose Guide Bar - Made In Japan

Replaces OEM: Oregon 208RNBK095

Sugihara - Diatop BC3T-8J50-A

Features: Professional premium quality, solid, replaceable sprocket nose guide bar.

Replaces OEM: Husqvarna 582 08 69-80,

Oregon 208RNBK095

Sugihara - Diatop BC3T-8J50-A

Nose fastens with three rivets, and is securely held by wide and strong overlapping

ears.

The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body.

Super tough steel, heat treated up to 4 times on different parts of the guide bar,

provides superior bar-body strength and tough rails with excellent resistance to

wear and chipping.

PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.

Made in Japan.

All PROKUT guide bars are reversible for longer life.

Features: Professional premium quality, solid, replaceable sprocket nose guide bar.

Manufactured from a single piece of steel, featuring superior durability and

stiffness characteristics.

High durability sprocket nose.

Polished lacquered finish.

Nose fastens with three rivets, and is securely held by wide and strong overlapping

ears.

The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body.

Super tough steel, heat treated up to 4 times on different parts of the guide bar,

provides superior bar-body strength and tough rails with excellent resistance to

wear and chipping.

PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.

Made in Japan.

All PROKUT guide bars are reversible for longer life.

Length: (in): 20"

Length: (in): 20"

Length: (cm): 50 cm

Pitch: .325"

Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 38S / Semi-Chisel or 38F / Full-Chisel

Bar Mount Type: BB

Gauge: .058"

Drive Link Count: *80 (*please refer to notes after each fitment application)

Teeth: 11 Tooth sprocket nose

Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)

drive link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

Fits: *Alpina 460, 510, 540 and 550 models. *Please note these models were fitted with 78

drive link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these

applications. Note: Please check your saw carefully prior to ordering, some of the

above saw models were also released fitted with a 3/8" pitch chain. PS410 After

Serial # 34576 & PS411 After Serial # 33571 use NARROW CUT only.

Fits: *Dolmar 109, 109HS, 110, 110i, 111, 111i, 115, 115i, PS-410, PS-411, PS-460,

PS-510, PS-540, PS-5000 D, PS-5100 S, PS-5105 and PS-5105 H model chainsaws.

*Please note these models were fitted with 78 drive link chains from new. This

guide bar uses an 80 drive link chain and so the existing chain will require

lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these

applications. Note: Please check your saw carefully prior to ordering, some of the

above saw models were also released fitted with a 3/8" pitch chain. PS410 After

Serial # 34576 & PS411 After Serial # 33571 use NARROW CUT only.

RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,

555, 560 XP, 560 XPG, 1200 Electric 1400 Electric, 1500 Electric, 1600 Electric,

1800 Electric and H318 model chainsaws. *Please note these models were fitted with

78 drive link chains from new. This guide bar uses an 80 drive link chain and so

the existing chain will require lengthening (or replacing) to use this PROKUT

Platinum Sugihara guide bar on these applications.

Fits: *Efco 141SP, 147, 152, 156, 165 and MT 5200 model chainsaws. *Please note these

models were fitted with 78 drive link chains from new. This guide bar uses an 80

drive link chain and so the existing chain will require lengthening (or replacing)

to use this PROKUT Platinum Sugihara guide bar on these applications.

Fits: *Fairmont Hydraulic 38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513 and

LIMBLOPPER model chainsaws. *Please note these models were fitted with 78 drive

link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

uses an 80 drive link chain and so the existing chain will require lengthening (or

replacing) to use this PROKUT Platinum Sugihara guide bar on these applications.

Fits: *Husqvarna 33, 40, 41, 42, 44, 45, 49, 50, 51, 55, 55 RANCHER, 57, 133, 140, 154,

234, 238, 240, 242, 242 XP, 246, 254, 254 XP, 257, 261, 262, 262 XP, 336, 339 XP,

340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,

353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,

435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e

RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,

555, 560 XP, 560 XPG, 1200 Electric 1400 Electric, 1500 Electric, 1600 Electric,

1800 Electric and H318 model chainsaws. *Please note these models were fitted with

78 drive link chains from new. This guide bar uses an 80 drive link chain and so

the existing chain will require lengthening (or replacing) to use this PROKUT

Platinum Sugihara guide bar on these applications.

Sugihara guide bar on these applications.

Fits: *Jonsered 45, 49, 50, 51, 52, 370, 410, 420, 425, 435, 450, 451, 455, 510, 521,

525, 535, 2050, 2050 TURBO, 2051, 2054, 2055, 2149, 2149 TURBO, CS2141, CS2141S,

CS2145, CS2145S, CS2149 TURBO, CS2150, CS2152 W, CS2153, CS2156, CS2159, CS2159C,

CS2159WH, CS2163, CS2240, CS2245, CS2250, CS2250S and CS2255 model chainsaws.

*Please note these models were fitted with 78 drive link chains from new. This

guide bar uses an 80 drive link chain and so the existing chain will require

lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these

applications. Note: Please check your saw carefully prior to ordering, some of the

above saw models were also released fitted with a 3/8" pitch chain.

Fits: *Makita DCS 430, DCS 431, DCS 460, DCS 510, DCS 520i, DCS 540, DCS5121 and DCS

5200i model chainsaws. *Please note these models were fitted with 78 drive link

chains from new. This guide bar uses an 80 drive link chain and so the existing

chain will require lengthening (or replacing) to use this PROKUT Platinum Sugihara

guide bar on these applications. Note: Please check your saw carefully prior to

ordering, some of the above saw models were also released fitted with a 3/8" pitch

chain.

Fits: *Makita DCS410, DCS411, DCS430 model chainsaws. *Please note these models were

fitted with 78 drive link chains from new. This guide bar uses an 80 drive link

chain and so the existing chain will require lengthening (or replacing) to use this

PROKUT Platinum Sugihara guide bar on these applications. Note: DCS410 After Serial

# 34576 & DCS411 After Serial # 33661 use NARROW CUT only.

Fits: *McCulloch 1849 AV, 2046 AV, 2049 AV, 4600, 4700, 4900, 5000, 5500, MAC 2818 AV, MS

1846 AV, MS 1849 AV, MS 1850, MS 2046 AV, MS 2046 AVCC, MS 2049, MS 2049 AV, MS

2049 AVCC, MS2050, PM 1845 AV, Pro Mac: 40, 46. PM4300, PM4700, PM5000, PM5200,

SILVER EAGLE: 2818, 3020 and TIMBER BEAR 20 (later models) model chainsaws. *Please

note these models were fitted with 78 drive link chains from new. This guide bar

uses an 80 drive link chain and so the existing chain will require lengthening (or

replacing) to use this PROKUT Platinum Sugihara guide bar on these applications.

Fits: *MTD 152 model chainsaws. *Please note these models were fitted with 78 drive link

chains from new. This guide bar uses an 80 drive link chain and so the existing

chain will require lengthening (or replacing) to use this PROKUT Platinum Sugihara

guide bar on these applications.

Sugihara guide bar on these applications.

with a 3/8" pitch chain.

Fits: *Oleo-Mac 925F, 938, 940C, 941, 941 CX, 942, 945, 946, 947, 947F, 950, 951, 952,

956 and 962 model chainsaws. *Please note these models were fitted with 78 drive

link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

on these applications.

Fits: *Opem K1 and K2 model chainsaws. *Please note these models were fitted with 78

drive link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

Fits: *Parklander GL4500M-18 model chainsaws. *Please note these models were fitted with

78 drive link chains from new. This guide bar uses an 80 drive link chain and so

the existing chain will require lengthening (or replacing) to use this PROKUT

Platinum Sugihara guide bar on these applications.

Fits: *Partner 360, 400, P-360, P-400, P-450, P-500 and P-5000 model chainsaws. *Please

note these models were fitted with 78 drive link chains from new. This guide bar

uses an 80 drive link chain and so the existing chain will require lengthening (or

replacing) to use this PROKUT Platinum Sugihara guide bar on these applications.

Fits: *Pioneer 1074, P-21, P-26 and P-28 model chainsaws. *Please note these models were

fitted with 78 drive link chains from new. This guide bar uses an 80 drive link

chain and so the existing chain will require lengthening (or replacing) to use this

PROKUT Platinum Sugihara guide bar on these applications.

Fits: *Poulan / Poulan Pro 325 and PP5118 model chainsaws. *Please note these models were

fitted with 78 drive link chains from new. This guide bar uses an 80 drive link

chain and so the existing chain will require lengthening (or replacing) to use this

PROKUT Platinum Sugihara guide bar on these applications.

Fits: *Redmax G390, G450AVS, G455AVS, G5000, G5000AVS and G5300 model chainsaws. *Please

note these models were fitted with 78 drive link chains from new. This guide bar

uses an 80 drive link chain and so the existing chain will require lengthening (or

replacing) to use this PROKUT Platinum Sugihara guide bar on these applications.

sprocket nose guide bar option use our part number GAFBB2038PL (which uses a 78

drive link chain. Use this guide bar with our semi-chisel chain loop part number

GAF38S078DL or our full-chisel chain loop part number GAF38F078DL). For a bar and

chain combo option containing a semi-professional laminated multi-rivet sprocket

nose guide bar and 78 drive link semi-chisel chain use our part number GAF105714.

Replaces our part number OMK208RNBK095

Fits: *Ryobi RFS4518 and RFS5418 model chainsaws. *Please note these models were fitted

with 78 drive link chains from new. This guide bar uses an 80 drive link chain and

so the existing chain will require lengthening (or replacing) to use this PROKUT

Platinum Sugihara guide bar on these applications.

Fits: *Sina SCS4500I model chainsaws. *Please note these models were fitted with 78 drive

link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

Fits: *Solo 613, 614, 631, 632, 634, 638, 639, 641, 644, 645, 647, 650, 651, 651 SP, 652,

654, 656 and 656 SP model chainsaws. *Please note these models were fitted with 79

drive link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

Fits: *Stanley Hydraulic CS05 and CS06 model chainsaws. *Please note these models were

fitted with 78 drive link chains from new. This guide bar uses an 80 drive link

chain and so the existing chain will require lengthening (or replacing) to use this

PROKUT Platinum Sugihara guide bar on these applications. Note: Please check your

saw carefully prior to ordering, some of these saw models were also released fitted

with a 3/8" pitch chain.

Fits: *Tanaka ECV 5601 model chainsaws. *Please note these models were fitted with 78

drive link chains from new. This guide bar uses an 80 drive link chain and so the

existing chain will require lengthening (or replacing) to use this PROKUT Platinum

Sugihara guide bar on these applications.

Fits: *Zenoah G390, G450AVS, G455, G455AVS, G500, G5000, G5000AVS and G5300 model

chainsaws. *Please note these models were fitted with 78 drive link chains from

new. This guide bar uses an 80 drive link chain and so the existing chain will

require lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar

on these applications.

Standard Pack Quantity: 1

Please Note: For a standard PROKUT solid professional replaceable sprocket nose guide bar option

use our part number GAFBB2038RS (which uses a 78 drive link chain. Use this guide

bar with our semi-chisel chain loop part number GAF38S078DL or our full-chisel

chain loop part number GAF38F078DL). For a semi-professional laminated multi-rivet

sprocket nose guide bar option use our part number GAFBB2038PL (which uses a 78

drive link chain. Use this guide bar with our semi-chisel chain loop part number

GAF38S078DL or our full-chisel chain loop part number GAF38F078DL). For a bar and

chain combo option containing a semi-professional laminated multi-rivet sprocket

nose guide bar and 78 drive link semi-chisel chain use our part number GAF105714.

Replaces our part number OMK208RNBK095

Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories

Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket

nose guide bar,
