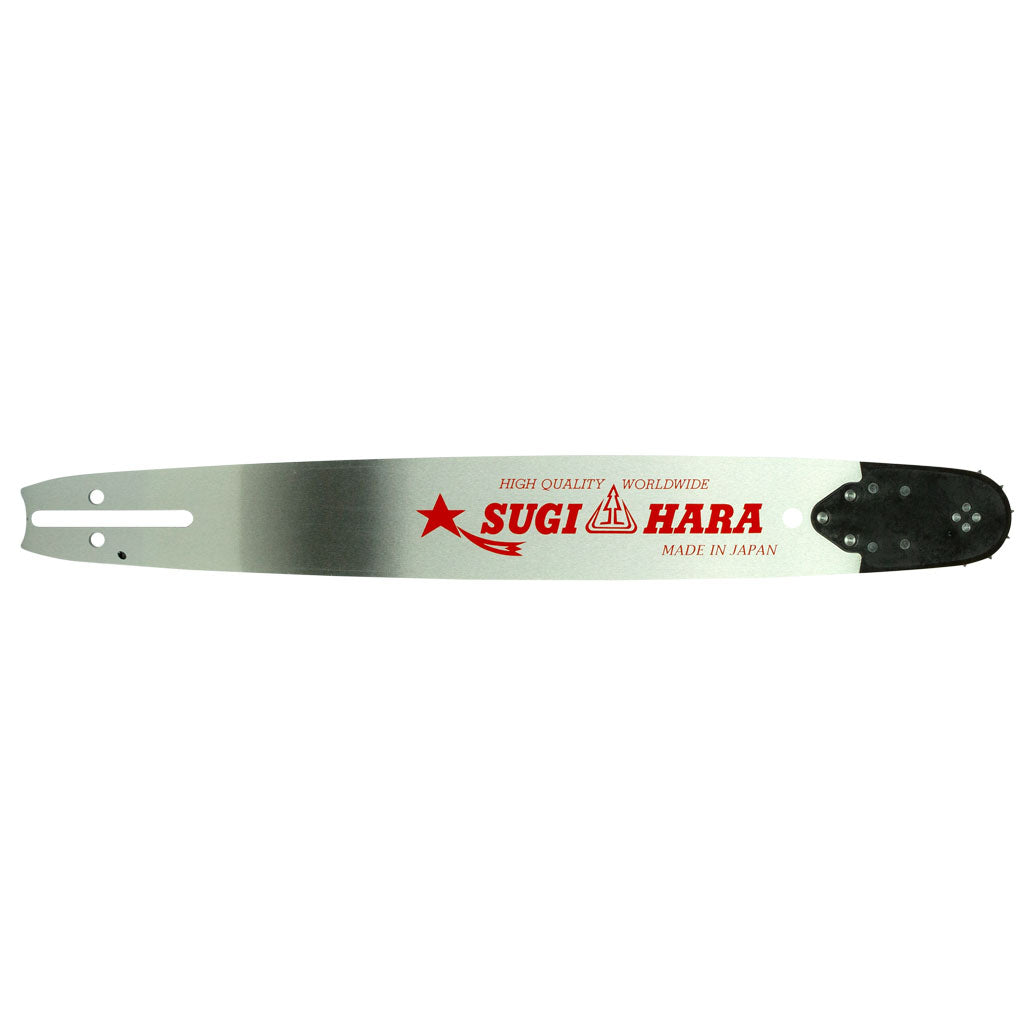

Description: PROKUT PLATINUM SUGIHARA 20" x 3/8" x .058" x 72 DL, BB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 208RNDK095
Diatop VH2T-8Q50-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Replaces OEM: Husqvarna 501 95 77-72,
Oregon 208RNDK095
Diatop VH2T-8Q50-A
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 20"
Length: (in): 20"
Length: (cm): 50 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 48S / Semi-Chisel or 48F / Full-Chisel
Bar Mount Type: BB
Gauge: .058"
Drive Link Count: 72
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits: Alpina 600, 650 and 660 model chainsaws.
PS-510, PS-540, PS-5000 D, PS-5100 S, PS-5105, PS-5105 H, PS-6000i and PS-6800i
model chainsaws. Note: Please check your saw carefully prior to ordering, some of
the above saw models were also released fitted with a .325" pitch chain.
Fits: Dolmar 110, 111, 111i, 112, 113, 114, 115, 115i, 116, 116si, 117, 118, 119, PS-460,
PS-510, PS-540, PS-5000 D, PS-5100 S, PS-5105, PS-5105 H, PS-6000i and PS-6800i
model chainsaws. Note: Please check your saw carefully prior to ordering, some of
the above saw models were also released fitted with a .325" pitch chain.
Fits: Dolmar 120, 120 super and 120si model chainsaws.
234, 238, 240, 242, 242 XP, 246, 254, 254 XP, 257, 261, 262, 262 XP, 336, 339 XP,
340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,
353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,
435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e
RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,
555, 560 XP, 560 XPG, 1200 Electric 1400 Electric, 1500 Electric, 1600 Electric,
1800 Electric and H318 model chainsaws.
Fits: Efco 156, 162 and 165 model chainsaws.
Fits: Fairmont Hydraulic HCS816, HCS820 and HCS824 model chainsaws.
to ordering, when new this model may have also been fitted with 3/8" pitch .063"
gauge chain.
Fits: Husqvarna 33, 40, 41, 42, 44, 45, 49, 50, 51, 55, 55 RANCHER, 57, 133, 140, 154,
234, 238, 240, 242, 242 XP, 246, 254, 254 XP, 257, 261, 262, 262 XP, 336, 339 XP,
340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,
353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,
435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e
RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,
555, 560 XP, 560 XPG, 1200 Electric 1400 Electric, 1500 Electric, 1600 Electric,
1800 Electric and H318 model chainsaws.
Fits: Jonsered 490, 520SP, 525, 535, 590, 2050, 2051, 2055, 2063, CS2149, CS2050, CS2050
TURBO, CS2054, CS2156, CS2159, CS2159 C, CS2159 CWH, CS2159 WH, 2163, CS2163,
CS2163 WH, CS2255 model chainsaws.. Note: Please check your saw carefully prior to
ordering, some of the above saw models were also released fitted with a .325" pitch
chain.
Fits: Makita DCS 460, DCS 510, DCS 520i, DCS 540, DCS5121, DCS 5200i, DCS 6000i,
EA5000P53G model chainsaws. Note: Please check your saw carefully prior to
ordering, some of the above saw models were also released fitted with a .325" pitch
chain.
Fits: MTD 162 model chainsaws.
Fits: Oleo-Mac 962, 962F, 971, 981 and 985HD model chainsaws.
Fits: Parklander GL5200M-20 model chainsaws. Note: Please check your saw carefully prior
to ordering, when new this model may have also been fitted with 3/8" pitch .063"
gauge chain.
Fits: Pioneer 1074, P-21, P-26 and P-28 model chainsaws. Note: Please check your saw
carefully prior to ordering, some of the above models were also released fitted
with a .325" pitch chain.
Fits: Sina SCS5200I model chainsaws.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF48S072DL or our full-chisel
chain loop part number GAF48F072DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFBB2048RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFBB2048PL.
Replaces our part number OMK208RNDK095
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF48S072DL or our full-chisel
chain loop part number GAF48F072DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFBB2048RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFBB2048PL.
Replaces our part number OMK208RNDK095
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
