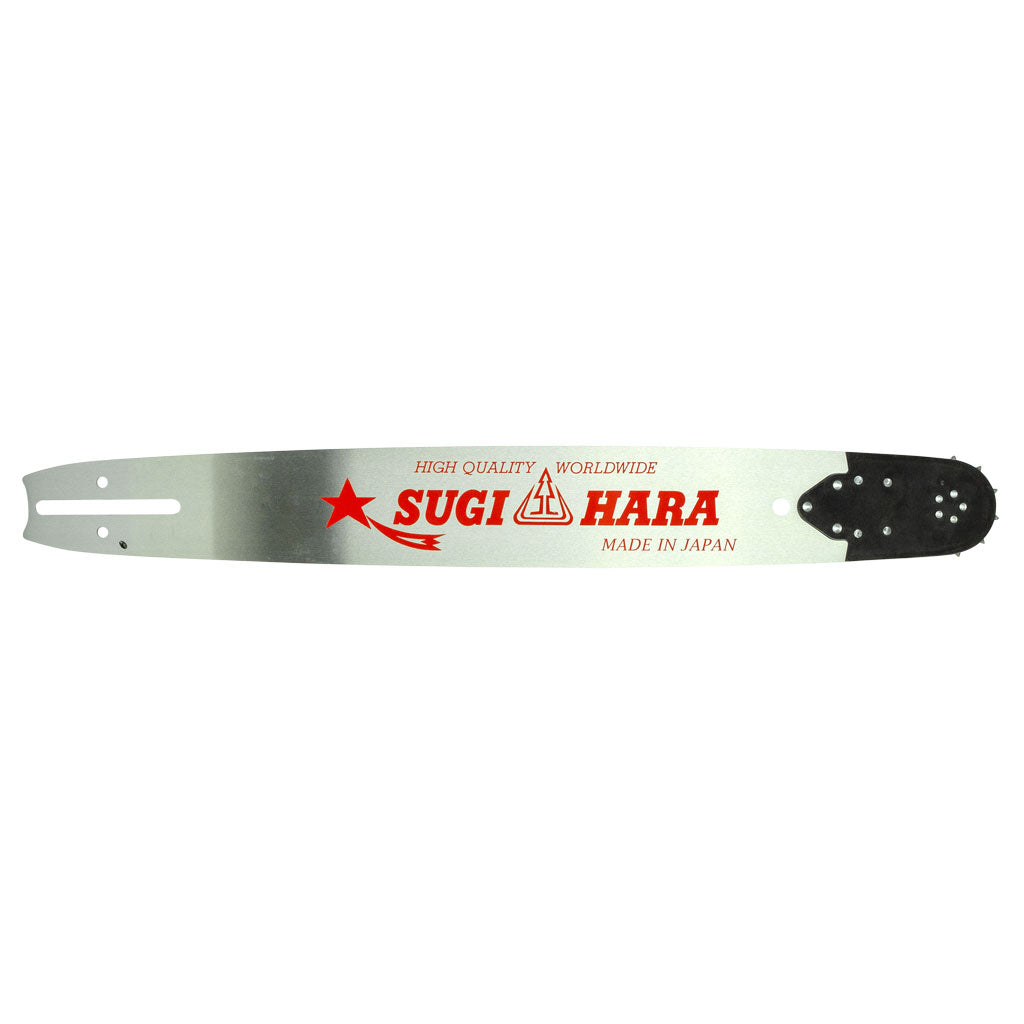

Description: PROKUT PLATINUM SUGIHARA 18" x 3/8" x .058" x 68 DL, CB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 188RNDD009
Sugihara - Diatop VT3T-8Q45-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Replaces OEM: Husqvarna 501 95 69-68,
Oregon 188RNDD009,
Sugihara - Diatop VT3T-8Q45-A,
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 18"
Length: (in): 18"
Length: (cm): 45 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 48S / Semi-Chisel or 48F / Full-Chisel
Bar Mount Type: CB
Gauge: .058"
Drive Link Count: 68
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits: Alpina 760 and P70 model chainsaws.
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.
Fits: Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288
XP LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP,
385 XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395
XPW, 465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576
XP AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65,
L 66, L 70 and L 77 model chainsaws.
Fits: Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.
Fits: Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288
XP LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP,
385 XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395
XPW, 465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576
XP AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65,
L 66, L 70 and L 77 model chainsaws.
Fits: Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071,
2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS
2186, CS 2186 WH and CS 2188 model chainsaws. Note: Please check your saw carefully
prior to ordering, some of the above saw models were also released fitted with a
.404" pitch chain.
Fits: Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL model
chainsaws. Note: Please check your saw carefully prior to ordering, some of these
saw models were also released fitted with a .404" pitch chain.
Fits: Opem K2 Super model chainsaws.
Fits: Partner 550, 650, 1655, 2055, 7000, P-55, P65, P70, P85, P-100, R-11, R-12, R-14,
R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416, R-420,
R-421, R-435, R-440, S-50, S-55 and S-65 model chainsaws.
Fits: Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. Note: Please check
your saw carefully prior to ordering, some of these saw models were also released
fitted with a .404" pitch chain.
Fits: Shindaiwa 550, 575, 577, 680, 695, 757, 757C and 757W model chainsaws.
Fits: Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF48S068DL or our full-chisel
chain loop part number GAF48F068DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCB1848RS. For a
PROKUT semi-professional laminated multi-rivet sprocket nose guide bar option use
our part number GAFCB1848PL. For a bar and chain combo option containing a
semi-professional laminated multi-rivet sprocket nose guide bar use our part number
GAF109117.
Replaces our part number OMK188RNDD009
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF48S068DL or our full-chisel
chain loop part number GAF48F068DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCB1848RS. For a
PROKUT semi-professional laminated multi-rivet sprocket nose guide bar option use
our part number GAFCB1848PL. For a bar and chain combo option containing a
semi-professional laminated multi-rivet sprocket nose guide bar use our part number
GAF109117.
Replaces our part number OMK188RNDD009
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
