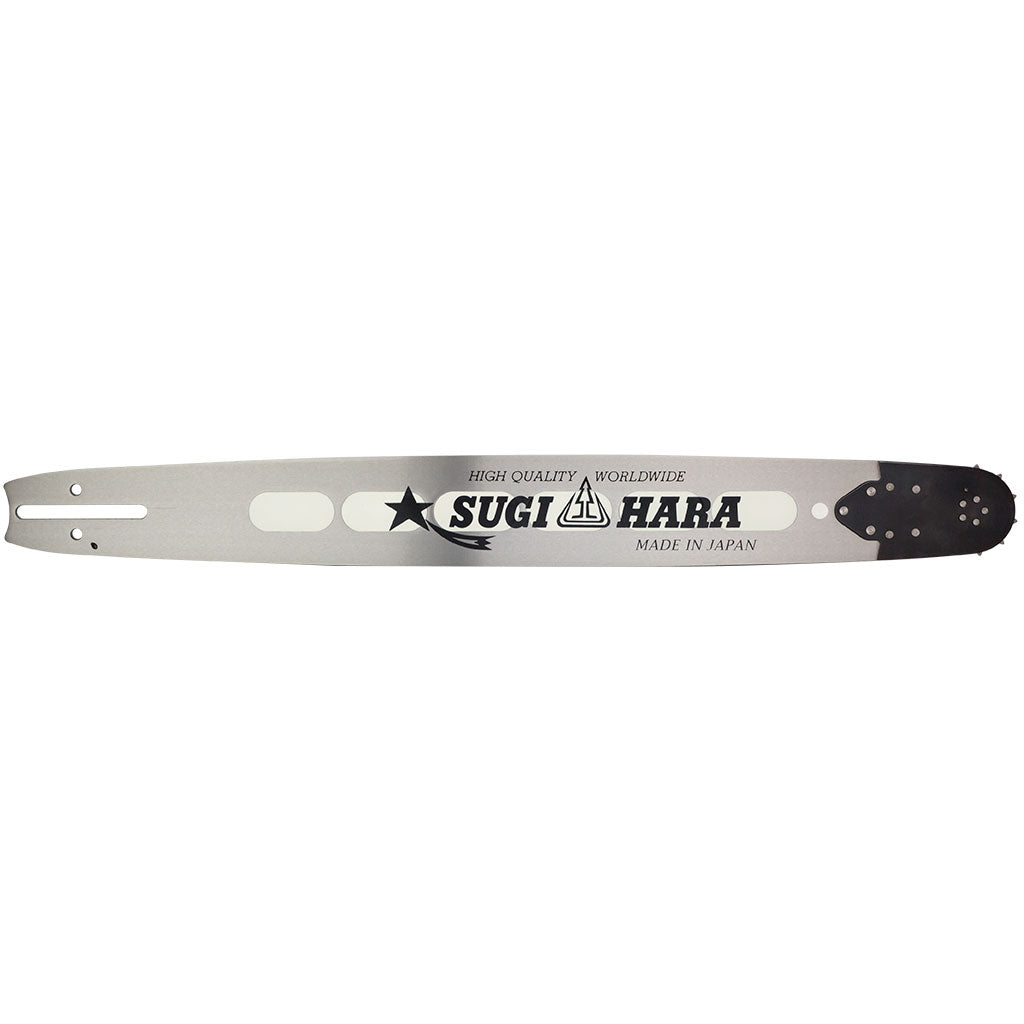

Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 24" x 3/8" x .058" x 82 DL, CB
Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are
manufactured In Japan from a single piece of steel. Manufactured the same way as
the Sugihara Red Label Pro Solid bars but with sections removed and filled with a
rigid, weight reducing resin. One of the best guide bars in the world today
Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular
version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars
are sought after for their high performance and light-weight. They are easily
recognised by the white resin sections and black label. The most striking looking
bar on the market.
Replaces OEM: Oregon 248RNDD009
Sugihara - Diatop VT3U-8Q61-A
Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily
recognised by the white resin sections and black label.
Manufactured the same way as the Sugihara Red Label Pro Solid bars but with
sections removed and filled with a rigid, weight reducing white resin.
This guide bar weighs just 1305g
Professional premium quality, reduced weight replaceable sprocket nose guide bar.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 24"
Length: (cm): 60 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 48S / Semi-Chisel or 48F / Full-Chisel
Bar Mount Type: CB
Gauge: .058"
Drive Link Count: *82 (*please refer to notes after each fitment application)
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits: *Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP
LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385
XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW,
465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP
AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L
66, L 70 and L 77 model chainsaws.
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065,
2071, 2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171
WH, CS 2186, CS 2186 WH and CS 2188 model chainsaws.
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Note: Please check your saw carefully prior to ordering, some of the above saw
models were also released fitted with a .404" pitch chain.
Fits: *Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL model
chainsaws.
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
Fits: *Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws.
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
Fits: *Shindaiwa 550, 575, 577, 680, 695, 757, 757C and 757W model chainsaws.
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
Product Line Notes: *Please note these models were fitted with 84 drive link chains from new. This
guide bar uses an 82 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Standard Pack Quantity: 1
Note: Replaces our 84 drive link guide bar part number OMK248RNDD009.
Please Note: Use with our semi-chisel chain loop part number GAF48S082DL or our full-chisel
chain loop part number GAF48F082DL. Other PROKUT bar options to fit the above
models Include: - For a PROKUT PLATINUM SUGIHARA solid professional replaceable
sprocket nose guide bar option (which is also made In Japan) use our part number
GAFCB2448RSP. For a standard PROKUT solid professional replaceable sprocket nose
guide bar option use our part number GAFCB2448RS (Which uses an 84 Drive link
chain. Use this guide bar with our semi-chisel chain loop part number GAF48S084DL
or our full-chisel chain loop part number GAF48F084DL). For a standard PROKUT .063"
gauge version of this guide bar use our part number GAFCB2443RS (Which uses an 84
drive link chain. Use this guide bar with our semi-chisel chain loop part number
GAF43S084DL or our full-chisel chain loop part number GAF43F084DL).
