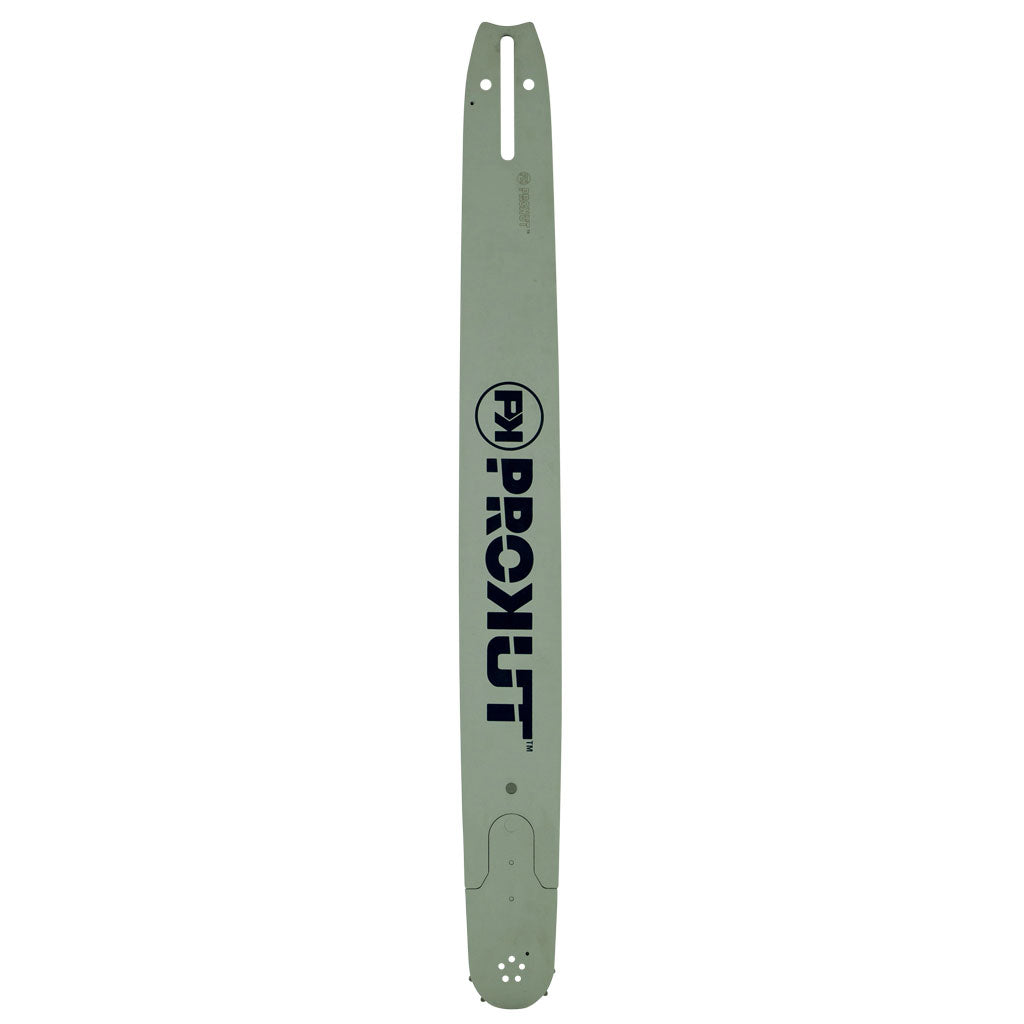

PROKUT SPROCKET NOSE GUIDE BAR 24 #53 CB

Description: PROKUT™ 24" x .404" x .063" x 76 DL, CB Mount, Solid Professional Replaceable

Sprocket Nose Guide Bar

Replaces OEM: OREGON® 243RNFD009

Replaces OEM: OREGON® 243RNFD009

• Nose fastens with a single rivet, and is securely held by wide and strong

overlapping ears

• The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body

• Super tough chrome-moly steel provides superior bar-body strength and tough

rails with excellent resistance to wear and chipping

• All PROKUT™ guide bars are reversible for longer life

Features: • Solid professional replaceable sprocket nose guide bar

• Nose fastens with a single rivet, and is securely held by wide and strong

overlapping ears

• The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body

• Super tough chrome-moly steel provides superior bar-body strength and tough

rails with excellent resistance to wear and chipping

• All PROKUT™ guide bars are reversible for longer life

Length: (in): 24"

Length: (in): 24"

Length: (cm): 60 cm

Pitch: .404"

Bar Type: Solid Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 53S / Semi-Chisel or 53F / Full-Chisel

Bar Mount Type: CB

Gauge: .063"

Drive Link Count: 76

Teeth: 10 Tooth sprocket nose

Recommended Saw Sizes: 65 cc and larger (4.0 cu. in.)

371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,

390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,

570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,

2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models.

Fits: Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,

371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,

390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,

570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,

2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models.

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF53S076DL or our full-chisel

chain loop part number GAF53F076DL. Replaces our part number OMK243RNFD009

nose guide bar,

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF53S076DL or our full-chisel

chain loop part number GAF53F076DL. Replaces our part number OMK243RNFD009

Brand: PROKUT™, GA Forestry Accessories™

Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket

nose guide bar,
