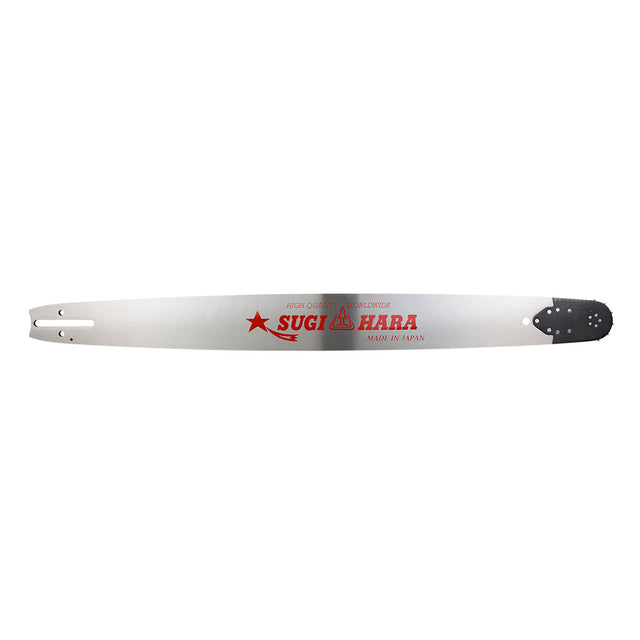

Description: PROKUT PLATINUM SUGIHARA 30" x 3/8" x .063" x *99 DL, CB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 303RNDD009
Sugihara - Diatop VT2T-3Q75-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 30"
Length: (cm): 75 cm
Pitch: 3/8"
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CB
Gauge: .063"
Drive Link Count: *99 (*please refer to notes after each fitment application).
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 3.5 cu. in (58 cc) and larger
Fits: Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,
371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,
390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,
570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,
2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 model chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: Jonsered 670, 670 WEST COAST and 2083II model chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
Fits: Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL model
chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
Fits: Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
Fits: Shindaiwa 680, 695, 757, 757C and 757W model chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
Product Line Notes: *Please note these models were fitted with 102 drive link chains from new. This
guide bar uses an 99 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Standard Pack Quantity: 1
Note: Replaces our part number OMK303RNDD009.
Please Note: For an .058" gauge standard PROKUT version of this guide bar (which uses a 102 DL
chain) use our part number GAFCB3048RS
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
