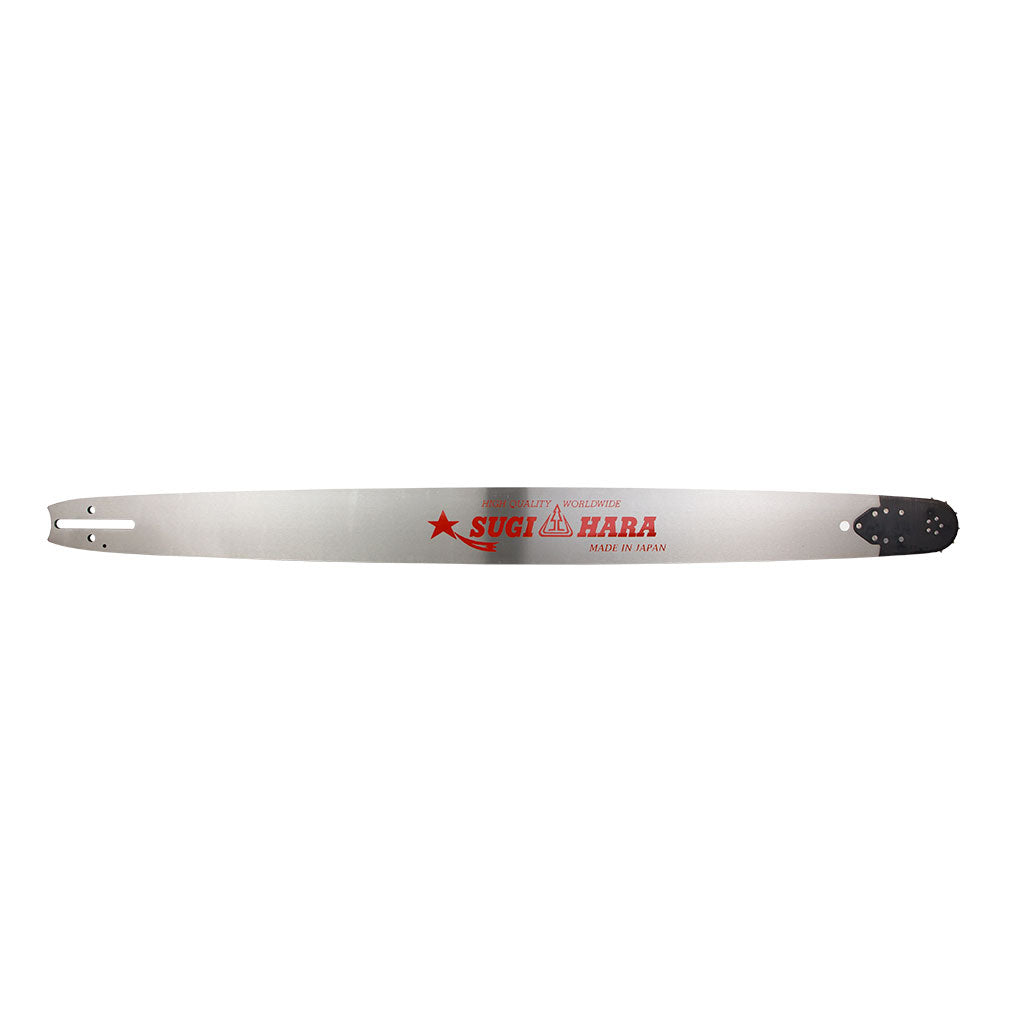

Description: PROKUT PLATINUM SUGIHARA 36" x 3/8" x .063" x *114 DL, CB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Editorial: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Replaces OEM: Oregon 363RNDD009
Sugihara - Diatop VT2T-3Q90-A
Length: (in): 36"
Length: (cm): 90 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CB
Gauge: .063"
Drive Link Count: *114 (*please refer to notes after each fitment application)
Teeth: 11 Tooth sprocket nose
Fits: *Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.
Product Line Notes: *Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,
371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,
390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG, 570, 575
XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101,
3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 model chainsaws.
Product Line Notes: *Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Jonsered 670 WEST COAST, 2083II model chainsaws.
Product Line Notes: Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404” pitch chain.
*Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL model
chainsaws.
Product Line Notes: Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
*Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws.
Product Line Notes: Note: Please check your saw carefully prior to ordering, some of these saw models
were also released fitted with a .404" pitch chain.
*Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Shindaiwa 680, 695, 757, 757C and 757W model chainsaws.
Product Line Notes: *Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Fits: *Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
Product Line Notes: *Please note these models were fitted with 115 drive link chains from new. This
guide bar uses an 114 drive link chain and so the existing chain will require
shortening to use this PROKUT Platinum Sugihara guide bar on these applications.
Standard Pack Quantity: 1
Note: Replaces our part number OMK363RNDD009
Please Note: Use with our semi-chisel chain loop part number GAF43S114DL or our full-chisel
chain loop part number GAF43F114DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCB3643RS (which
is 115 DL).
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
