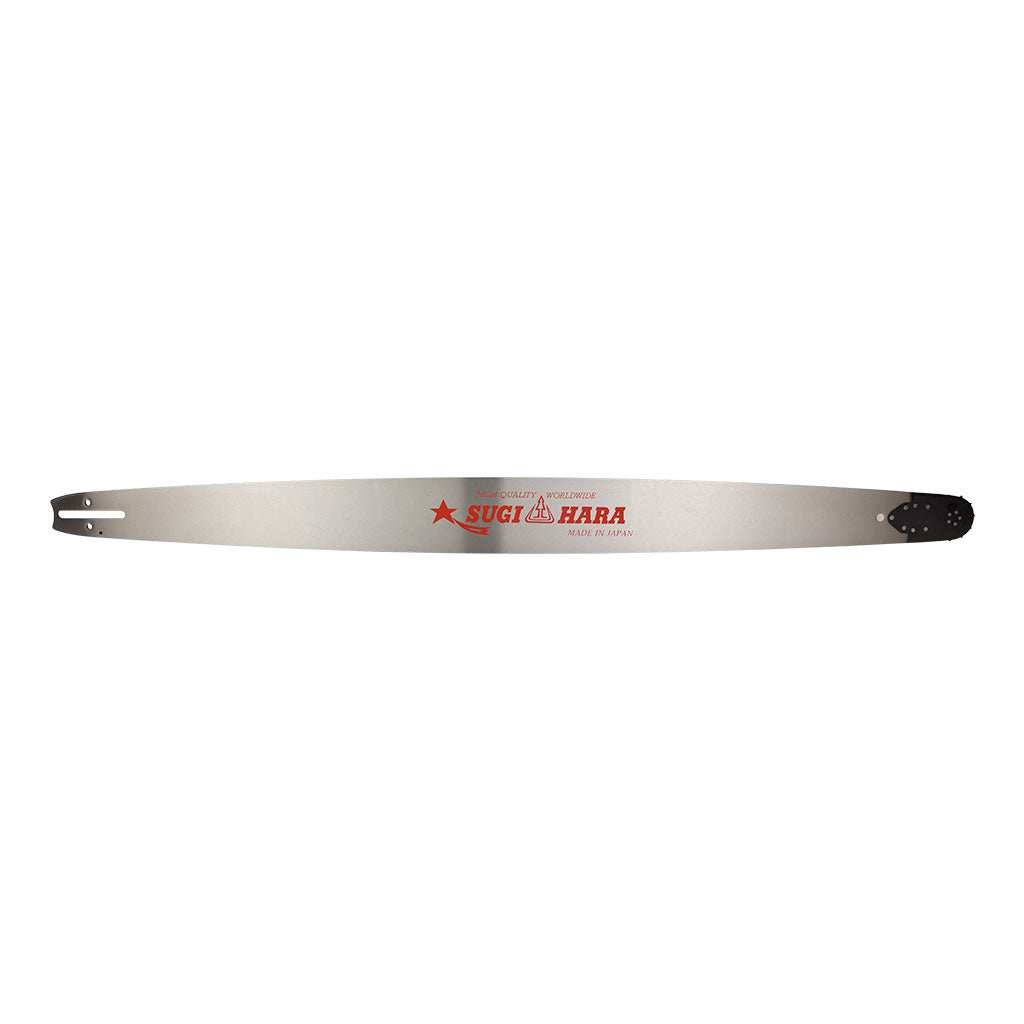

Description: PROKUT PLATINUM SUGIHARA 42" x 3/8" x .063" x *137 DL, CB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 423RNDD009
Sugihara - Diatop VT2T-3Q105-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 42"
Length: (cm): 107 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CB
Gauge: .063"
Drive Link Count: *137 (*please refer to notes after each fitment application)
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits: *Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,
371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,
390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,
570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,
2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 model chainsaws.
Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
guide bar uses an 137 drive link chain and so the existing chain will require
lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
applications.
Fits: *Jonsered 670 WEST COAST, 2083II. model chainsaws.
Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
guide bar uses an 137 drive link chain and so the existing chain will require
lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
applications. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a .404" pitch chain.
Fits: *Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL model
chainsaws.
Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
guide bar uses an 137 drive link chain and so the existing chain will require
lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
applications. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a .404" pitch chain.
Fits: *Poulan / Poulan Pro 415, 425, 445, 475, 505 model chainsaws.
Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
guide bar uses an 137 drive link chain and so the existing chain will require
lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
applications. Note: Please check your saw carefully prior to ordering, some of
these saw models were also released fitted with a .404" pitch chain.
Fits: *Shindaiwa 680, 695, 757, 757C and 757W model chainsaws.
Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
guide bar uses an 137 drive link chain and so the existing chain will require
lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
applications.
Fits: *Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
guide bar uses an 137 drive link chain and so the existing chain will require
lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
applications.
Standard Pack Quantity: 1
Note: Replaces our part number OMK423RNDD009 (which was 135 DL)
Please Note: Use with our semi-chisel chain loop part number GAF43S137DL or our full-chisel
chain loop part number GAF43F137DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option which uses a 135 drive link chain use
our part number GAFCB4243RS.
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
