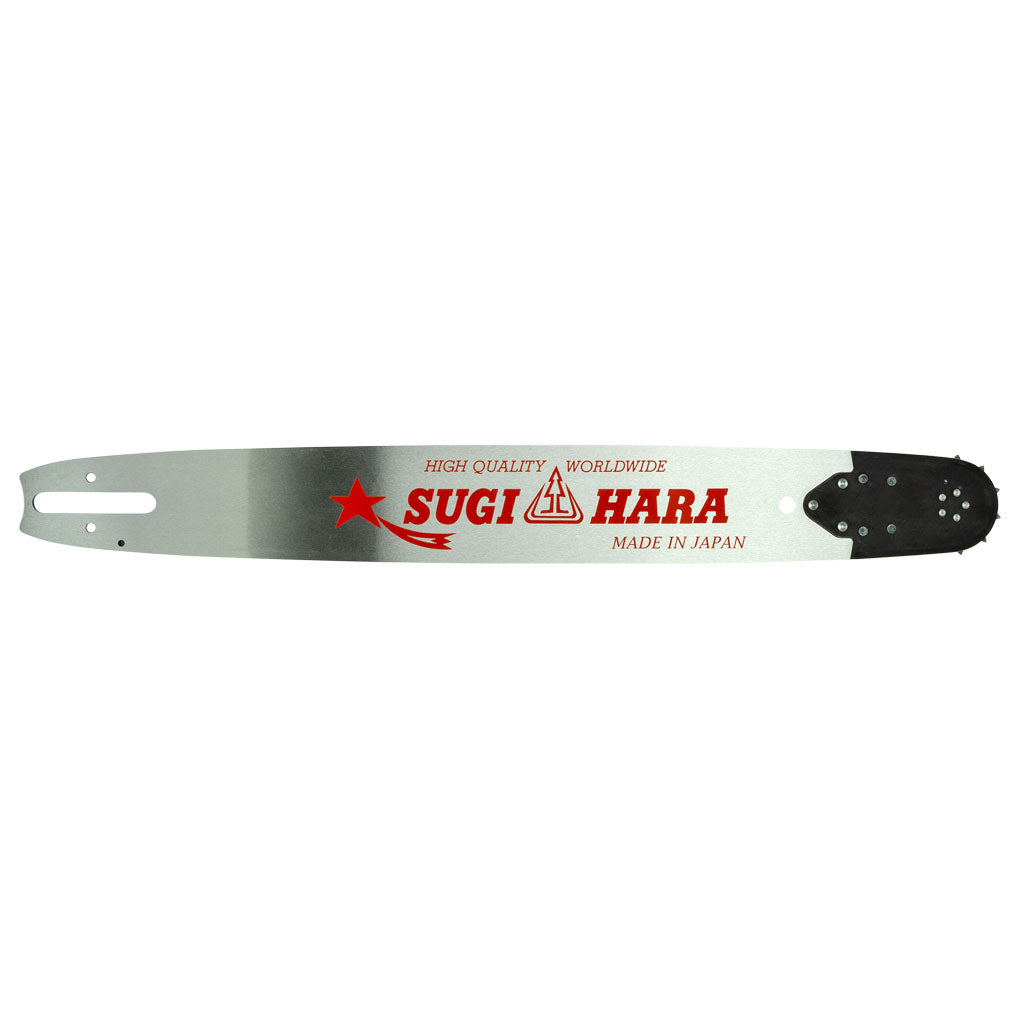

Description: PROKUT PLATINUM SUGIHARA 16" x .325" x .063" x 67 DL, CD Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 163RNBD025
Sugihara - Diatop ST2T-3J40-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Replaces OEM: Oregon 163RNBD025
Sugihara - Diatop ST2T-3J40-A
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 16"
Length: (in): 16"
Length: (cm): 40 cm
Pitch: .325"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 33S / Semi-Chisel or 33F / Full-Chisel
Bar Mount Type: CD
Gauge: .063"
Drive Link Count: 67
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
032, 034, 034 SUPER, 036, 036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260
PRO, MS 261, MS 261 C-Q, MS 270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280,
MS 280 C, MS 280 C-BQ, MS 280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C,
MS 360 PRO and MS 360 Q-S model chainsaws. Note: Please check your saw carefully
prior to ordering, some of the above saw models were also released fitted with a
3/8" pitch chain.
Fits: STIHL 024, 024 SUPER, 026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031,
032, 034, 034 SUPER, 036, 036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260
PRO, MS 261, MS 261 C-Q, MS 270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280,
MS 280 C, MS 280 C-BQ, MS 280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C,
MS 360 PRO and MS 360 Q-S model chainsaws. Note: Please check your saw carefully
prior to ordering, some of the above saw models were also released fitted with a
3/8" pitch chain.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF33S067DL or our full-chisel
chain loop part number GAF33F067DL.
For a semi-professional laminated multi-rivet sprocket nose guide bar option use
our part number GAFCD1633PL. For a bar and chain combo option that contains a
semi-professional laminated multi-rivet sprocket nose guide bar use our part number
GAF105705.
Replaces our part number OMK163RNBD025
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF33S067DL or our full-chisel
chain loop part number GAF33F067DL.
For a semi-professional laminated multi-rivet sprocket nose guide bar option use
our part number GAFCD1633PL. For a bar and chain combo option that contains a
semi-professional laminated multi-rivet sprocket nose guide bar use our part number
GAF105705.
Replaces our part number OMK163RNBD025
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
