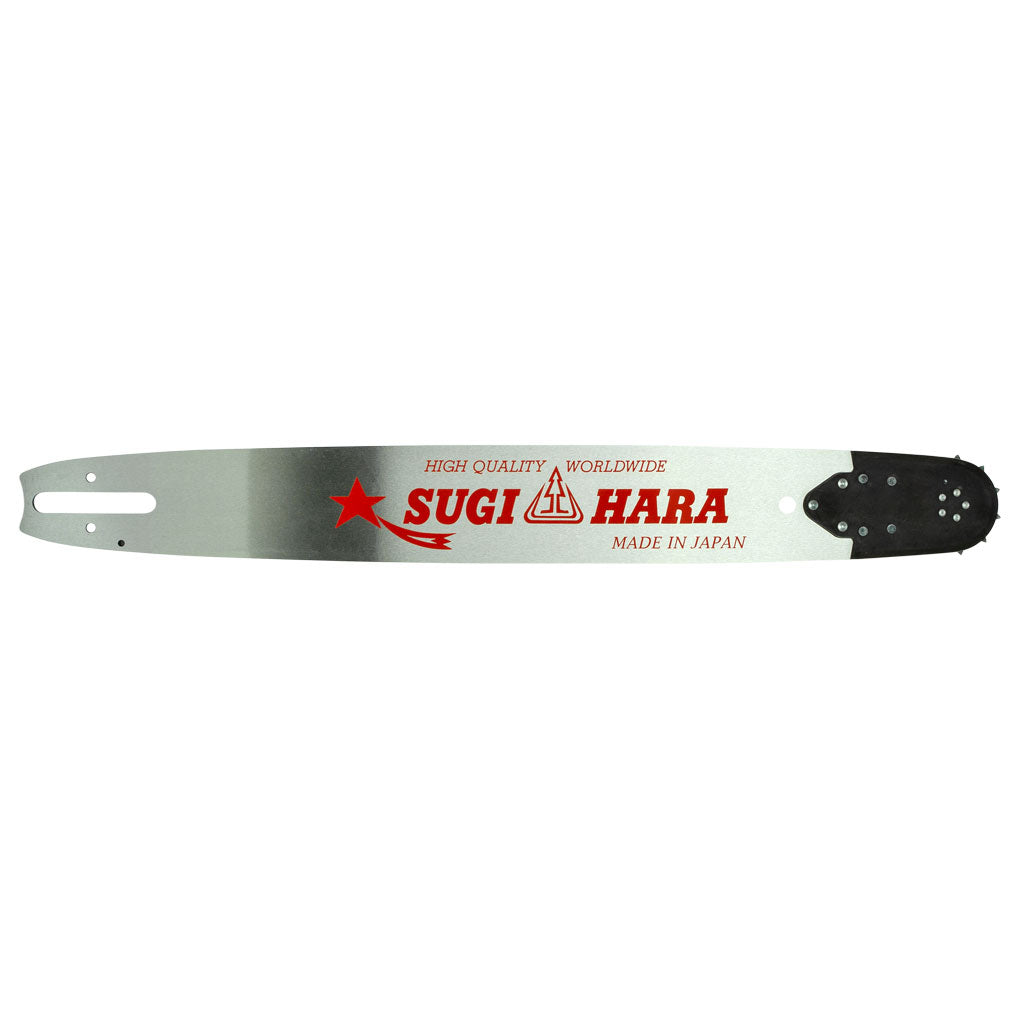

Description: PROKUT PLATINUM SUGIHARA 18" x 3/8" x .063" x 66 DL, CD Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 183RNDD025
Sugihara - Diatop ST2T-3Q45-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Replaces OEM: Oregon 183RNDD025
Sugihara - Diatop ST2T-3Q45-A
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 18"
Length: (in): 18"
Length: (cm): 45 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CD
Gauge: .063
Drive Link Count: 66
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C model
chainsaws. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a .404" pitch chain.
Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,
042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C model
chainsaws. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a .404" pitch chain.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF43S066DL or our full-chisel
chain loop part number GAF43F066DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCD1843RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFCD1843PL. For a bar and chain combo option containing a semi-professional
laminated multi-rivet sprocket nose guide bar use our part number GAF110783.
Replaces our part number OMK183RNDD025
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF43S066DL or our full-chisel
chain loop part number GAF43F066DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCD1843RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFCD1843PL. For a bar and chain combo option containing a semi-professional
laminated multi-rivet sprocket nose guide bar use our part number GAF110783.
Replaces our part number OMK183RNDD025
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
