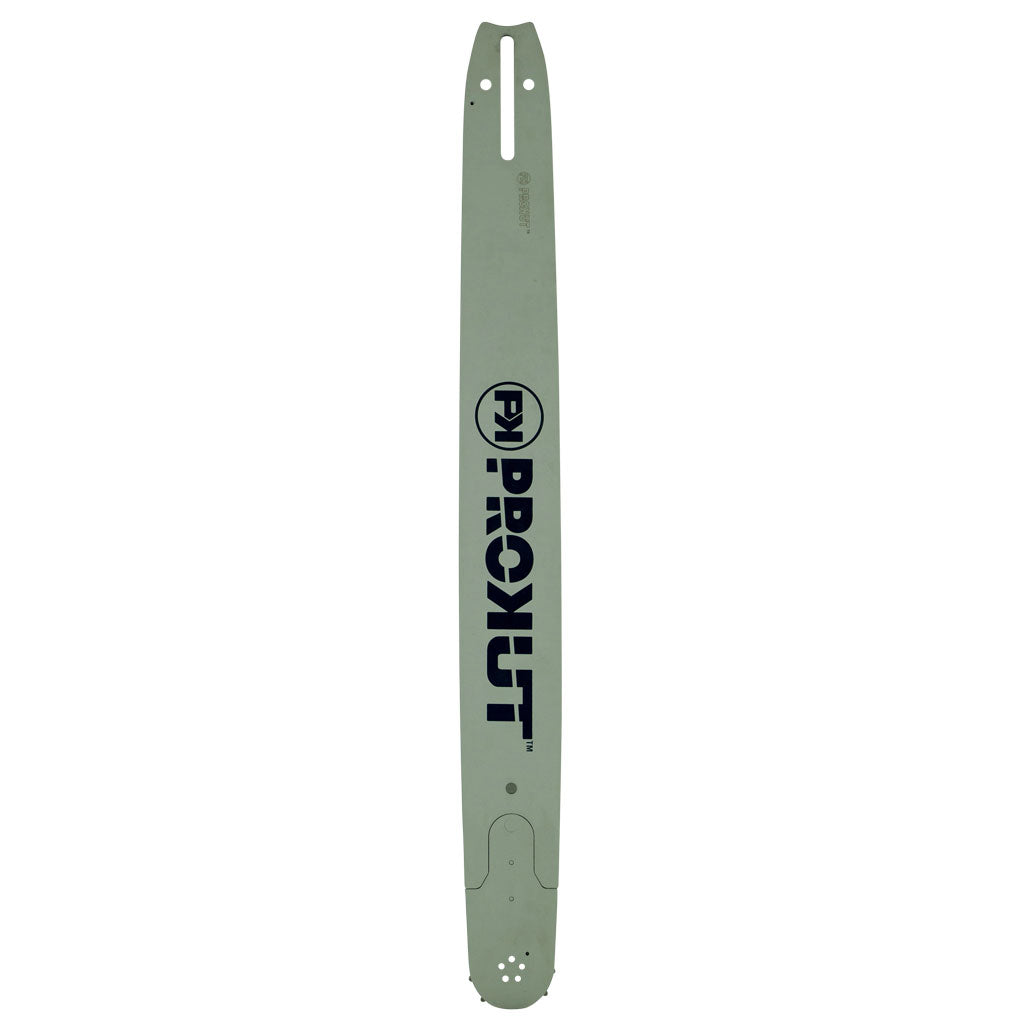

Description: PROKUT 22" x 3/8" x .063" x 77 DL, CD Mount, Solid Professional Replaceable
Sprocket Nose Guide Bar
Features: • Solid professional replaceable sprocket nose guide bar
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT guide bars are reversible for longer life
Features: • Solid professional replaceable sprocket nose guide bar
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT guide bars are reversible for longer life
Length: (in): 22"
Length: (in): 22"
Length: (cm): 55 cm
Pitch: 3/8"
Bar Type: Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CD
Gauge: .063"
Drive Link Count: 77
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.
Note: Please check your saw carefully prior to ordering, some of the above saw
models were also released fitted with a .404" pitch chain.
Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,
042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.
Note: Please check your saw carefully prior to ordering, some of the above saw
models were also released fitted with a .404" pitch chain.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF43S077DL or our full-chisel
chain loop part number GAF43F077DL. Replaces our part number OMK223RNDD025
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF43S077DL or our full-chisel
chain loop part number GAF43F077DL. Replaces our part number OMK223RNDD025
Brand: PROKUT, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
