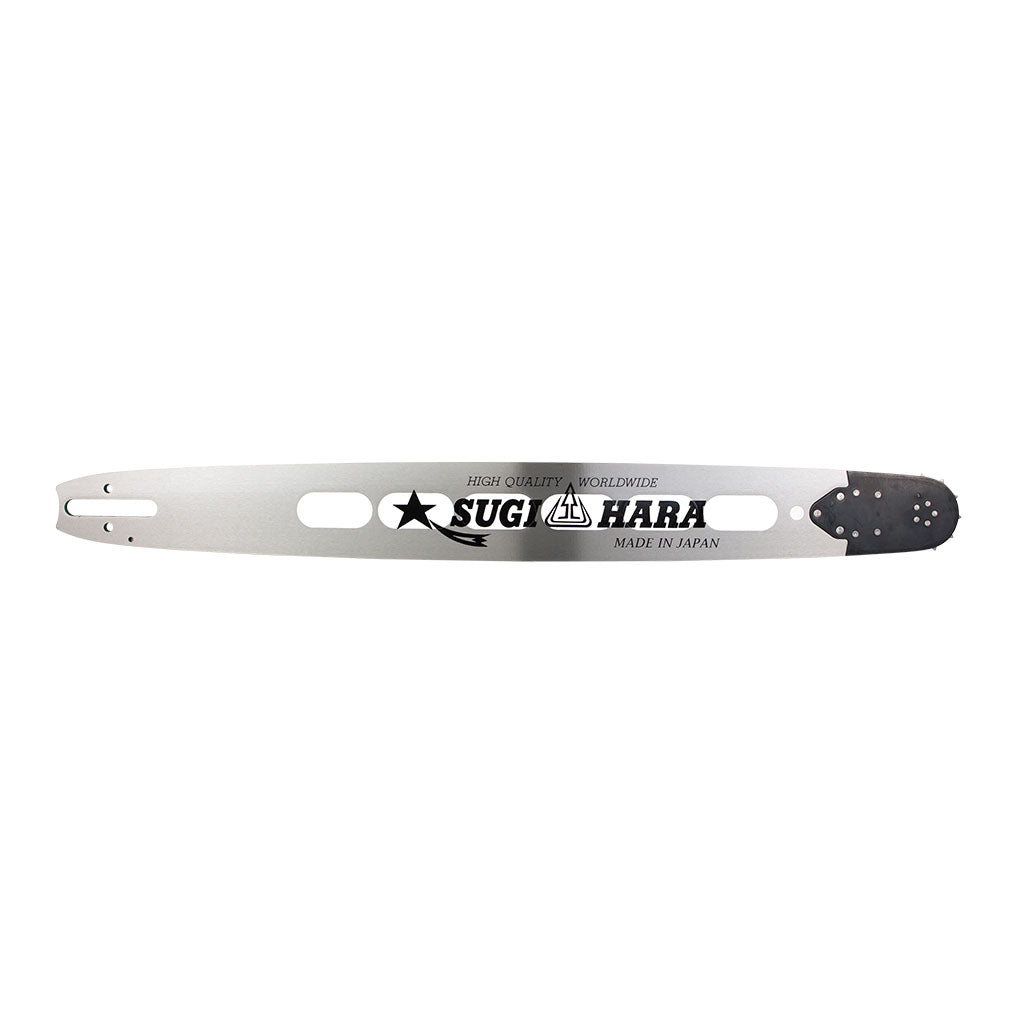

Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 25" x 3/8" x .063" x 84 DL or
*85DL, CD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are
manufactured In Japan from a single piece of steel. Manufactured the same way as
the Sugihara Red Label Pro Solid bars but with sections removed and filled with a
rigid, weight reducing resin. One of the best guide bars in the world today
Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular
version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars
are sought after for their high performance and light-weight. They are easily
recognised by the white resin sections and black label. The most striking looking
bar on the market.
Replaces OEM: Oregon 253RNDD025
Sugihara - Diatop ST2U-3Q63-A
Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily
recognised by the white resin sections and black label.
Manufactured the same way as the Sugihara Red Label Pro Solid bars but with
sections removed and filled with a rigid, weight reducing white resin.
This guide bar weighs just 1390g
Professional premium quality, reduced weight replaceable sprocket nose guide bar.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 25"
Length: (cm): 63 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CD
Gauge: .063"
Drive Link Count: 84 (some) or *85 (refer to notes below on Stihl).
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits: *Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum,
038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,
056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,
MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS
390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460
Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661
RC-M, MSE 220 C, MSE 250 C.
Product Line Notes: Please refer to the product notes below, please also check your saw carefully prior
to ordering, some of these saw models were also released fitted with a .404”
pitch chain.
Standard Pack Quantity: 1
Note: Replaces our part number OMK253RNDD025
Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
chain to be fitted for use with the standard 8-tooth rim sprocket (part number
GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
brands and models use with our semi-chisel chain loop part number GAF43S084DL or
our full-chisel chain loop part number GAF43F084DL. For a PROKUT PLATINUM SUGIHARA
solid professional replaceable sprocket nose guide bar option use our part number
GAFCD2543RSP. For a standard PROKUT solid professional replaceable sprocket nose
guide bar option (which uses 84 DL chain) use our part number GAFCD2443RS.
Brand: PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,
Product Line: Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,
sprocket nose guide bar,
