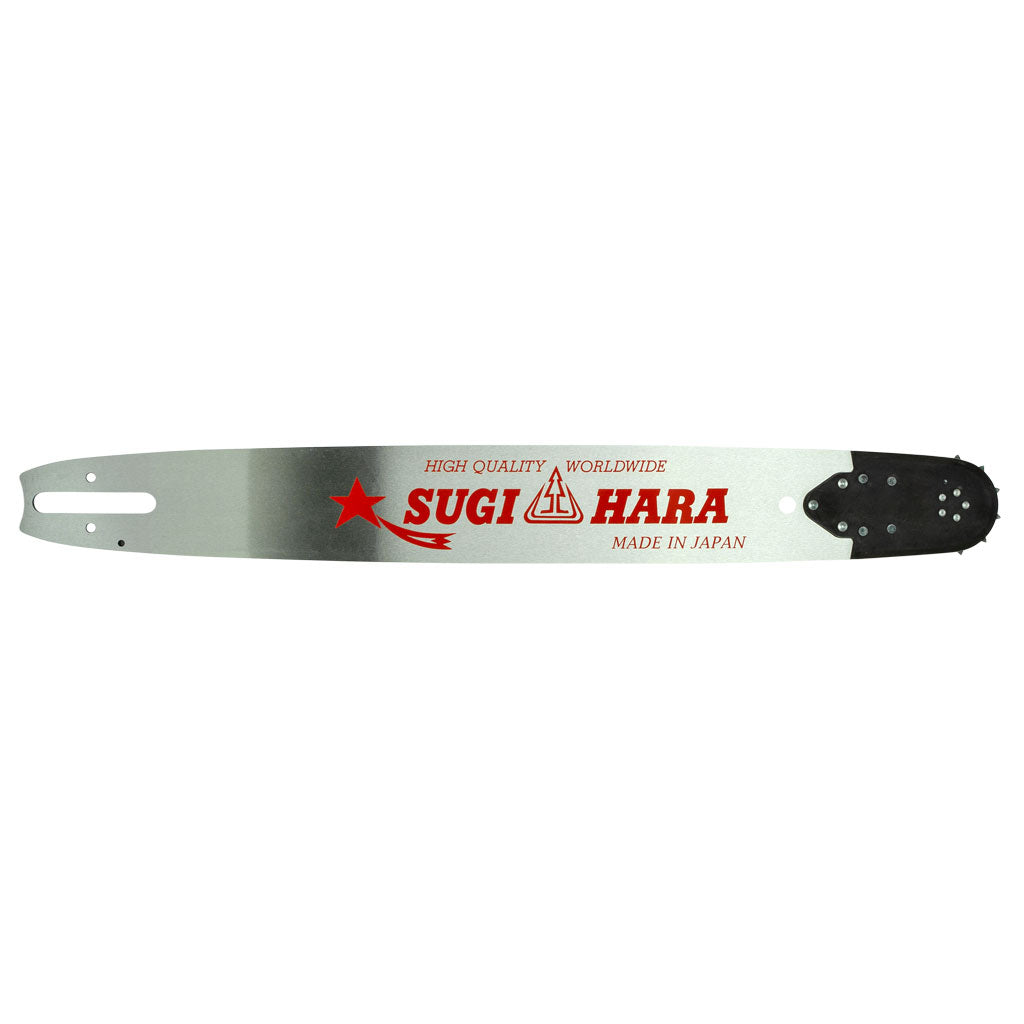

Description: PROKUT PLATINUM SUGIHARA 25" x 3/8" x .063 x 84 DL or *85DL, CD Mount, Solid
Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 243RNDD025
Sugihara - Diatop ST2T-3Q63-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Replaces OEM: Oregon 243RNDD025
Sugihara - Diatop ST2T-3Q63-A
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 25"
Length: (in): 25"
Length: (cm): 63 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel Or 43F / Full-Chisel
Bar Mount Type: CD
Gauge: .063"
Drive Link Count: 84 (some) or *85 (refer to notes below on Stihl).
Teeth: 11 Tooth Sprocket Nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,
056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,
MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS
390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460
Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661
RC-M, MSE 220 C, MSE 250 C. Note: Please check your saw carefully prior to
ordering, some of these saw models were also released fitted with a .404” pitch
chain.
Fits: *Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum,
038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,
056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,
MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS
390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460
Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661
RC-M, MSE 220 C, MSE 250 C. Note: Please check your saw carefully prior to
ordering, some of these saw models were also released fitted with a .404” pitch
chain.
Standard Pack Quantity: 1
Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
chain to be fitted for use with the standard 8-tooth rim sprocket (part number
GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
brands and models use with our semi-chisel chain loop part number GAF43S084DL or
our full-chisel chain loop part number GAF43F084DL. For a standard PROKUT solid
professional replaceable sprocket nose guide bar option use our part number
GAFCD2443RS.
nose guide bar,
Standard Pack Quantity: 1
Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
chain to be fitted for use with the standard 8-tooth rim sprocket (part number
GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
brands and models use with our semi-chisel chain loop part number GAF43S084DL or
our full-chisel chain loop part number GAF43F084DL. For a standard PROKUT solid
professional replaceable sprocket nose guide bar option use our part number
GAFCD2443RS.
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
