PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 30 #43 CD

FORESTRY-G  |  SKU: GAFCD3043RSP

$242.32
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

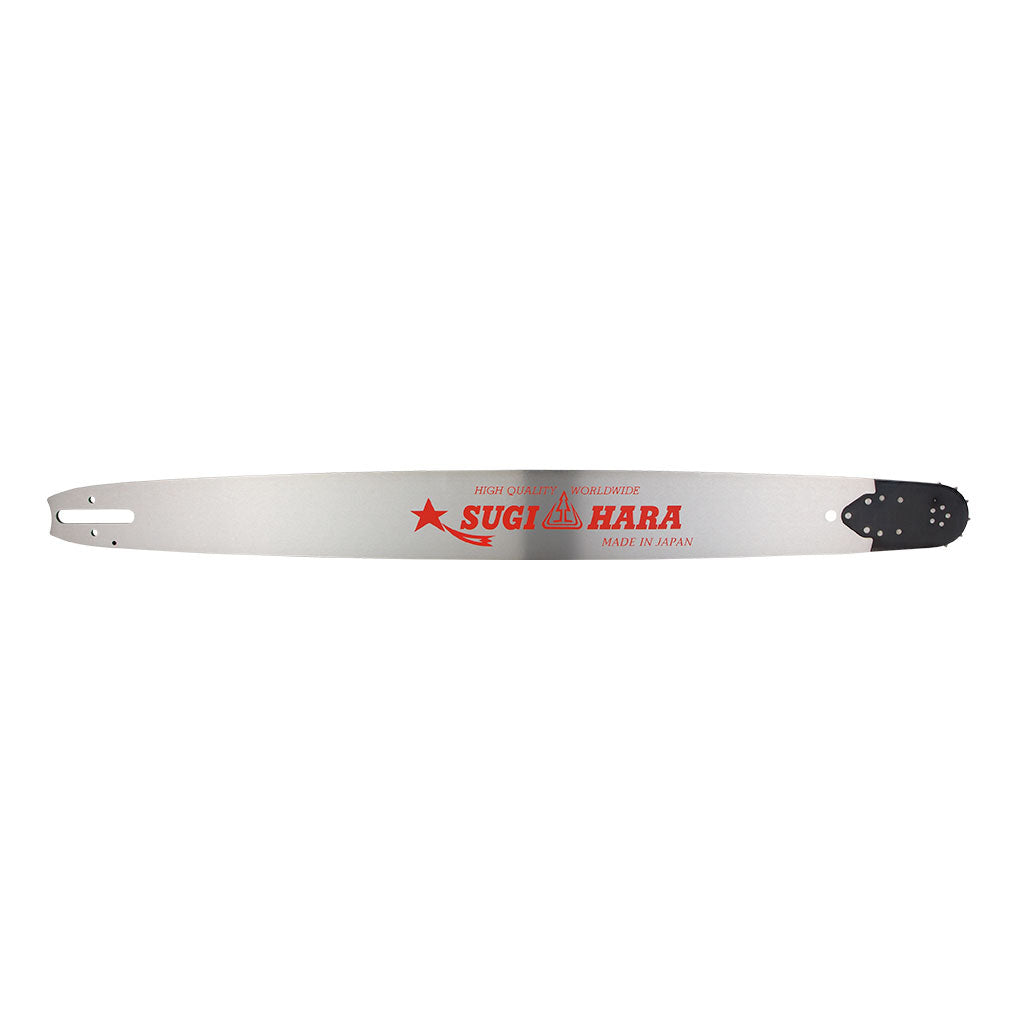

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 30 #43 CD

Specifications

Description: PROKUT PLATINUM SUGIHARA 30" x 3/8" x .063 x 98 DL, CD Mount, Solid Professional

Replaceable Sprocket Nose Guide Bar - Made In Japan

Editorial: Professional premium quality, solid, replaceable sprocket nose guide bar.

Manufactured from a single piece of steel, featuring superior durability and

stiffness characteristics.

High durability sprocket nose.

Polished lacquered finish.

Nose fastens with three rivets, and is securely held by wide and strong overlapping

ears.

The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body.

Super tough steel, heat treated up to 4 times on different parts of the guide bar,

provides superior bar-body strength and tough rails with excellent resistance to

wear and chipping.

PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.

Made in Japan.

All PROKUT guide bars are reversible for longer life.

Replaces OEM: Oregon 303RNDD025

Sugihara - Diatop ST2T-3Q76-A

Length: (in): 30"

Length: (cm): 75 cm

Pitch: 3/8"

Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 43S / Semi-Chisel Or 43F / Full-Chisel

Bar Mount Type: CD

Gauge: .063"

Drive Link Count: 98

Teeth: 11 Tooth Sprocket Nose

Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,

042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,

E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS

362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,

MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,

MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.

Note: Please check your saw carefully prior to ordering, some of the above saw

models were also released fitted with a .404" pitch chain.

Standard Pack Quantity: 1

Note: Replaces our part number OMK303RNDD025.

Please Note: Use with our semi-chisel chain loop part number GAF43S098DL or our full-chisel

chain loop part number GAF43F098DL.

For a standard PROKUT solid professional replaceable sprocket nose guide bar option

use our part number GAFCD3043RS.

Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories

Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket

nose guide bar,

Installation

We are currently updating all installation instructions so please contact us if you need installation assistance whilst we collate additional information.
