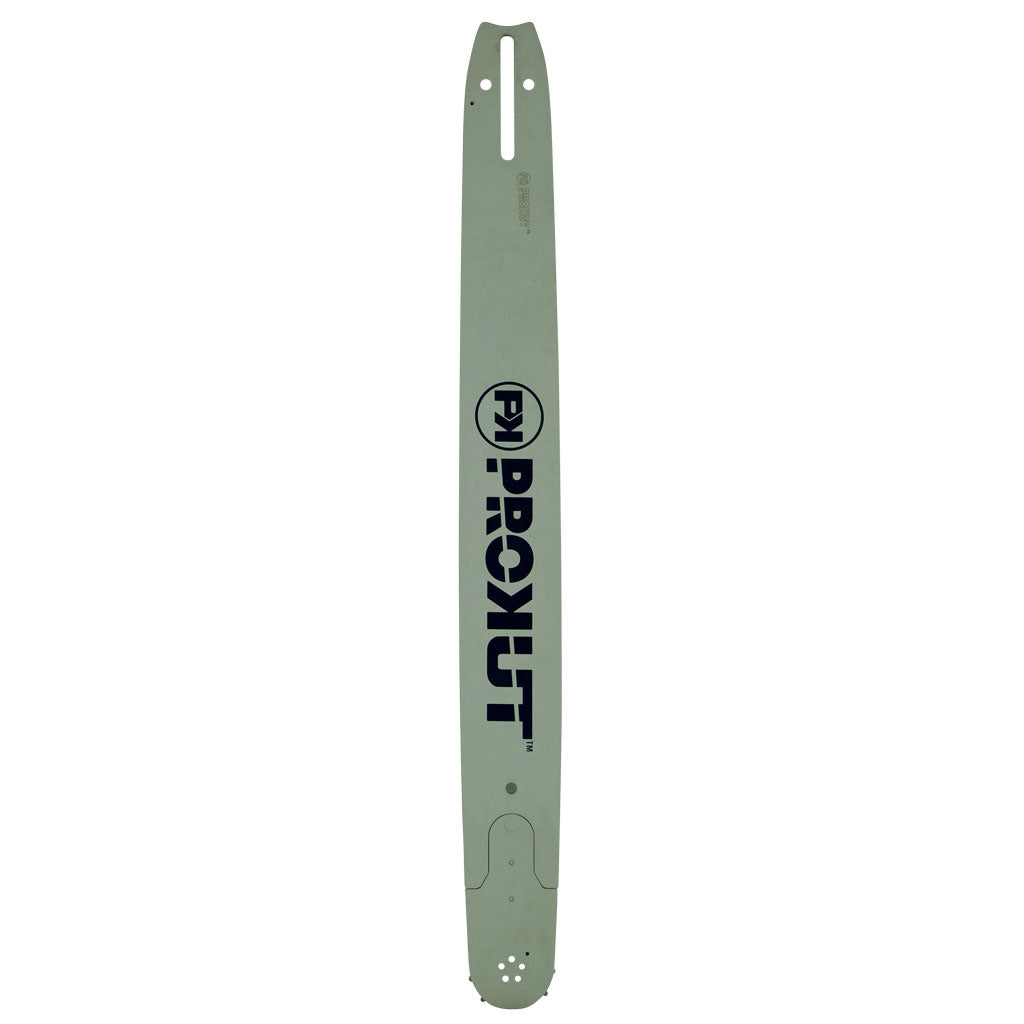

PROKUT SPROCKET NOSE GUIDE BAR 20 #40 CG

FORESTRY-G  |  SKU: GAFCG2040RS

$106.85
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

PROKUT SPROCKET NOSE GUIDE BAR 20 #40 CG

Specifications

Description: PROKUT 20" x 3/8" x .050" x 70 DL, CG Mount, Solid Professional Replaceable

Sprocket Nose Guide Bar

Replaces OEM: OREGON 200RNDD176

Replaces OEM: OREGON 200RNDD176

Features: • Solid professional replaceable sprocket nose guide bar

• Nose fastens with a single rivet, and is securely held by wide and strong

overlapping ears

• The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body

• Super tough chrome-moly steel provides superior bar-body strength and tough

rails with excellent resistance to wear and chipping

• All PROKUT guide bars are reversible for longer life

Features: • Solid professional replaceable sprocket nose guide bar

• Nose fastens with a single rivet, and is securely held by wide and strong

overlapping ears

• The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body

• Super tough chrome-moly steel provides superior bar-body strength and tough

rails with excellent resistance to wear and chipping

• All PROKUT guide bars are reversible for longer life

Length: (in): 20"

Length: (in): 20"

Length: (cm): 50 cm

Pitch: 3/8"

Bar Type: Solid Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 40S / Semi-Chisel or 40F / Full-Chisel

Bar Mount Type: CG

Gauge: .050"

Drive Link Count: 70

Teeth: 11 Tooth sprocket nose

Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

Fits: Echo CS-60, CS-60S, CS-451, CS-452, CS-500, CS-501EVL, CS-510EVL, CS-550, CS-590,

CS-600P, CS-601, CS-602, CST-610, CS-610T, CS-650, CS-660, CS-670, CS-680, CS-701,

CS-702, CS-706, CS-750, CS-6700, CS-6702, CS-8000 and CS-8001 models.

Fits: John Deere 50AV, 50V, 51SV, 55EV, 55V, 55SV, 60V, 65, 65EV, 65SV, 66SV, 70V, 80EV

and 800V models.

Fits: Echo CS-60, CS-60S, CS-451, CS-452, CS-500, CS-501EVL, CS-510EVL, CS-550, CS-590,

CS-600P, CS-601, CS-602, CST-610, CS-610T, CS-650, CS-660, CS-670, CS-680, CS-701,

CS-702, CS-706, CS-750, CS-6700, CS-6702, CS-8000 and CS-8001 models.

Fits: McCulloch 70, 80, 81, 560, 620, CP 55, CP70, CP70L. Eager Beaver 3.7. Double Eagle

50, 80. Mac 10 Series: 1-10, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 10-10, 10-10A.

MacCat Super 18AV. ProMac Series: ProMac 55, ProMac 60, ProMac 555, ProMac 570,

ProMac 605 (PM605), ProMac 610, ProMac 650, ProMac 655, ProMac 700 (PM700), ProMac

800, ProMac 805, ProMac 850, ProMac 1000, ProMac 5700, ProMac 8200. Silver Eagle

3420, Silver Eagle 3720. Super Pro Series: Super Pro 60 (SP60), Super Pro 70

(SP70), Super Pro 80 (SP80), Super Pro 81 (SP81). Timber Bear (earlier models).

Titan 50, Titan 57 and Titan 70 models.

Fits: John Deere 50AV, 50V, 51SV, 55EV, 55V, 55SV, 60V, 65, 65EV, 65SV, 66SV, 70V, 80EV

and 800V models.

Fits: McCulloch 70, 80, 81, 560, 620, CP 55, CP70, CP70L. Eager Beaver 3.7. Double Eagle

50, 80. Mac 10 Series: 1-10, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 10-10, 10-10A.

MacCat Super 18AV. ProMac Series: ProMac 55, ProMac 60, ProMac 555, ProMac 570,

ProMac 605 (PM605), ProMac 610, ProMac 650, ProMac 655, ProMac 700 (PM700), ProMac

800, ProMac 805, ProMac 850, ProMac 1000, ProMac 5700, ProMac 8200. Silver Eagle

3420, Silver Eagle 3720. Super Pro Series: Super Pro 60 (SP60), Super Pro 70

(SP70), Super Pro 80 (SP80), Super Pro 81 (SP81). Timber Bear (earlier models).

Titan 50, Titan 57 and Titan 70 models.

Fits: Poulan / Poulan Pro 203, 245, 306, 306A, 360, 361, 375, 385, 395, 400, 446, 450,

3400, 3700, 3800, 3900, 4000, 4200, 4400, 4900, 5000, 5200, 5400, 5500, 6000 and

6700 models.

Fits: Redmax G621AVS models.

Fits: Skil 1641 models.

Fits: Tanaka ECS-505, ECS-506, ECS-650 and ECS-655 models.

Fits: Zenoah G621 and G621AVS models.

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel

chain loop part number GAF40F070DL. For a semi-professional laminated multi-rivet

sprocket nose guide bar option use our part number GAFCG2040PL. Replaces our part

number OMK200RNDD176

nose guide bar,

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel

chain loop part number GAF40F070DL. For a semi-professional laminated multi-rivet

sprocket nose guide bar option use our part number GAFCG2040PL. Replaces our part

number OMK200RNDD176

Brand: PROKUT, GA Forestry Accessories

Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket

nose guide bar,
