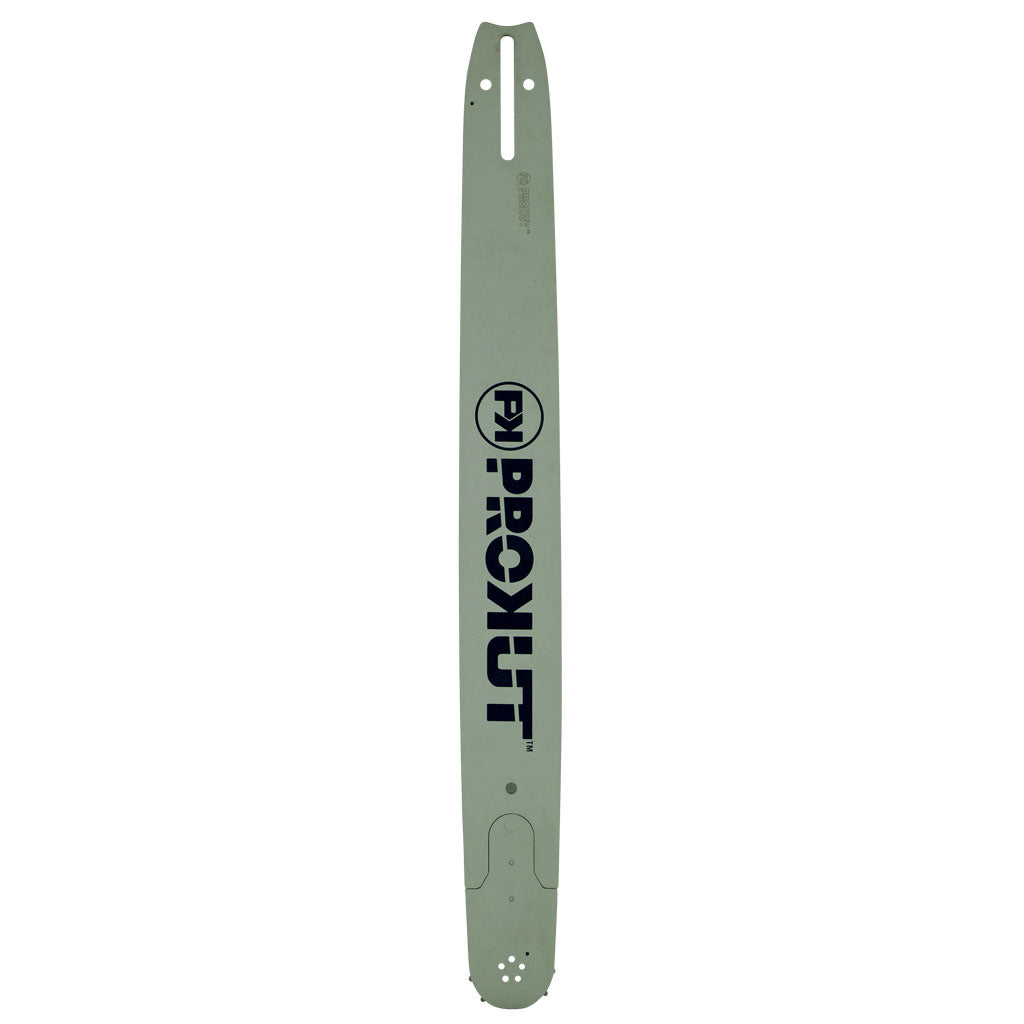

PROKUT SPROCKET NOSE GUIDE BAR 20 #40 CH

FORESTRY-G  |  SKU: GAFCH2040RS

$101.78
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

PROKUT SPROCKET NOSE GUIDE BAR 20 #40 CH

Specifications

Description: PROKUT™ 20" x 3/8" x .050" x 70 DL, CH Mount, Solid Professional Replaceable

Sprocket Nose Guide Bar

Replaces OEM: OREGON® 200RNDD196

Replaces OEM: OREGON® 200RNDD196

• Nose fastens with a single rivet, and is securely held by wide and strong

overlapping ears

• The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body

• Super tough chrome-moly steel provides superior bar-body strength and tough

rails with excellent resistance to wear and chipping

• All PROKUT™ guide bars are reversible for longer life

Features: • Solid professional replaceable sprocket nose guide bar

• Nose fastens with a single rivet, and is securely held by wide and strong

overlapping ears

• The long sprocket nose takes most of the abuse, and minimizes wear to the bars

body

• Super tough chrome-moly steel provides superior bar-body strength and tough

rails with excellent resistance to wear and chipping

• All PROKUT™ guide bars are reversible for longer life

Length: (in): 20"

Length: (in): 20"

Length: (cm): 50 cm

Pitch: 3/8"

Bar Type: Solid Professional Replaceable Sprocket Nose Guide Bar

Chain / Cutter Type: 40S / Semi-Chisel or 40F / Full-Chisel

Bar Mount Type: CH

Gauge: .050"

Drive Link Count: 70

Teeth: 11 Tooth sprocket nose

Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

Fits: Echo CS-900, CS-900EVL and CS-1001 models.

750, 800, 825, 850, 900, 922, 923, 8800, SUPER XL, SUPER XL-925, SUPER XL-AO,

V-955, XL-12, XL-15, XL-400, XL-700 SERIES, XL-800 SERIES, XL-900 SERIES models.

Fits: Homelite 35SL, 330, 350, 350HG, 350SL, 360, 400, 410, 450, 460, 540, 550, 650, 700,

750, 800, 825, 850, 900, 922, 923, 8800, SUPER XL, SUPER XL-925, SUPER XL-AO,

V-955, XL-12, XL-15, XL-400, XL-700 SERIES, XL-800 SERIES, XL-900 SERIES models.

with a .404" pitch chain.

Fits: John Deere CS71 and CS81. Note: The "CH" bar tail slot (motor mount slot) must be

filed .020" (.00508 mm) for correct fitment.

.020" (.00508 mm) for correct fitment.

Fits: Jonsered 60, 61, 62, 66, 70, 75, 77, 80, 81, 90, 110, 111, 601, 621, 751, 801, 820,

830, 910, 920, 930, 939, 941, 1020 and 2350 models. Note: Please check your saw

carefully prior to ordering, some of the above saw models were also released fitted

with a .404" pitch chain.

Fits: Oleo-Mac 250, 250A, 251, 252, 254, 260, 261, 264, 355 and 460A SUPER models.

Fits: Oleo-Mac 48, 70, 264F, 272, 280, 284, 350, 355, 461, 480A SUPER, 970F, 980, 980F,

AGRISTAR, SUPER 482 NOTE: The "CH" bar tail slot (motor mount slot) must be filed

.020" (.00508 mm) for correct fitment.

Fits: Poulan / Poulan Pro 6900, 7700 and 8500 models. Note: Please check your saw

carefully prior to ordering, some of these saw models were also released fitted

with a .404" pitch chain.

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel

chain loop part number GAF40F070DL. Replaces our part number OMK200RNDD196

nose guide bar,

Standard Pack Quantity: 1

Please Note: Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel

chain loop part number GAF40F070DL. Replaces our part number OMK200RNDD196

Brand: PROKUT™, GA Forestry Accessories™

Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket

nose guide bar,
