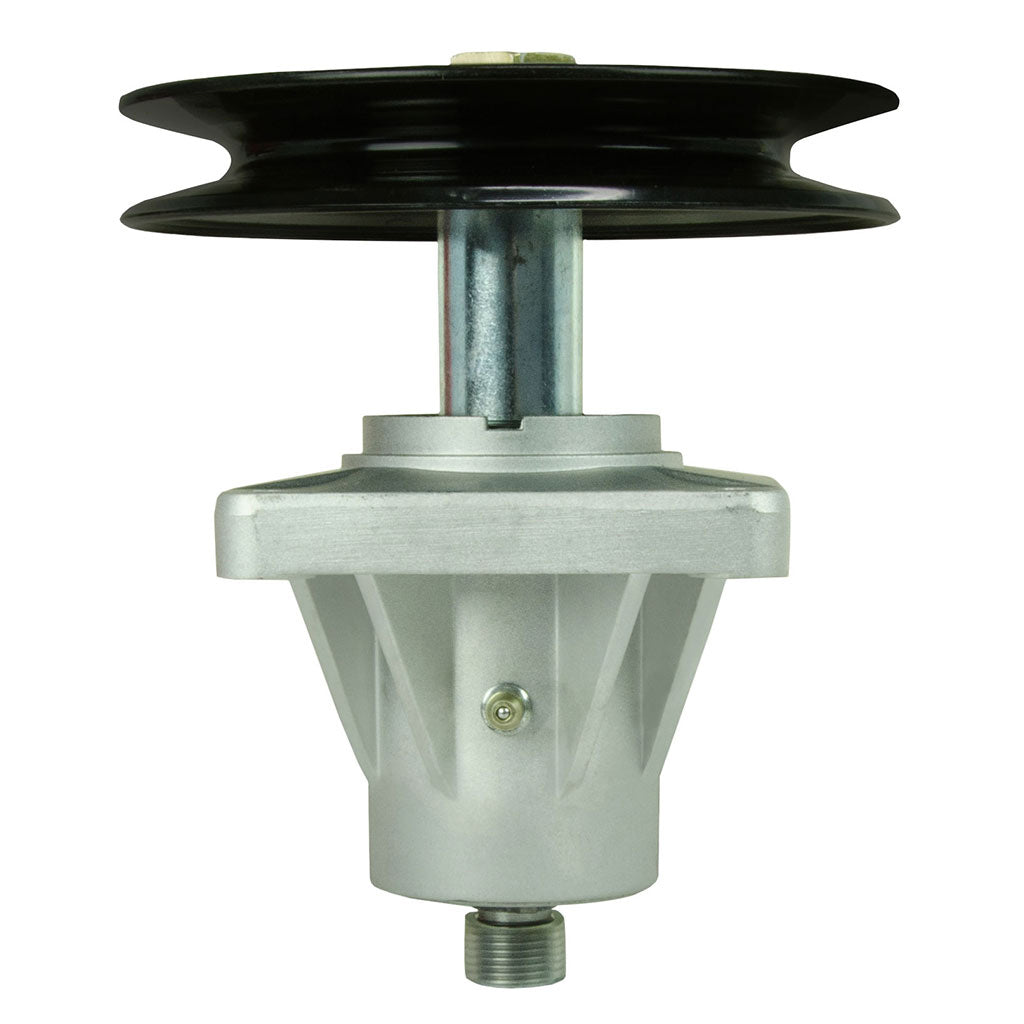

CUB CADET / MTD / YARDMAN SPINDLE ASSEMBLY SUITS 46"

Description: Non-Genuine Cub Cadet, MTD Yard-Man 46" Cut Spindle Assembly

Replaces OEM: Cub Cadet 618-0625, 618-04137, 618-04137A, 618-0660, 618-0660A, 618-0660B,

618-0625, 618-0625A, 618-0625B, 918-04137, 918-04137A, 918-0625B,

918-0660, 918-0660A, 918-0660B

MTD 618-0625, 618-04137, 618-04137A, 618-0660, 618-0660A, 618-0660B, 618-0625,

618-0625A, 618-0625B, 918-04137, 918-04137A, 918-0625B, 918-0660,

918-0660A, 918-0660B

Centre Hole Type: 6-Point Star

Deck (cm) 116 cm

Deck (inches) 46"

Deck (mm) 1168 mm

Height: (inches) 6.375" (From top of pulley to bottom of shaft), 3.125" (From bottom of mounting holes to bottom of shaft)

Height: (mm) 161.93 mm (From top of pulley to bottom of shaft), 79.37 mm (From bottom of mounting holes to bottom of shaft)

Pulley Diameter: (inches) 5.500"

Pulley Diameter: (mm) 139.70 mm

Pulley Height : (inches) .938"

Pulley Height : (mm) 23.81 mm

Thread Size: 5/8"-18 UNF (Both top and bottom of shaft)

Fits: Cub Cadet and MTD Yard-Man selected 46" (1168 mm) cut decks using star centre hole

blades including but not limited to –

Fits: 46" (1168 mm) cut Cub Cadet i1046 (model 17AE9BKH010 year 2008 onwards, model

17AF9BKH010 year 2008 onwards, model 17AF9BKKH630 year 2007, model 17RF9BKH756 year

2007 and prior, model 17AF9BKH710 year 2007 and prior) and LT1046 (model

13AP11CH630* year 2006 onwards, model 13AP11CH010 year 2008 onwards) ride-on lawn

mower models.

Fits: 46" (1168 mm) cut MTD Yard-Man (model 13AP605H755 year 2006, model 13AP604H671 year

2007 and model 13AR604H671* year 2006 onwards) ride-on lawn mower models.

Features: For selected 46" cut decks fitted with 6-point star centre hole blades.

Standard Pack Quantity: 1

Please Note: * Both Cub Cadet LT1046 (model 13AP11CH630*) and MTD Yard-Man (model 13AR604H671*)

year 2005 and earlier models used a different spindle assembly.

****All pulley nuts must be tightened when installing new spindle assemblies****

Brand: Cub Cadet Non-Genuine, MTD Non-Genuine,

Product Line: Jackshaft assembly, Quill assembly, pulley and spindle assembly, spindle assembly

with pulley,
