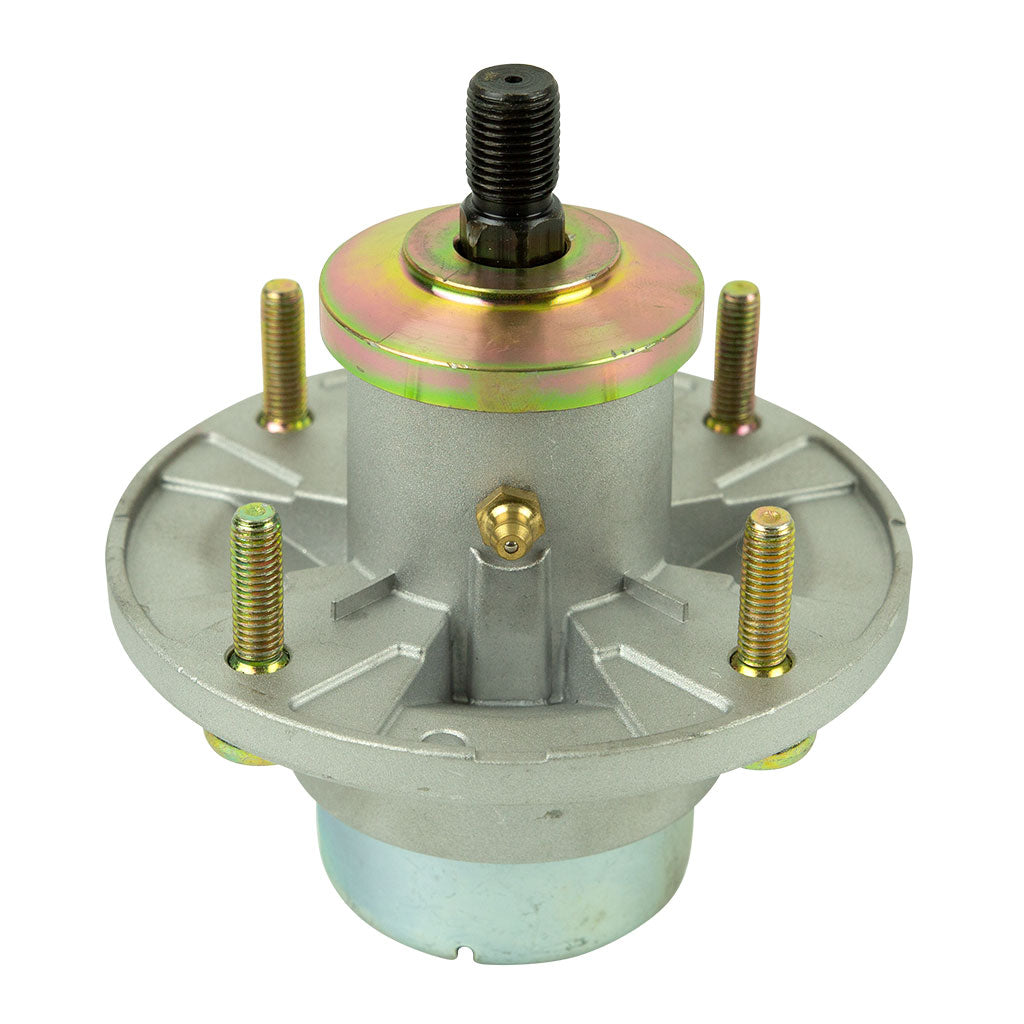

Description: Non-Genuine John Deere 42", 48", 54" Cut Spindle Assembly To Suit 42A, 48A, 54A
Accel Deep Decks.
Replaces OEM: John Deere AM144608
Deck (cm) 106.7 cm, 122 cm, 137.2 cm Cut
Deck (inches) 42", 48", 54" Cut
Deck (mm) 1067 mm, 1220 mm, 1372 mm Cut
Length: (in): 5 3/4"
Length: (mm): 146.05 mm
Thread Size: Blade Mounting Bolt Thread Size: 12mm x 1.75mm.
Pulley Nut Thread Size: 9/16".
Fits: 42" (1067 mm) cut John Deere selected models fitted with Accel (42A) deep decks
including but not limited to Select Series X350, X354 (4WS), X370 ride-on lawn
mower models and Residential ZTrak series Z335E, Z335M, Z345M (models with serial
numbers 080001 onwards) and Z345R (models with serial numbers 080001 onwards) zero
turn radius (ZTR) ride-on models.
Product Line Notes: 2 spindle assemblies required for 42" cut (42A) Accel deep decks.
Fits: 48" (1220 mm) cut John Deere selected models fitted with Accel (48A) deep decks
including but not limited to Select Series X350, X380, X384 (4WS), X390, X394,
X570, X584, X590, Signature Series X730 ride-on lawn mower models and Residential
ZTrak series Z355E (models with serial numbers 050001 onwards), Z355R, Z525E, Z535M
and Z540M zero turn radius (ZTR) ride-on models.
Product Line Notes: 3 spindle assemblies required for 48" cut (48A) Accel deep decks.
Fits: 54" (1372 mm) cut John Deere selected models fitted with Accel (54A) deep decks
including but not limited to Select Series X380, X384 (4WS), X390, X580, X584,
X570, X590 ride-on lawn mower models and Residential ZTrak series Z375R, Z525E,
Z535M and Z540M zero turn radius (ZTR) ride-on models.
Product Line Notes: 3 spindle assemblies required for 54" cut (54A) Accel deep decks.
Standard Pack Quantity: 1
Footnote: When installing new spindle assemblies, pulley nuts, (if already fitted) must be
checked and correctly tightened. All spindle assemblies are sold as singles, order
the quantity required to make up a set.
Brand: John Deere Non-Genuine,
Product Line: Assembly - Spindle, Jackshaft Assembly, Quill Assembly, Spindle Assembly,
