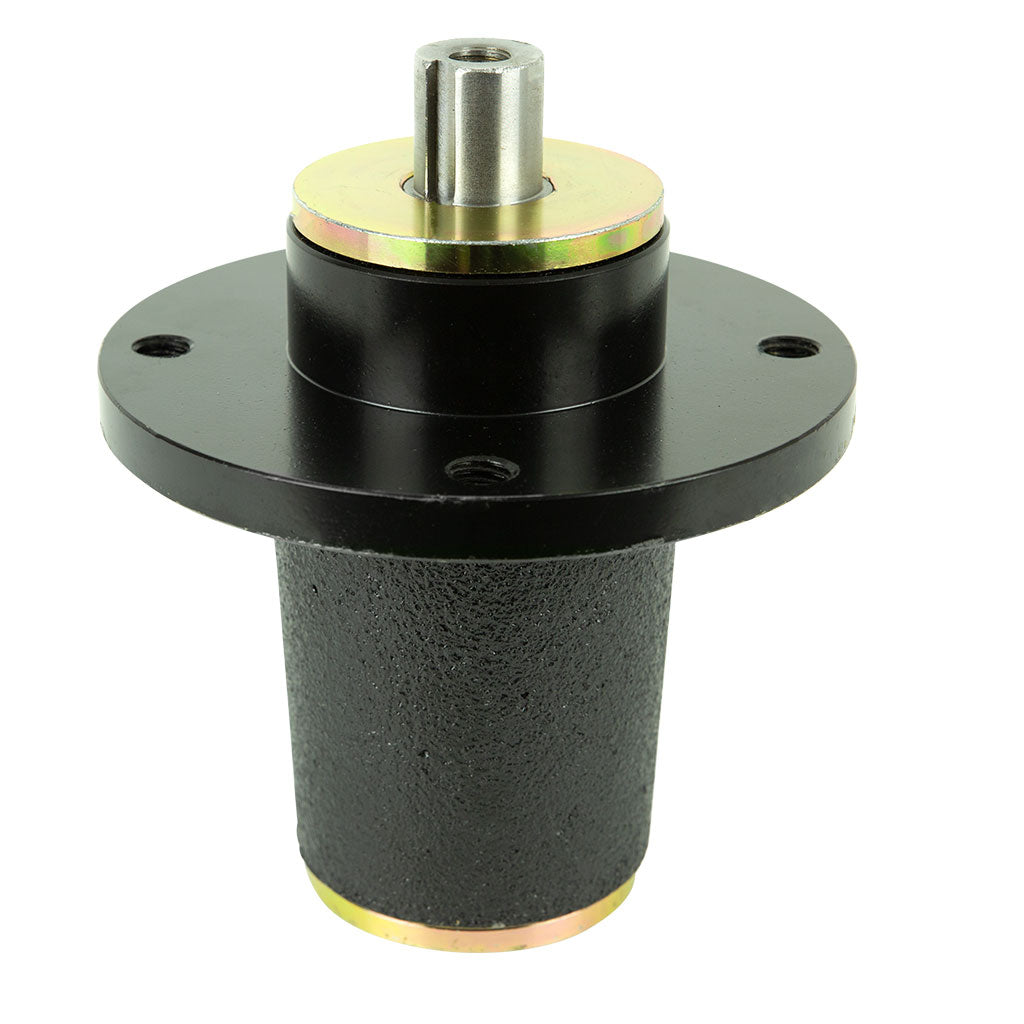

Description: Non-Genuine BigDog, HUSTLER 36", 48", 52", 54", 60", 66", 72" & 104" Cut Cast Iron
Spindle Assembly
Replaces OEM: BigDog 604255, 607407,
HUSTLER 604255, 607407,
Centre Hole Type: Round
Deck (cm) 91.5 cm, 122 cm, 132 cm, 137.2 cm, 152.4 cm, 167.6 cm, 182.8 cm & 264.2 cm Cut.
Deck (inches) 36", 48", 52", 54", 60", 66", 72" & 104" Cut.
Deck (mm) 915 mm, 1220 mm, 1320 mm, 1372 mm, 1524 mm, 1676 mm, 1828 mm & 2642 mm Cut.
Fits: 52" (1320 mm) cut BigDog Diablo (models 933366EX, 935551EX and 936344EX) zero turn
radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 52" cut.
Fits: 60" (1524 mm) cut BigDog Diablo (models 933242EX, 935569EX and 936351EX) and Diablo
MP (models 933291EX, 935122EX and 937292EX) zero turn radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 60" cut.
Fits: 72" (1828 mm) cut cut BigDog Diablo (models 933275EX and 936443EX) and Diablo MP
(model 935106EX) zero turn radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 72" cut.
Fits: 36" (915 mm) cut HUSTLER Super S Stander (model 940288EX) zero turn radius (ZTR)
ride-on models.
Qty required per unit: 2 spindles required for 36" cut.
Fits: 48" (1220 mm) cut HUSTLER X-One side discharge (models 933135EX, 934133EX and
934497EX) zero turn radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 48" cut.
Fits: 54" (1372 mm) cut HUSTLER Super Z and Super Z HD side discharge (models 938100EX
and 938878EX), X-One side discharge (models 932780EX, 934158EX, 934810EX, 936740EX
and 941112EX) and Z Diesel side discharge (model 931196EX) zero turn radius (ZTR)
ride-on models.odels.
Qty required per unit: 3 spindles required for 54" cut.
Fits: 60" (1524 mm) cut HUSTLER Super Z and Super Z HD rear discharge (models *932178EX,
*935320EX, *937078EX, *938126EX and *941195EX), Super Z and Super Z HD side
discharge (models 932160EX, 934927EX, 935254EX, 937003EX, 937060EX, 938118EX,
938886EX and 941146EX), Super Z Hyperdrive rear discharge (model *941336EX), Super
Z Hyperdrive side discharge (models 9413101EX and 940551EX), X-One side discharge
(models 932723EX, 934174EX, 934836EX, 936799EX and 941120EX), Z Diesel rear
discharge (models *931212EX, *932681EX and *938191EX), Z Diesel side discharge
(models 931204EX, 932673EX and 938183EX zero turn radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 60" cut (Please refer to product note).
Product Line Notes: Side discharge models use 3 x JAS8565. Rear discharge models use 2 x JAS8565 and 1
x OEM's: 604256 or 607408 (not currently stocked).
Fits: 66" (1676 mm) cut HUSTLER Super Z and Super Z HD side discharge (models 932657EX,
935494EX and 937102EX) zero turn radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 66" cut.
Fits: 72" (1828 mm) cut HUSTLER Super Z and Super Z HD side discharge (models 932152EX,
934950EX, 935338EX, 937037EX and 937086EX), Super Z Hyperdrive side discharge
(models 940577EX and 941344EX) and Z Diesel (models 931238EX, 932699EX and
938225EX) zero turn radius (ZTR) ride-on models.
Qty required per unit: 3 spindles required for 72" cut.
Fits: 104" (2642 mm) cut HUSTLER Super 104 (models *931733EX, *938910EX, *939603EX and
*940544EX) zero turn radius (ZTR) ride-on models.
Qty required per unit: 5 spindles required for 104" cut (Please refer to product note).
Product Line Notes: Centre deck uses 2 x JAS8565 and 1 x OEM's: 604256 or 607408 (not currently
stocked). Left side deck uses 1 x OEM's: 604256 or 607408 (not currently stocked).
Right side deck uses 1 x JAS8565.
Standard Pack Quantity: 1
Footnote: *Models with an asterisk use more than one type of spindle assembly to complete a
set, please check your machine carefully prior to ordering. All spindle assemblies
are sold as singles, order the quantity required to make up a set.
Brand: BigDog Non-Genuine, HUSTLER Non-Genuine,
Product Line: Assembly - Spindle, Quill Assembly, Spindle Assembly,
