WALBRO K1-WYTA SPIRAL DIAPHRAGM UPGRADE KIT

GASPARES  |  SKU: K1-WYTA

$93.85
Tax included Shipping calculated at checkout.

Experts in lawn care and landscaping

Tried and testing for Australian conditions

Description

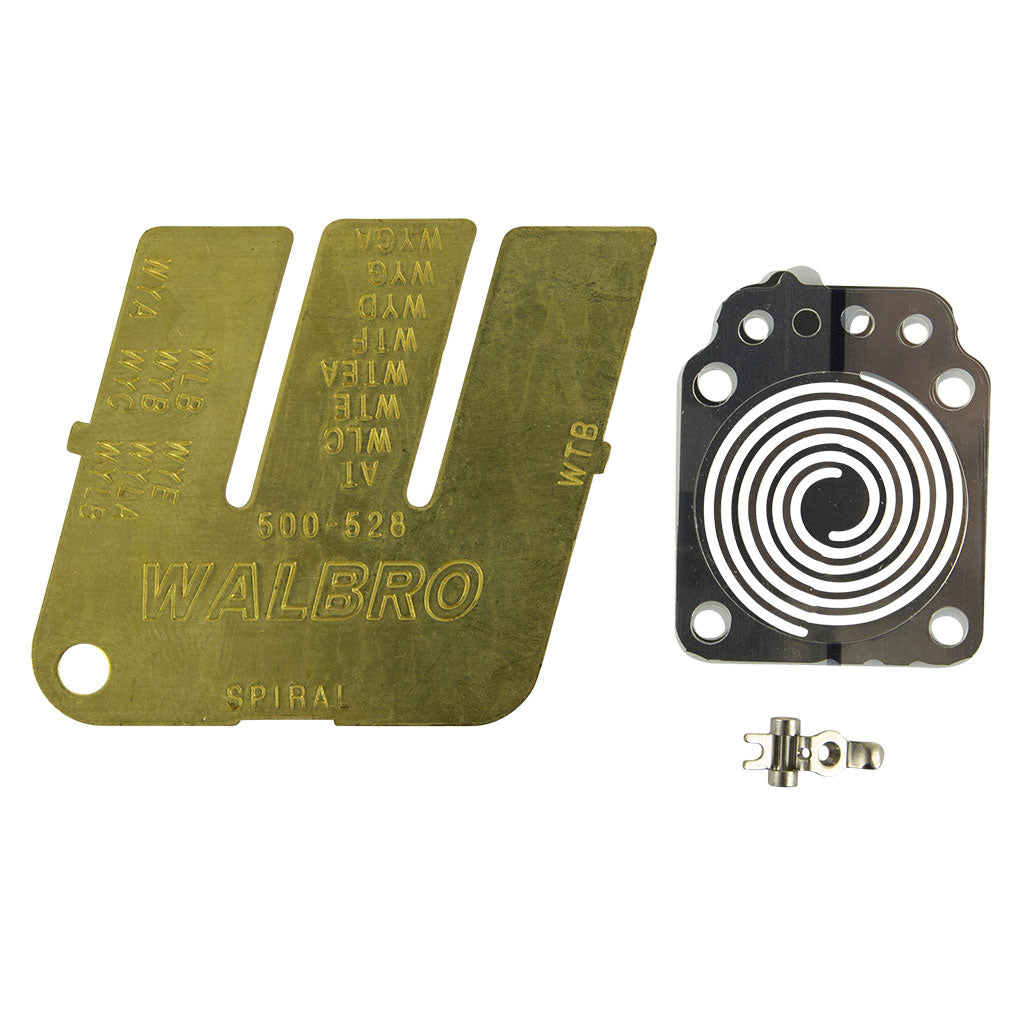

WALBRO K1-WYTA SPIRAL DIAPHRAGM UPGRADE KIT

Specifications

Description: Genuine Walbro K1-WYTA Spiral Metering Diaphragm Upgrade Kit - Includes Brass "W"

Gauge

Editorial: Walbro's patented spiral metering diaphragm upgrade kit allows you to convert your

carburettor from the traditional rubber metering diaphragm to Walbro's ethanol

compliant spiral metering diaphragm. The new spiral metering diaphragm is

impervious to the effects of Ethanol and additives in modern fuels and does not

deteriorate with age.

Replaces OEM: Walbro K1-WYTA

Fits: WT-942-1, WT-943-1, WT-944-1, WT-946-1, WT-947, WT-948-1, WT-949, WT-951, WT-954,

WT-956-1, WT-957, WT-958, WT-959, WT-960, WT-961, WT-962, WT-963, WT-964-1, WT-965,

WT-966, WT-967, WT-968-1, WT-969, WT-970-1, WT-971, WT-972, WT-973-1, WT-974,

WT-975-1, WT-976, WT-977, WT-978, WT-979, WT-980-1, WT-981-1, WT-982, WT-983,

WT-984-1, WT-985-1, WT-986, WT-991-1, WT-992-1, WT-993-1, WT-994, WT-996-1, WT-999,

WT-1000, WT-1001, WT-1002, WT-1003, WT-1004, WT-1006, WT-1007, WT-1008-1,

WT-1009-1, WT-1010, WT-1011-1, WT-1012-1, WT-1013, WT-1014-1, WT-1015, WT-1016-1,

WT-1017-1, WT-1018-1, WT-1019-1, WT-1020-1, WT-1021, WT-1022-1, WT-1023, WT-1024,

WT-1025, WT-1026-1, WT-1027-1, WT-1028-1, WT-1030-1, WT-1031-1, WT-1034-1,

WT-1036-1, WT-1037-1, WT-1038, WT-1039-1, WT-1041-1, WT-1042-1, WT-1043, WT-1045,

WT-1046-1, WT-1047, WT-1048-1, WT-1049-1, WT-1050-1, WT-1051, WT-1053-1, WT-1054,

WT-1055-1, WT-1056, WT-1057, WT-1058-1, WT-1059-1, WT-1061-1, WT-1062, WT-1063,

WT-1064A, WT-1065, WT-1066-1, WT-1067, WT-1068-1, WT-1069, WT-1070, WT-1071,

WT-1072-1, WT-1073, WT-1074, WT-1075, WT-1076, WT-1077, WT-1078, WT-1080, WT-1081,

WT-1082, WT-1084-1, WT-1085-1, WT-1086-1, WT-1087, WT-1089-1, WT-1090, WT-1091-1,

WT-1092-1, WT-1093-1, WT-1094, WT-1095, WT-1097, WT-1098, WT-1099-1, WT-1100,

WT-1102-1, WT-1103, WT-1105, WT-1106, WT-1108-1, WT-1109-1, WT-1110-1, WT-1111-1,

WT-1112, WT-1113, WT-1115, WT-1116-1, WT-1117, WT-1118, WT-1119, WT-1120, WT-1121,

WT-1122, WT-1123-1, WT-1124, WT-1125-1, WT-1126, WT-1127, WT-1128, WT-1129-1,

WT-1130-1, WT-1131-1, WT-1132-1, WT-1133-1, WT-1134, WT-1135, WT-1136, WT-1137,

WT-1138-1, WT-1139-1, WT-1141-1, WT-1142, WT-1143-1, WT-1145-1, WT-1147-1,

WT-1148-1, WT-1149-1, WT-1150-1, WT-1151-1, WT-1153-1, WT-1154-1, WT-1155-1,

WT-1156-1, WT-1157, WT-1158, WT-1159-1, WT-1160-1, WT-1161, WT-1163-1, WT-1164-1,

WT-1166, WT-1167, WT-1168-1, WT-1169, WT-1170-1, WT-1172, WT-1174, WT-1178,

WT-1179-1, WT-1180-1, WT-1181, WT-1182, WT-1183, WT-1185, WT-1187-1, WT-1188,

WT-1189, WT-1192-1, WT-1193, WT-1196, WT-1197, WT-1198, WT-1199, WT-1200, WT-1202,

WT-1204, WT-1207, WT-1208, WT-1209-1, WT-1212-1, WT-1213-1, WT-1215-1, WT-1217,

WT-1218, WT-1219, WT-1220, WT-1221, WT-1222, WT-1223-1, WT-1224, WT-1225-1,

WT-1228, WT-1230, WT-1231, WT-1232, WT-1233, WT-1234, WT-1239, WT-1240, WT-189B,

WT-76C, WTA-30-1, WTA-32-1, WTA-33-1, WTA-34, WTA-35-1, WTA-36, WZ-1, WZ-2, WZ-3-1,

WZ-4-1, WZ-5-1, WZ-6-1, WZ-7-1, WZ-8-1, WZ-9-1, WZ-10-1, WZ-11-1, WZ-12-1, WZ-13-1,

WZ-14-1, WZ-15-1, WZ-16, WZ-16-1, WZ-17-1, WZ-18-1, WZ-19-1, WZ-20-1, WZ-21-1,

WZ-22-1, WZ-23-1, WZ-24-1, WZ-25-1, WZ-26-1, WZ-27-1, WZ-28-1, WZ-29-1, WZ-30-1,

WZ-31-1, WZ-32, WZ-33-1, WZ-34-1, WZ-35-1, WZ-36-1, WZ-37-1, WZ-38-1, WZ-39-1,

WZ-40-1, WZ-41-1, WZ-42-1, WZ-43-1, WZ-44-1, WZ-45-1, WZ-46-1, WZ-47-1, WZ-48 and

WZ-49 carburettor models. Please refer to the notes below.

WT-221-1, WT-223-1, WT-224-1, WT-225-1, WT-226-1, WT-229-1, WT-230-1, WT-231-1,

WT-232-1, WT-233-1, WT-234-1, WT-235-1, WT-237-1, WT-238-1, WT-241-1, WT-242-1,

WT-245-1, WT-246-1, WT-249-1, WT-250-1, WT-251-1, WT-257-1, WT-258-1, WT-260-1,

WT-263-1, WT-266-1, WT-267-1, WT-272-1, WT-273-1, WT-274-1, WT-275-1, WT-276-1,

WT-277-1, WT-279-1, WT-281-1, WT-282-1, WT-284-1, WT-286-1, WT-287-1, WT-288-1,

WT-289-1, WT-290-1, WT-291-1, WT-294-1, WT-295-1, WT-297-1, WT-298-1, WT-300-1,

WT-301-1, WT-302-1, WT-303-1, WT-305-1, WT-308-1, WT-309-1, WT-310-1, WT-311-1,

WT-312-1, WT-315-1, WT-316, WT-322-1, WT-324-1, WT-327-1, WT-331-1, WT-332-1,

WT-333-1, WT-337-1, WT-338-1, WT-339-1, WT-340-1, WT-341-1, WT-344-1, WT-345-1,

WT-346-1, WT-347-1, WT-348-1, WT-349-1, WT-350-1, WT-354-1, WT-361-1, WT-363-1,

WT-365-1, WT-366-1, WT-367-1, WT-368-1, WT-370-1, WT-372-1, WT-373-1, WT-378-1,

WT-380-1, WT-383-1, WT-385-1, WT-387-1, WT-390-1, WT-391-1, WT-394, WT-395,

WT-398-1, WT-399-1, WT-400-1, WT-402-1, WT-405-1, WT-406-1, WT-408-1, WT-408-1,

WT-410-1, WT-411, WT-414-1, WT-415-1, WT-416-1, WT-417-1, WT-418-1, WT-421-1,

WT-424-1, WT-426-1, WT-427-1, WT-428-1, WT-429-1, WT-430-1, WT-433-1, WT-434-1,

WT-435, WT-436-1, WT-437-1, WT-438-1, WT-439-1, WT-441-1, WT-442-1, WT-446-1,

WT-450-1, WT-451-1, WT-453-1, WT-454-1, WT-455-1, WT-456-1, WT-457-1, WT-458-1,

WT-460-1, WT-462-1, WT-463-1, WT-465-1, WT-466-1, WT-467-1, WT-470-1, WT-472-1,

WT-475-1, WT-477-1, WT-481-1, WT-483, WT-484-1, WT-486-1, WT-487-1, WT-489-1,

WT-492-1, WT-494-1, WT-495-1, WT-497-1, WT-499-1, WT-500-1, WT-501-1, WT-504-1,

WT-506-1, WT-508-1, WT-509-1, WT-511-1, WT-512-1, WT-513-1, WT-514-1, WT-516-1,

WT-517-1, WT-518-1, WT-520-1, WT-525-1, WT-525-1, WT-527-1, WT-529-1, WT-530-1,

WT-531-1, WT-534-1, WT-535, WT-536-1, WT-538-1, WT-539-1, WT-540-1, WT-542-1,

WT-543-1, WT-544-1, WT-545-1, WT-547-1, WT-548-1, WT-549-1, WT-550-1, WT-551-1,

WT-552-1, WT-553-1, WT-554, WT-555-1, WT-557-1, WT-558-1, WT-559-1, WT-560-1,

WT-561-1, WT-562-1, WT-565-1, WT-566-1, WT-567-1, WT-568-1, WT-569-1, WT-570-1,

WT-571-1, WT-572-1, WT-573-1, WT-574-1, WT-575-1, WT-576-1, WT-577-1, WT-578-1,

WT-579-1, WT-580-1, WT-580-1, WT-582-1, WT-583-1, WT-584-1, WT-586-1, WT-587-1,

WT-588-1, WT-589-1, WT-590-1, WT-591-1, WT-592-1, WT-593-1, WT-594-1, WT-595,

WT-596-1, WT-597-1, WT-598-1, WT-599-1, WT-600-1, WT-602-1, WT-606-1, WT-607-1,

WT-609-1, WT-610-1, WT-611, WT-612-1, WT-614-1, WT-616-1, WT-617-1, WT-618-1,

WT-619-1,

WT-622-1, WT-624-1, WT-625-1, WT-626-1, WT-627-1, WT-628-1, WT-629-1, WT-630-1,

WT-631-1, WT-632-1, WT-634-1, WT-635-1, WT-636-1, WT-637, WT-638-1, WT-639-1,

WT-640-1, WT-641-1, WT-642-1, WT-646-1, WT-647-1, WT-648-1, WT-649-1, WT-650-1,

WT-652, WT-656-1, WT-657-1, WT-659, WT-660-1, WT-661-1, WT-662-1, WT-664-1,

WT-665-1, WT-666-1, WT-667-1, WT-669-1, WT-670-1, WT-671-1, WT-673-1, WT-674-1,

WT-675-1, WT-678-1, WT-679-1, WT-680-1, WT-681, WT-682-1, WT-684-1, WT-685-1,

WT-686-1, WT-687-1, WT-724-1 WT-688-1, WT-689-1, WT-690-1, WT-691-1, WT-692-1,

WT-693-1, WT-695-1, WT-695-1, WT-697-1, WT-698-1, WT-699-1, WT-700-1, WT-701-1,

WT-702-1, WT-705-1, WT-706-1, WT-707-1, WT-708-1, WT-709-1, WT-710-1, WT-711-1,

WT-712-1, WT-713-1, WT-716-1, WT-717-1, WT-718-1, WT-719, WT-720-1, WT-721-1,

WT-722-1, WT-722-1, WT-725-1, WT-726-1, WT-727-1, WT-728-1, WT-729-1, WT-731-1,

WT-732-1, WT-737-1, WT-738-1, WT-739-1, WT-742-1, WT-743-1, WT-745-1, WT-746-1,

WT-747-1, WT-748-1, WT-749-1, WT-750-1, WT-751-1, WT-752-1, WT-753-1, WT-754-1,

WT-755-1, WT-756-1, WT-757-1, WT-758-1, WT-759-1, WT-760-1, WT-761-1, WT-762-1,

WT-763-1, WT-764-1, WT-766-1, WT-767, WT-769-1, WT-772-1, WT-774-1, WT-776-1,

WT-777-1, WT-778-1, WT-779-1, WT-780-1, WT-781-1, WT-782-1,

WT-783-1, WT-784-1, WT-785-1, WT-786-1, WT-787-1, WT-788-1, WT-789-1, WT-790,

WT-791, WT-792-1, WT-793-1, WT-794-1, WT-795-1, WT-796-1, WT-797-1, WT-798-1,

WT-799-1, WT-801-1, WT-802-1, WT-803-1, WT-804-1, WT-805-1, WT-807-1, WT-808-1,

WT-809, WT-811-1, WT-812-1, WT-814-1, WT-815-1, WT-816-1, WT-817-1, WT-818-1,

WT-818-1, WT-820-1, WT-823-1, WT-825-1, WT-826-1, WT-827-1, WT-828, WT-829-1,

WT-830-1, WT-831-1, WT-832-1, WT-834-1, WT-835-1, WT-836-1, WT-837, WT-838-1,

WT-839-1, WT-840-1, WT-841-1, WT-843-1, WT-844-1, WT-845-1, WT-846-1, WT-847-1,

WT-850-1, WT-851, WT-852-1, WT-853-1, WT-854, WT-855-1, WT-856-1, WT-857-1,

WT-858-1, WT-860-1, WT-861-1, WT-862-1, WT-863-1, WT-864-1, WT-865-1, WT-866-1,

WT-867, WT-868, WT-869-1, WT-870-1, WT-871, WT-872-1, WT-873-1, WT-874, WT-875-1,

WT-876, WT-877, WT-878-1, WT-879-1, WT-880, WT-881, WT-885, WT-886, WT-887, WT-888,

WT-889-1, WT-890, WT-891-1, WT-892, WT-893, WT-895-1, WT-896-1, WT-897-1, WT-898,

WT-899-1, WT-900-1, WT-901-1, WT-902-1, WT-903, WT-904, WT-905-1, WT-906-1, WT-907,

WT-908-1, WT-909-1, WT-910-1, WT-912, WT-913, WT-914, WT-915-1, WT-916, WT-917-1,

WT-918-1, WT-920, WT-921, WT-924-1, WT-925-1, WT-927-1, WT-928, WT-929-1, WT-930-1,

WT-931, WT-932-1, WT-933, WT-934-1, WT-935-1, WT-936-1, WT-937-1, WT-938, WT-941-1,

Features: A membrane with a high grade teflon film in the centre and a stainless steel spiral

diaphragm - impervious to the effects of Ethanol and other additives found in

modern fuels.

Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to

use the new spiral diaphragm kits.

All parts (except the metering lever) are contained in a clever installation sleeve

to make assembly quicker and easier (refer to notes below).

Please Note: Warning - These parts are extremely durable inside the carburettor but fragile to

handle - DO NOT bend or crease the membrane when handling or during assembly! The

stainless steel spiral is more forgiving but care is still required when handling

it. The metering lever must be replaced with the new one supplied, please reuse the

old metering lever pin. For a 5-pack version of this upgrade kit without the brass

"W" gauge use our part number K6-WYTA .

Note: Fitting instructions -

1. Remove metering cover, old diaphragm and gasket.

2. Remove the metering lever and replace with the new one supplied, reusing the old

metering lever pin.

3. Reset the metering lever height using the updated version of the brass "W" gauge

part number OMK500-528 which is included in this spiral diaphragm kit. The

adjustment point on the brass gauge is on the bottom, the indentation you need to

set the lever height is below the word "Spiral".

4. Install the new gaskets and diaphragm onto the carburettor while still contained

inside the installation sleeve (Important - install onto the two metal pins, making

sure that the word "TOP" printed on the installation sleeve is facing up).

5. Hold the installation sleeve with one hand and put the metering cover on over

the top to hold it down.

6. Install the four screws and start them by just one turn each.

7. Then remove the clip off the end and pull the installation sleeve out, then

torque the screws down normally.

Footnote: When comparing this fitment application information to your carburettor model

please disregard all letters (A, B, C) and -1 that may be at the end of your

carburetor model number.

Brand: Genuine Walbro,

Product Line: Diaphragm and Gasket Set, Gasket and Diaphragm Set, Metering Diaphragm and Gasket

kit - Spiral, Spiral Metering Diaphragm and Gasket Set,

Installation

We are currently updating all installation instructions so please contact us if you need installation assistance whilst we collate additional information.
