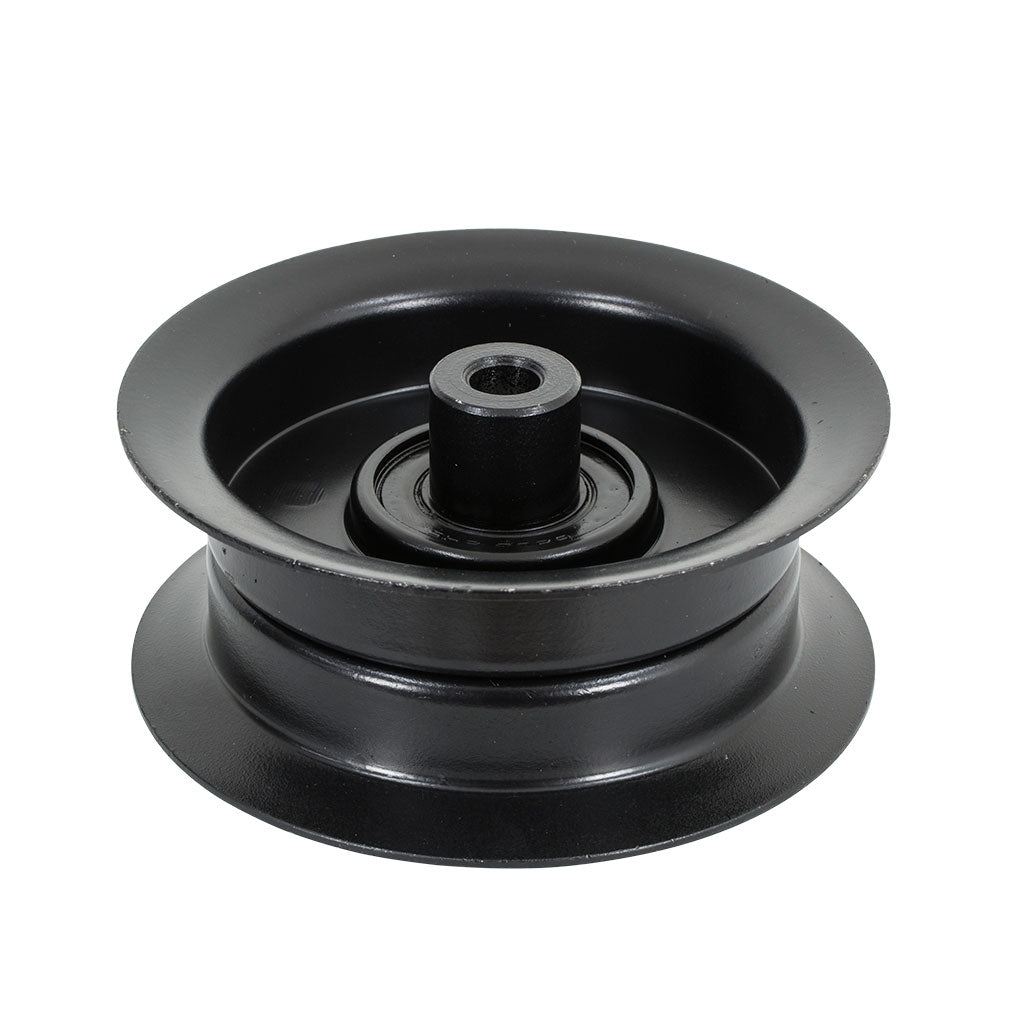

TORO DECK IDLER PULLEY

Description: TORO Deck Idler Pulley

Replaces OEM: Replaces TORO OEM 88-5630

Pulley Dimension A: (inches) 4 1/8

Pulley Dimension A: (mm) 104.77

Pulley Dimension C: (inches) 3/8

Pulley Dimension C: (mm) 9.52

Pulley Dimension D: (inches) 1 1/2

Pulley Dimension D: (mm) 38.1

Fits: 34" (863 mm) cut TORO TimeCutter MX 3450* (model 74750 years 2015 - 2016) zero turn

radius ride-on models as the deck idler pulley, (2 required per unit).

Fits: 38" (965 mm) cut TORO XL 380H (model 71246 years 2005 - 2007 and model 71252 years

2008 - 2010), XLS 380 (model 71254 years 2011 - 2013) ride-on lawn mower models as

the deck idler pulley, (1 required per unit) and TimeCutter Z, 14-38Z (model 74301

and 74402 year 2003) zero turn radius ride-on models as the deck idler pulley, (2

required per unit).

Fits: 42" (1067 mm) cut TORO XLS 420T (model 71255 years 2011 - 2013) ride-on lawn mower

models as the deck idler pulley, (1 required per unit) and TimeCutter Z, 16-42Z

(model 74403 year 2003) zero turn radius ride-on models as the deck idler pulley,

(2 required per unit).

Fits: 44" (1118 mm) cut TORO XL series cutter deck (deck model 79107 year 1996 ser #

6900001 - 6999999), XL 440H (deck model 79110 years 2005 onwards with ser #

250000001 - 310999999) and XL 440H (unit model 71429 year 2005) ride-on lawn mower

models as the deck idler pulley, (2 required per unit).

Standard Pack Quantity: 1

Please Note: For TORO TimeCutter MX3450 models listed above, to complete the idler pulley set

use with our PUL7430 (replaces OEM 106-2175) deck flat idler pulley x 1.

Brand: Toro - Non Genuine,

Product Line: Deck Idler Pulley,
