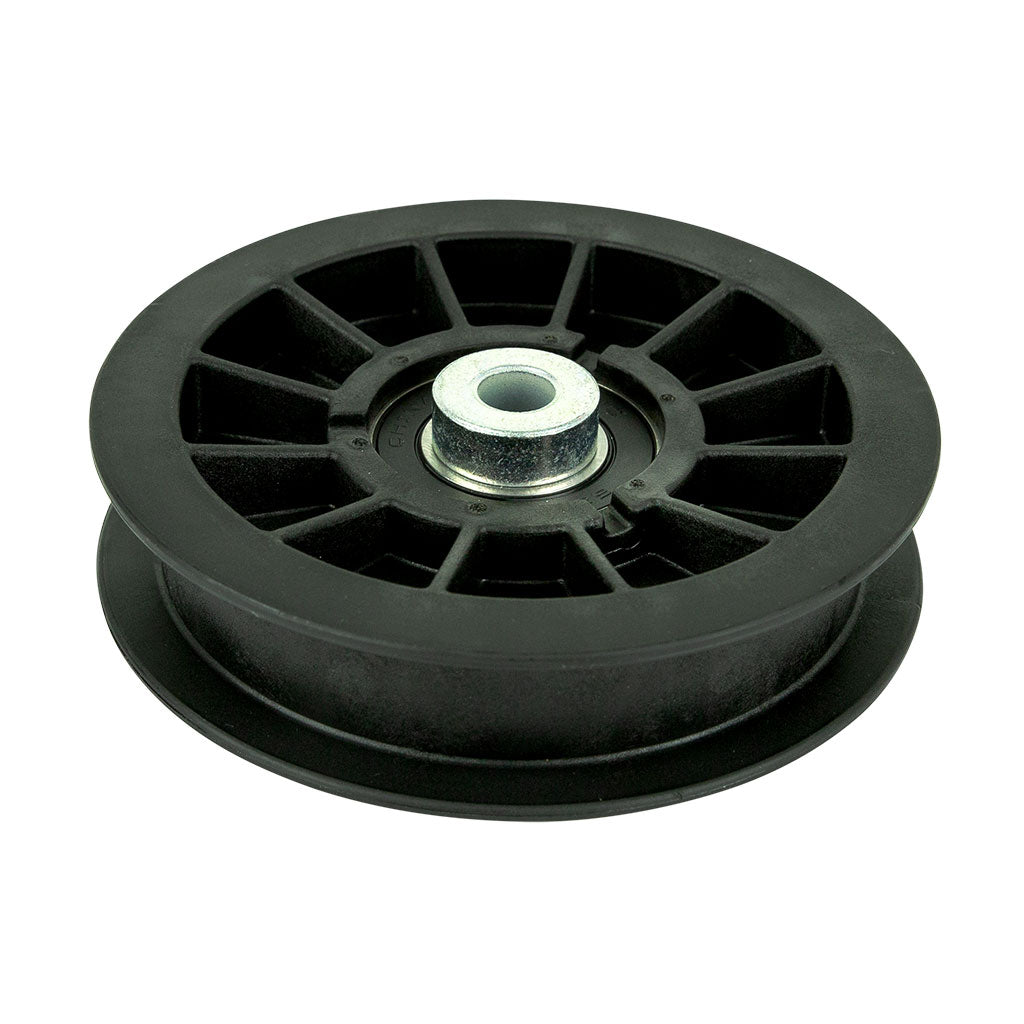

TORO TRANSMISSION FLAT IDLER PULLEY SUITS TITAN / Z MASTER

Description: Non-Genuine TORO TITAN, Z Master, Transmission Nylon Flat Idler Pulley

Replaces OEM: 109-3397

Deck (cm) 122 cm, 132.1 cm, 137.2 cm, 152.4 cm

Deck (inches) 48", 52", 54", 60"

Deck (mm) 1220 mm, 1320 mm, 1370 mm, 1524 mm

Height: (inches) 1 1/16"

Height: (mm) 26.98 mm

Inside Diameter: (inches) 3/8"

Inside Diameter: (mm) 9.52 mm

Outside Diameter: (inches) 4 9/64"

Outside Diameter: (mm) 105.17 mm

Pulley Dimension A: (inches) 4 9/64"

Pulley Dimension A: (mm) 105.17 mm

Pulley Dimension B: (inches) 3 1/2"

Pulley Dimension B: (mm) 88.9 mm

Pulley Dimension C: (inches) 3/8"

Pulley Dimension C: (mm) 9.52 mm

Pulley Dimension D: (inches) 3/4"

Pulley Dimension D: (mm) 19.05 mm

Pulley Dimension T: (inches) .106"

Pulley Dimension T: (mm) 2.69 mm

Fits: 48" (1220 mm) cut TORO TITAN MX 4880 (MX4880 model 74871 [2] year 2013), Z 4800

(Z4800 models 74812 [2] year 2007 and 74813 [2] year 2008), ZX 4800 (ZX4800 models

74861 [2] years 2015 to 2016 and 74912 [2] year 2010) ZX 4820 (ZX4820 model 74920

[2] years 2011 to 2013), Z Master (Commercial 2000 Series model 74141 [1] years

2015 to 2016) zero turn radius (ZTR) ride-on models. Please Note: The brackets

after model numbers indicate quantity required per unit [1] = 1 required per unit,

[2] = 2 required per unit.

Fits: 52" (1320 mm) cut TORO TITAN Z 5200 (Z5200 models 74814 [2] year 2007 and 74815 [2]

year 2008), Z Master (Commercial 2000 Series model 74143 [1] years 2014 to 2016)

zero turn radius (ZTR) ride-on models. Please Note: The brackets after model

numbers indicate quantity required per unit [1] = 1 required per unit, [2] = 2

required per unit.

Fits: 54" (1370 mm) cut TORO TITAN MX 5400 (MX5400 models 74872 year 2013 and 74892 years

2015 to 2016), ZX 5400 (ZX5400 model 74914 years 2009 to 2010), ZX 5420 (ZX5420

model 74924 years 2011 to 2013) zero turn radius (ZTR) ride-on models (2 required

per unit).

Fits: 60" (1524 mm) cut TORO TITAN MX 6080 (MX6080 model 74873 years 2012 to 2013), ZX

6020 (ZX6020 model 74843 years 2011 to 2013), ZX 6050 (ZX6050 model 74824 years

2009 to 2010) zero turn radius (ZTR) ride-on models (2 required per unit).

Features: Glass filled nylon.

Quality double sealed roller bearing.

Standard Pack Quantity: 1

Please Note: The brackets after model numbers indicate quantity required per unit [1] = 1

required per unit, [2] = 2 required per unit.

Brand: TORO,

Product Line: Flat Idler Pulley, Hydro Idler Pulley, Idler Pulley - Flat, Pulley - Flat Idler,

Transmission Idler Pulley,
