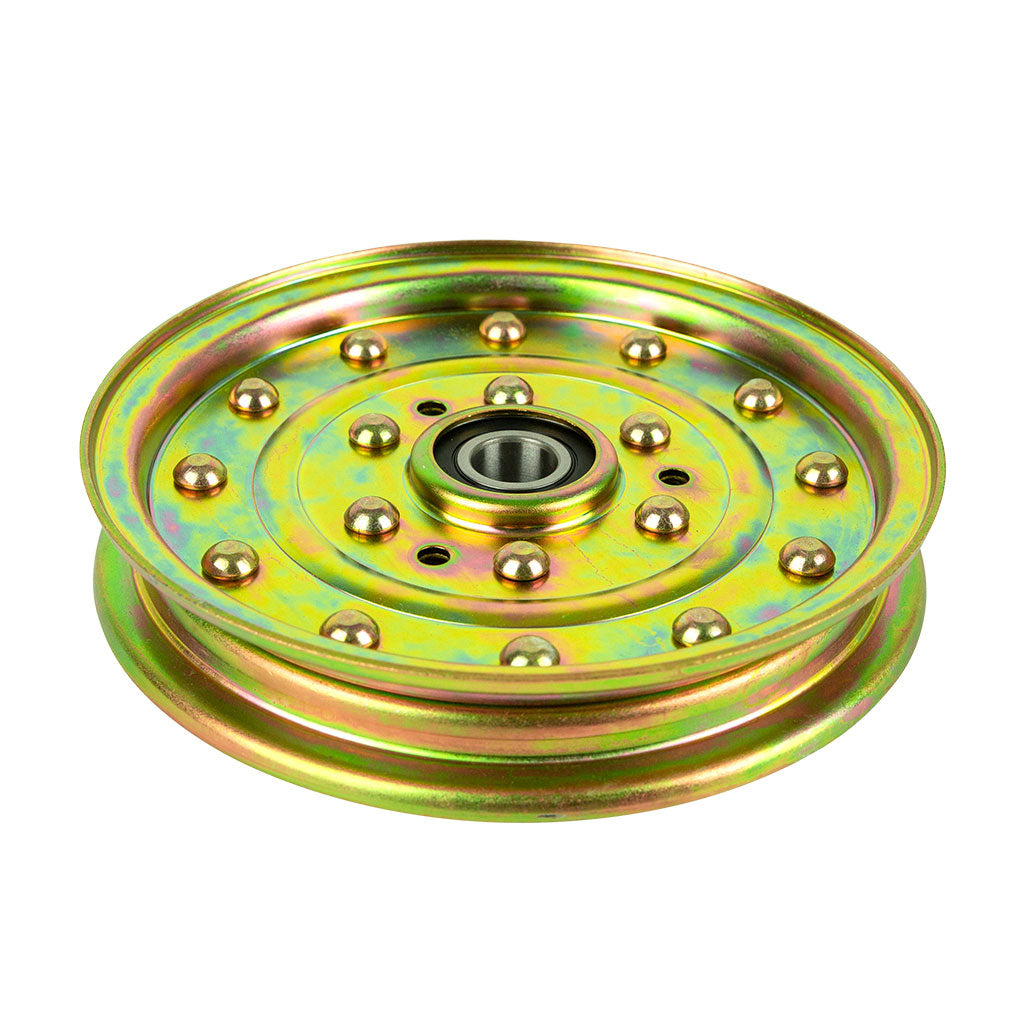

Description: Non-Genuine TORO Z Master - Deck, Steel Flat Idler Pulley
Replaces OEM: TORO 1-633109, 116-4667, 132-9424
Deck (cm) 122 cm, 132.1 cm, 152.4 cm, 157.5 cm, 183 cm
Deck (inches) 48", 52", 60", 62", 72"
Deck (mm) 1220 mm, 1320 mm, 1524 mm, 1575 mm, 1828 mm
Height: (inches) 1 3/16"
Height: (mm) 30.16 mm
Inside Diameter: (inches) 21/32"
Inside Diameter: (mm) 16.66 mm
Outside Diameter: (inches) 6 3/4"
Outside Diameter: (mm) 171.45 mm
Pulley Dimension A: (inches) 6 3/4"
Pulley Dimension A: (mm) 171.45 mm
Pulley Dimension B: (inches) 6 1/4"
Pulley Dimension B: (mm) 158.75 mm
Pulley Dimension C: (inches) 21/32"
Pulley Dimension C: (mm) 16.66 mm
Pulley Dimension D: (inches) 3/4"
Pulley Dimension D: (mm) 19.05 mm
Pulley Dimension T: (inches) .080"
Pulley Dimension T: (mm) 20.32 mm
Fits: 48" (1220 mm) cut TORO Z Master Z450 (model 74417 [2] years 2005 to 2008), Z453
(models 74417 [2] year 2007 and 74417CP [2] years 2007 to 2008) side-discharge zero
turn radius (ZTR) ride-on models. Please Note: The brackets after model numbers
indicate quantity required per unit [2] = 2 required per unit.
Fits: 52" (1320 mm) cut TORO Z Master Professional 7000 Series (model 74266 [3] years
2013 to 2019), Z450 (model 74416 [2] years 2007 to 2008), Z453 (model 74416CP [2]
year 2008), Z500 (model 74237CP [3] year 2008), Z528 (models 74237 [3] years 2007
to 2008 and 74237CP [3] year 2008), Z560 (model 74261 [3] year 2006), Z580-D (model
74266CP [3] years 2008 to 2009 and 2011) side-discharge zero turn radius (ZTR)
ride-on models. Please Note: The brackets after model numbers indicate quantity
required per unit [2] = 2 required per unit, [3] = 3 required per unit.
Fits: 60" (1524 mm) cut TORO Z Master Professional 6000 Series (model 74267CP [3] year
2012), Professional 7000 Series (model 74267 [3] years 2013 to 2019), Z500 (model
74238CP [3] year 2008), Z528 (models 74238 [3] years 2007 to 2008), 74238P [3]
years 2007 to 2008), Z557 (model 74246 [3] year 2005), Z558 (model 74272CP [3] year
2008), Z560 (models 74262 [3] year 2006 and 74262CP [3] year 2008), Z580 (model
74253CP [3] year 2008), Z580-D (model 74267CP [3] years 2008 to 2010), Z587L (model
74251 [3] years 2004 to 2006), Z588E (model 74255 [3] years 2004 to 2007), Z590-D
(models 74268 [2] year 2008 and 74268CP [2] year 2008), Z593-D (model 74265 [3]
year 2006), Z597-D (model 74268 [2] year 2007) side-discharge zero turn radius
(ZTR) ride-on models. Please Note: The brackets after model numbers indicate
quantity required per unit [2] = 2 required per unit, [3] = 3 required per unit.
Fits: 62" (1575 mm) cut TORO Z Master Z597-D (model 74280TE [2] years 2006 to 2007)
rear-discharge zero turn radius (ZTR) ride-on models. Please Note: The brackets
after model numbers indicate quantity required per unit [2] = 2 required per unit.
Fits: 72" (1828 mm) cut TORO Z Master Professional 7000 Series (models 74274 [3] years
2013 to 2019 and 74274CP [3] year 2012), Z550 (model 74273CP [3] year 2008), Z557
(models 74257 [3] year 2005 and 74263 [3] year 2006), Z560 (models 74263 [3] year
2007 and 74263CP [3] year 2008), Z590-D (model 74269CP [2] year 2008), Z595-D
(model 74274 [3] year 2007), Z580-D (models 74274 [3] year 2010 and 74274CP [3]
years 2010 to 2011), Z587L (model 74252 [3] years 2004 to 2006), Z588E (model 74256
[3] year 2006), Z-590-D (model 74269 [2] year 2008), Z597-D (models 74269 [2] years
2005 to 2007 and 74269CP [2] years 2007 to 2008) side-discharge zero turn radius
(ZTR) ride-on models. Please Note: The brackets after model numbers indicate
quantity required per unit [2] = 2 required per unit, [3] = 3 required per unit.
Features: Pressed and riveted Steel.
Quality double sealed roller bearing.
Standard Pack Quantity: 1
Please Note: The brackets after model numbers indicate quantity required per unit [2] = 2
required per unit, [3] = 3 required per unit.
Brand: TORO,
Product Line: Deck Idler Pulley, Flat Idler Pulley, Idler Pulley - Deck, Idler Pulley - Flat,
Pulley - Flat Idler,
